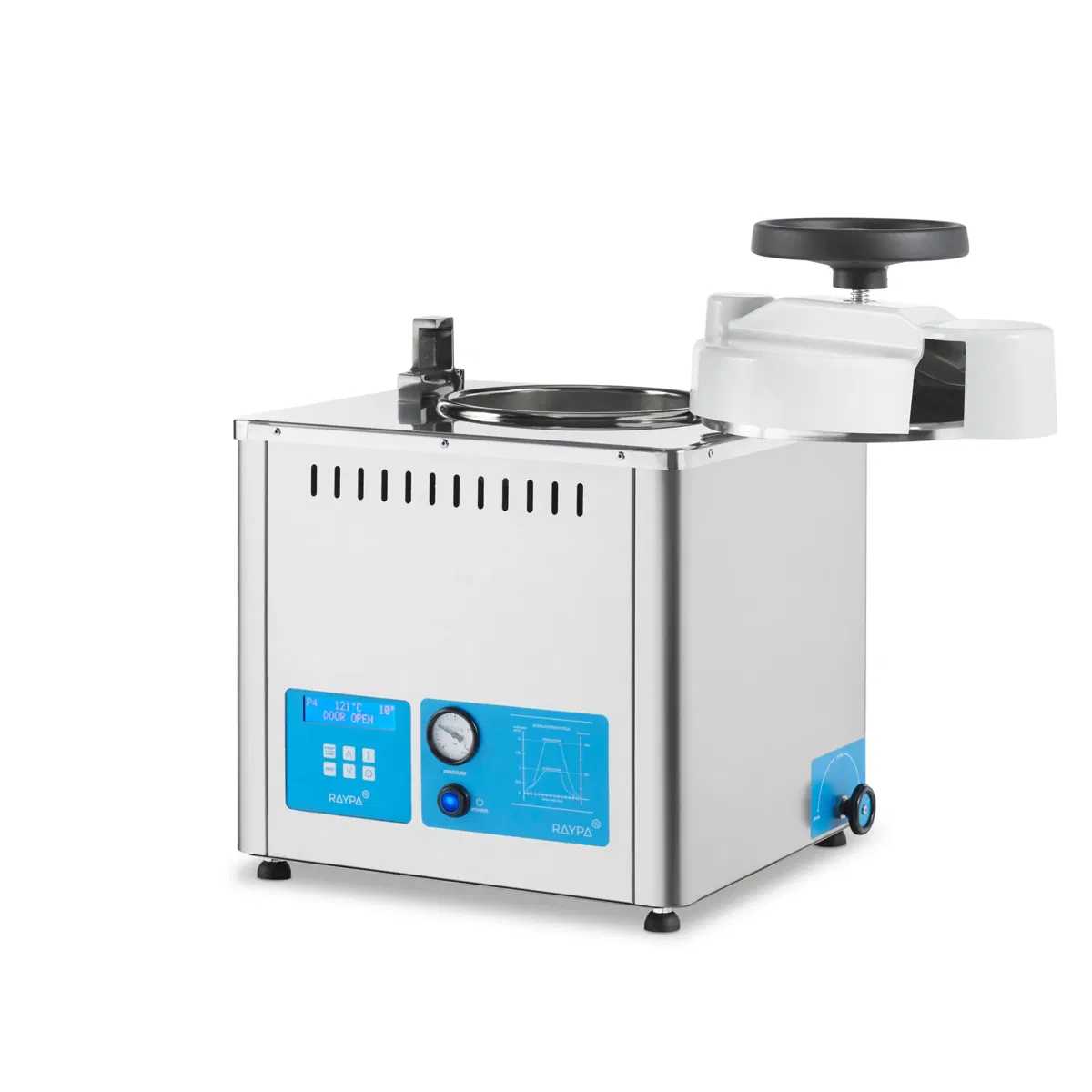

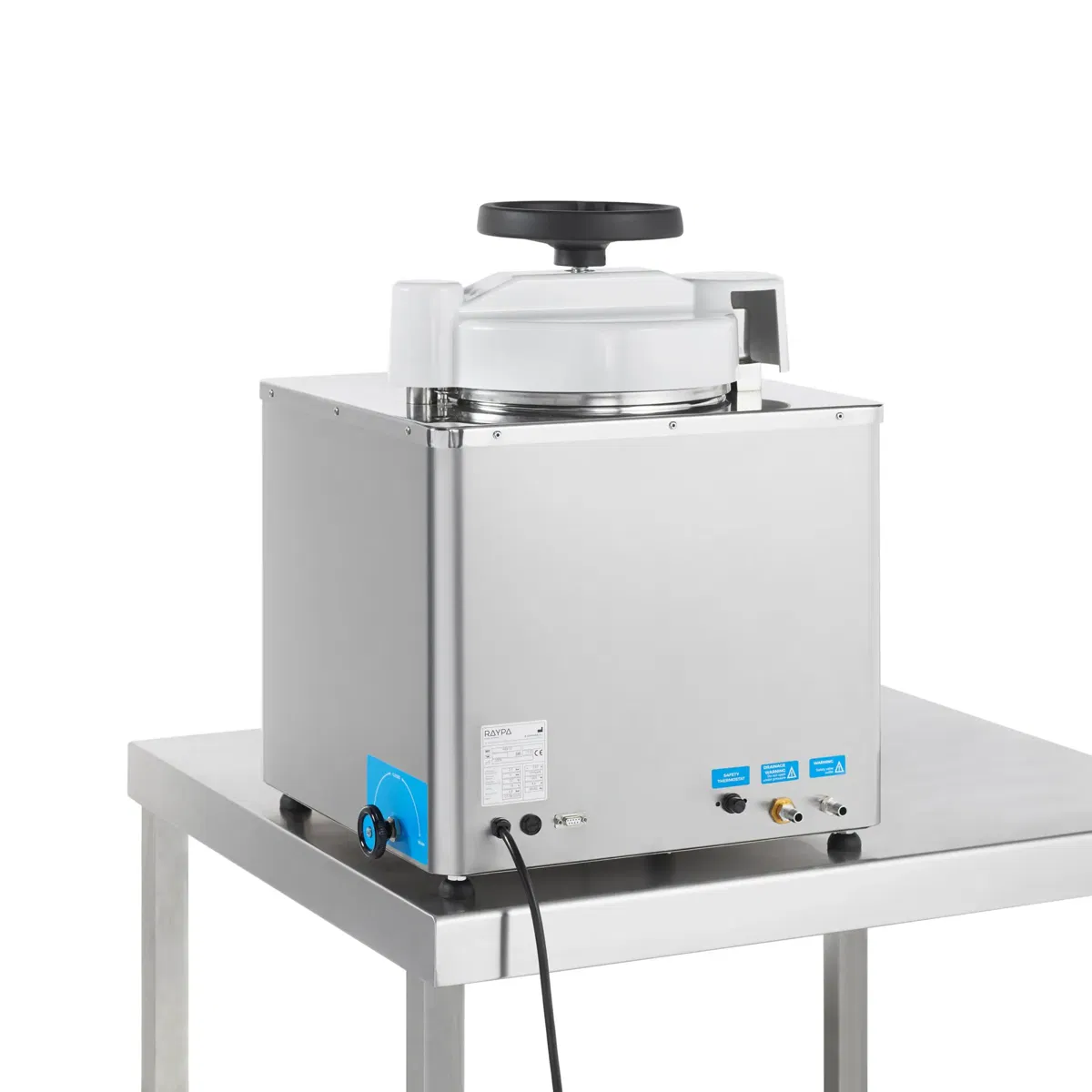

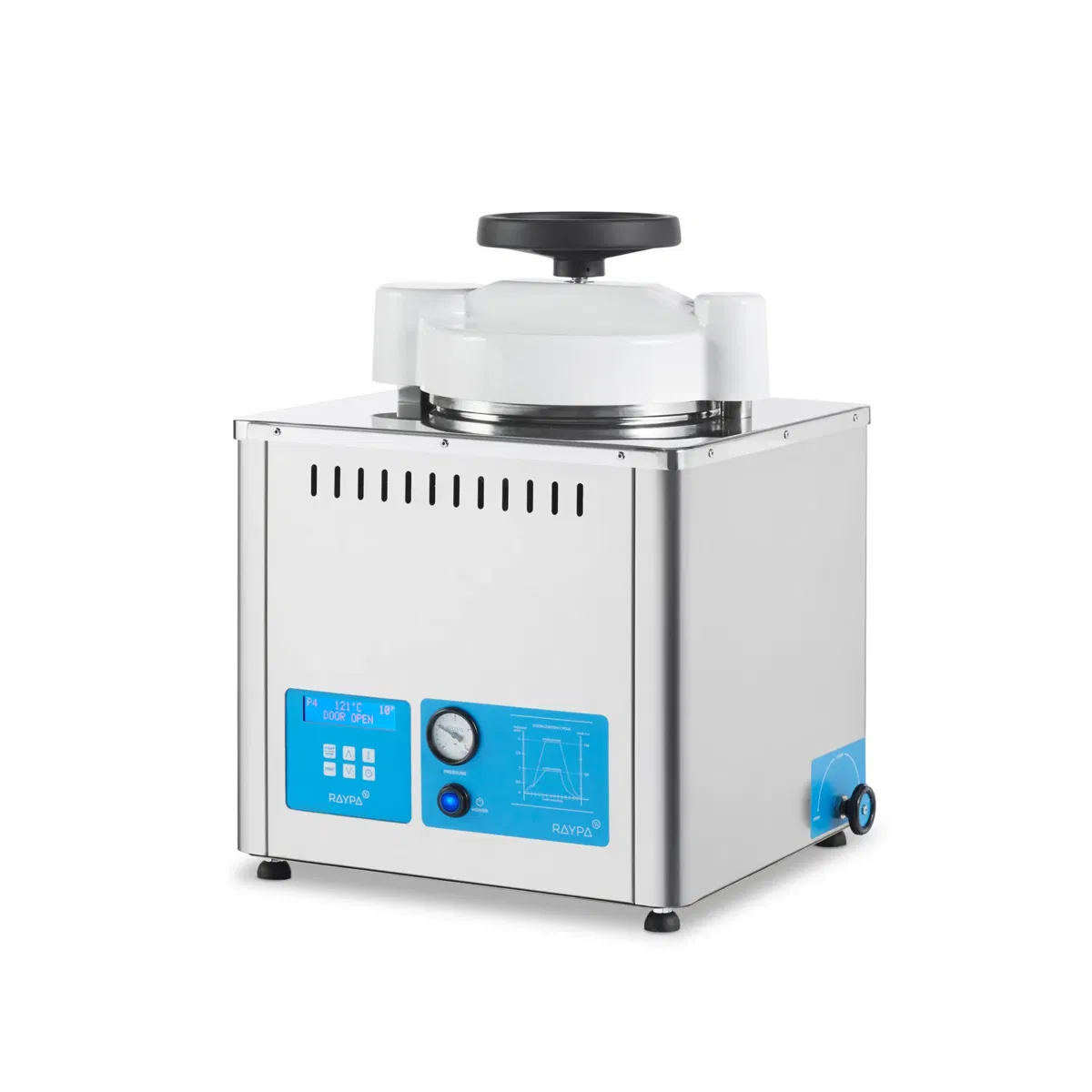

RAYPA Top-loading Benchtop Autoclave without Drying AVS-N Series
Price range: $2,926.00 through $6,883.80
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AVS-N Series top-loading benchtop autoclaves without drying are compact, economical and easy to use.
- Economical, cost-effective, and with robust performance
- Limited consumption of laboratory resources
- Suitable for the sterilization of a wide range of solids as well as liquids
Top-loading benchtop laboratory autoclaves without drying
The AVS-N Series top-loading benchtop autoclaves without drying are designed to meet the basic sterilization requirements of educational and research laboratory facilities, streamlining the process.

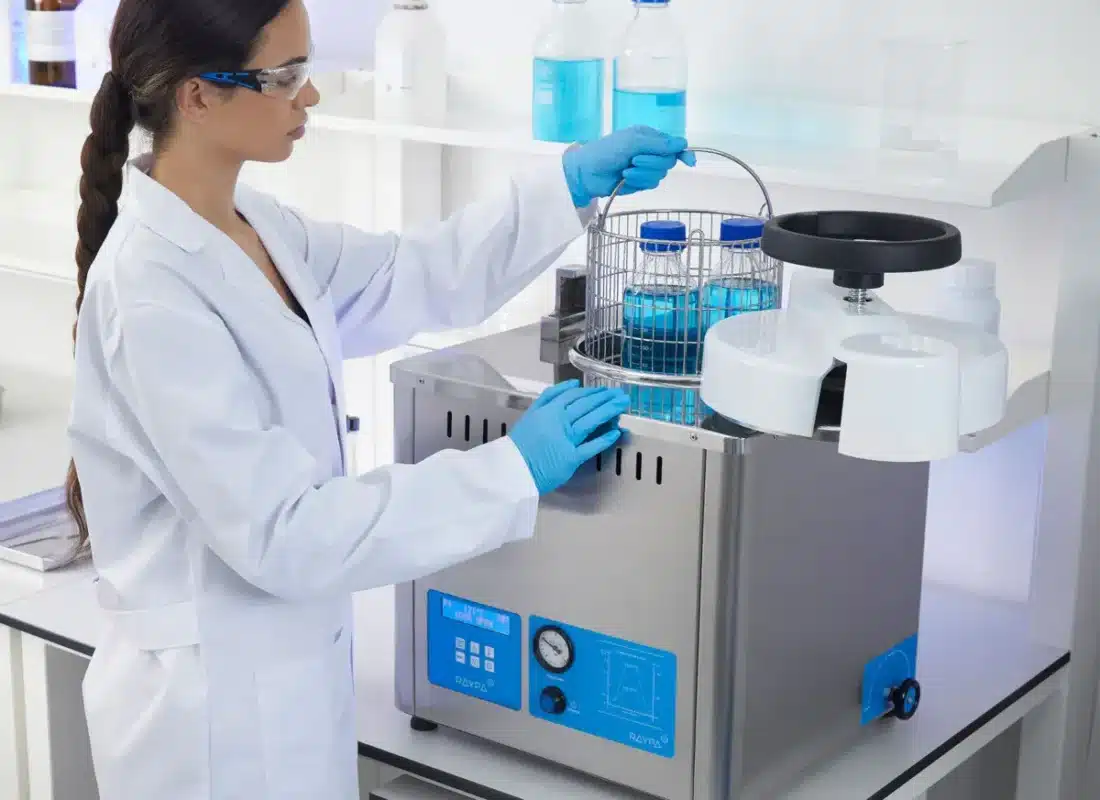

These autoclaves can sterilize a variety of small solid and liquid loads such as glass, plastics, metal utensils, liquids, culture media, and other laboratory items.
Ideal for general laboratory use, these autoclaves are engineered for simple operation and feature advanced safety measures to ensure user protection during routine tasks. They also offer straightforward installation with their plug-and-play design.
Compact, economical and limited resource consumption
Sterilization chamber and external building in stainless steel. The components are sourced from top-tier manufacturers. Limited consumption of water, energy and operator time.
Easy installation and simple maintenance, no specific connections required
No specific connections are required for installation; all models are plug and play, only requiring an electrical connection. In addition, all models include a specific basket, a protective rack for the heating elements and a drainage tube.
| Specifications | AES-8 | AES-12 |
|---|---|---|
| Total/usable volume of the chamber (L) | 8/6.8 | 15/13 |
| Usable dimensions of the chamber (Ø x H mm) | 220 x 180 | 250 x 280 |
| External dimensions (L x D x H mm) | 410 x 355 x 430 | 490 x 475 x 630 |
| Loading height (mm) | 320 | 435 |
| Net weight (Kg) | 12 | 38 |
| Power (W) | 1000 | 1000 |
| Standard voltage* | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. | ||
| General Features | AES-8 | AES-12 |
|---|---|---|
| Available models | AES-8 | AES-12 |
| Adjustable sterilization temperature | 100 – 127ºC | 100 – 134ºC |
| Adjustable sterilization time | 1 – ∞ min | 1 – 250 min |
| Max. pressure | 1.5 Barg | 2.1 Barg |
| Sterilization control system | Fully automatic by chamber temperature probe | Fully automatic by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Gravity displacement | Gravity displacement |
| External building material | AISI-304 stainless steel | AISI-304 stainless steel |
| Sterilization chamber material | AISI-18/10 | AISI-316L |
| Heating elements material | Incoloy® 825 | Incoloy® 825 |
| Gasket material | Silicone rubber | Silicone rubber |
| Connection to PC | RS-232 | RS-232 |
| Connection to printer | – | RS-232 or integrated |
| Number of programs | 1 | 10 (4 preset and 6 user free) |
| Programmable auto-start | 1 – ∞ min | Up to 24 h |
| Screen type | LCD display | LCD display |
| Opening door mode | External vertical swiveling door plus internal blocking bayonet lid | Horizontal swiveling door with blocking wheel |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel | Pressure gauge on control panel |
| Water management | Water is directly poured into the sterilization chamber | Water is directly poured into the sterilization chamber |
| Drainage system | Drainage connection operated by an independent drainage valve on control panel for manual release of sterilization chamber water tank | Drainage connection operated by an independent drainage valve on control panel for manual release of sterilization chamber water tank |
| Feet | Height adjustable feet with resistant rubber | Height adjustable feet with resistant rubber |
| Model | AES-8, AES-12 |
|---|
