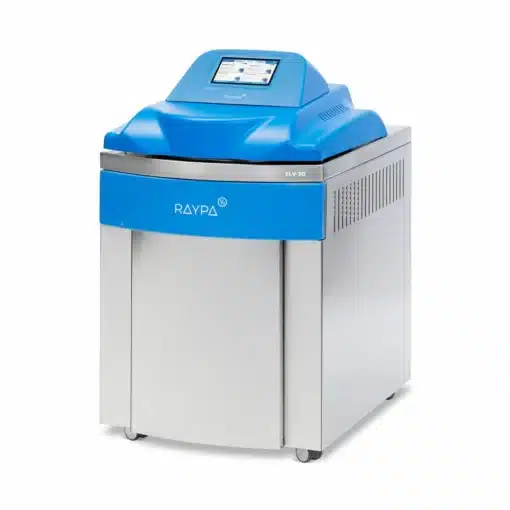

RAYPA Multipurpose Vertical Autoclave TLV-S Series

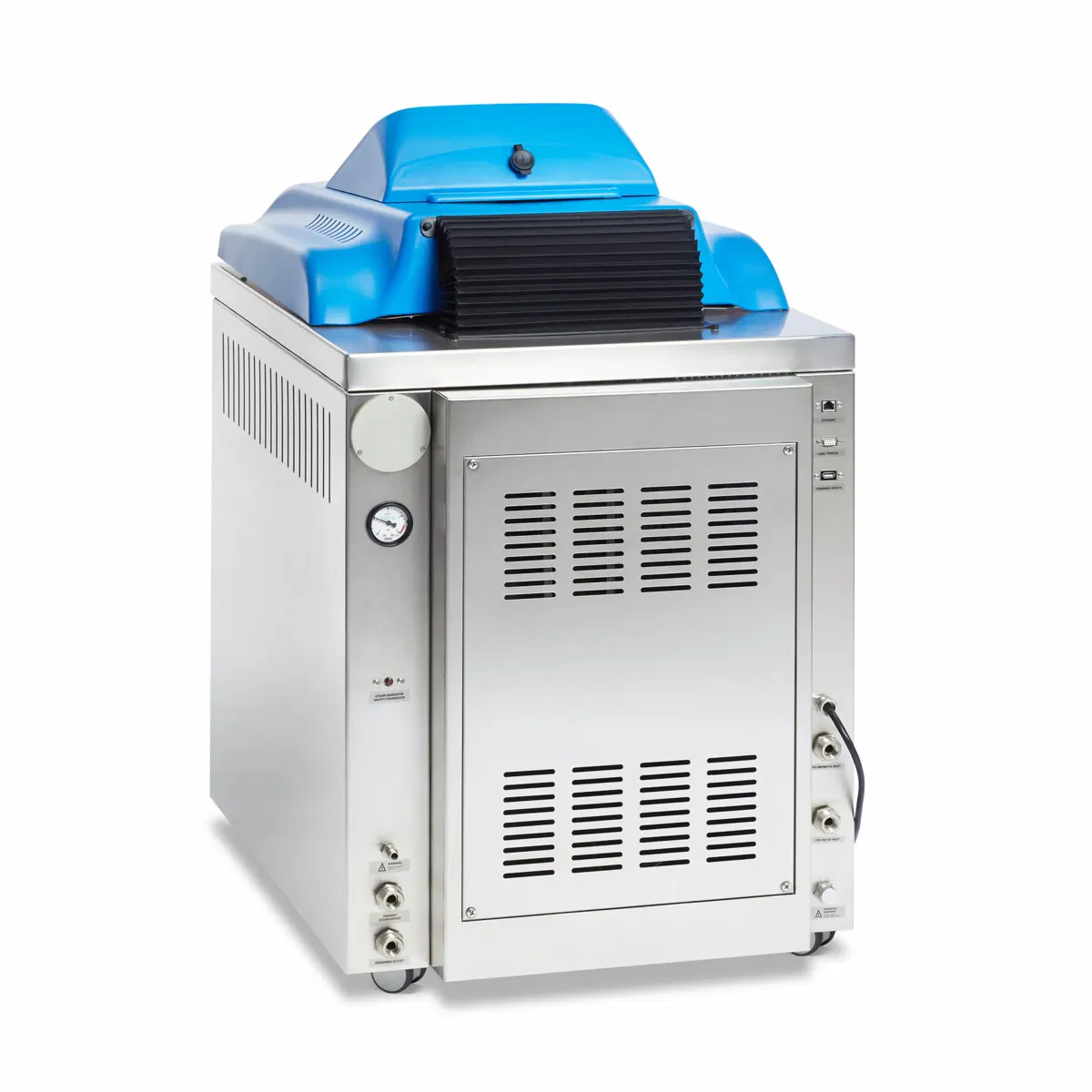

RAYPA Multipurpose Vertical Autoclave TLV-S Series - Image 2

RAYPA Multipurpose Vertical Autoclave TLV-S Series

Price range: $28,105.00 through $39,139.10

Model

Clear

SKU: N/A Category: Autoclave Sterilizers Brand: RAYPA

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

The TLV-S Series vertical laboratory autoclaves are designed for the sterilization of both solid and liquid loads in the pharmaceutical and biotech industry.

Fully automatic, equipped with cutting-edge engineering and exceptional quality in every detail
Modern design with 7” capacitive touchscreen display
Advanced cloud-based connectivity that complies with FDA, GMP, and GLP standards

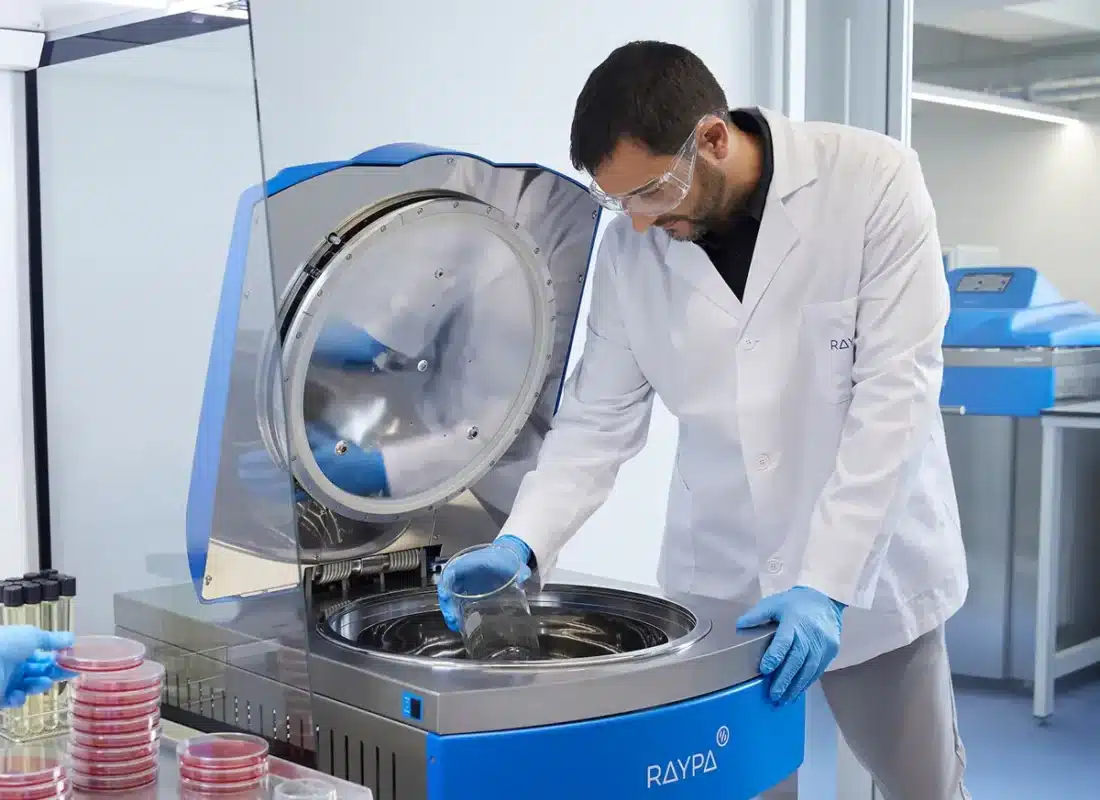

Multipurpose vertical laboratory autoclaves

Multipurpose autoclaves for solids and liquids designed to meet the sterilization needs of industrial and research environments in the pharmaceutical, chemical and biotechnological industries.

Top line vertical autoclaves enable fully digital operation. All models are equipped with the most advanced connectivity on the market and comply with the latest advances in electronic records and data control to be able to work under FDA, GMP and GLP environments.

State-of-the-art sterilization technology

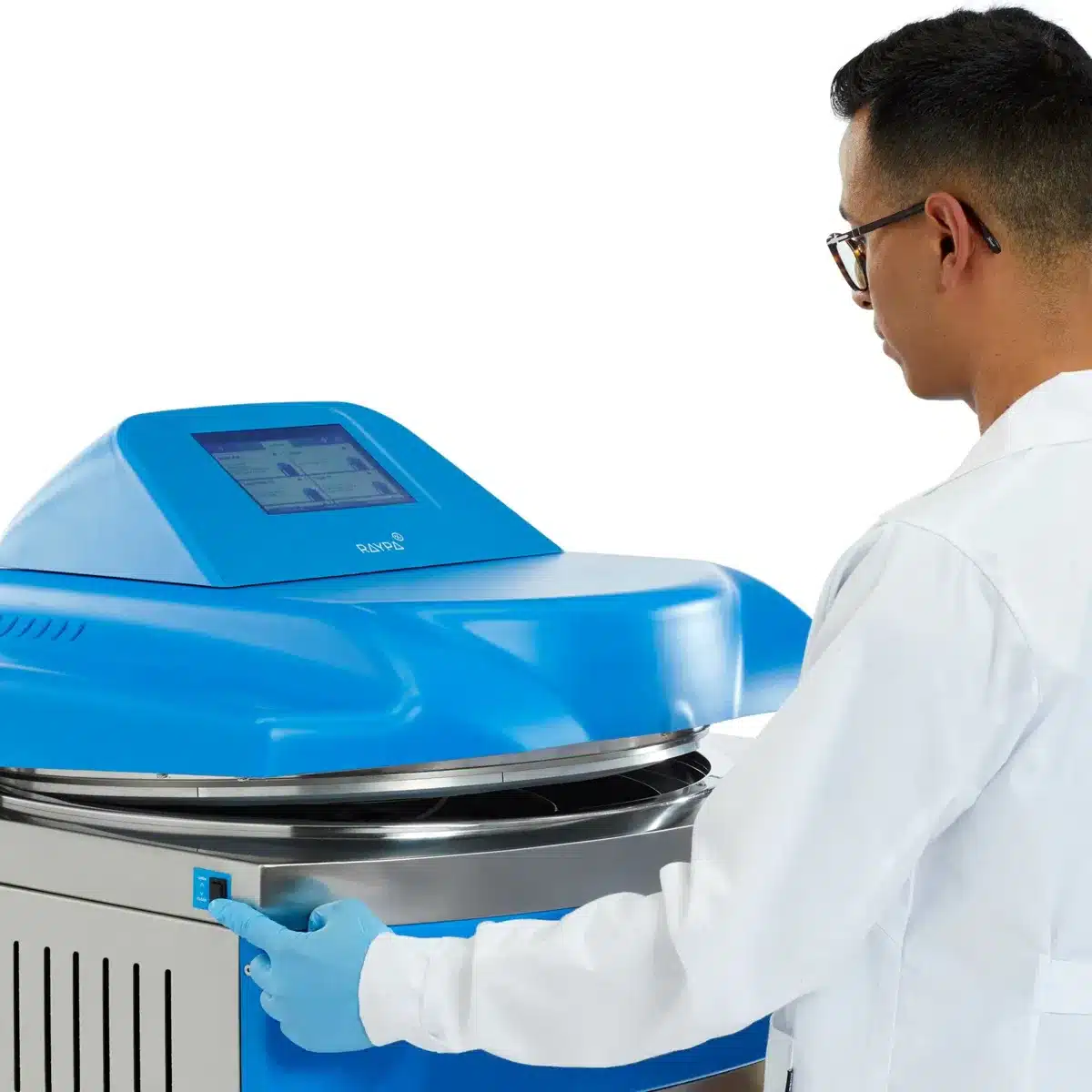

State-of-the-art technology. Push-button-controlled mechanically assisted door. Instant steam production by the built-in steam generator. Air inlet and outlet fitted with a bacteriological filter. Built-in vacuum pump for initial prevacuum. F₀-controlled sterilizations thanks to the integrated flexible probes. Automatic filling from the water network. Water-cooled direct discharge.

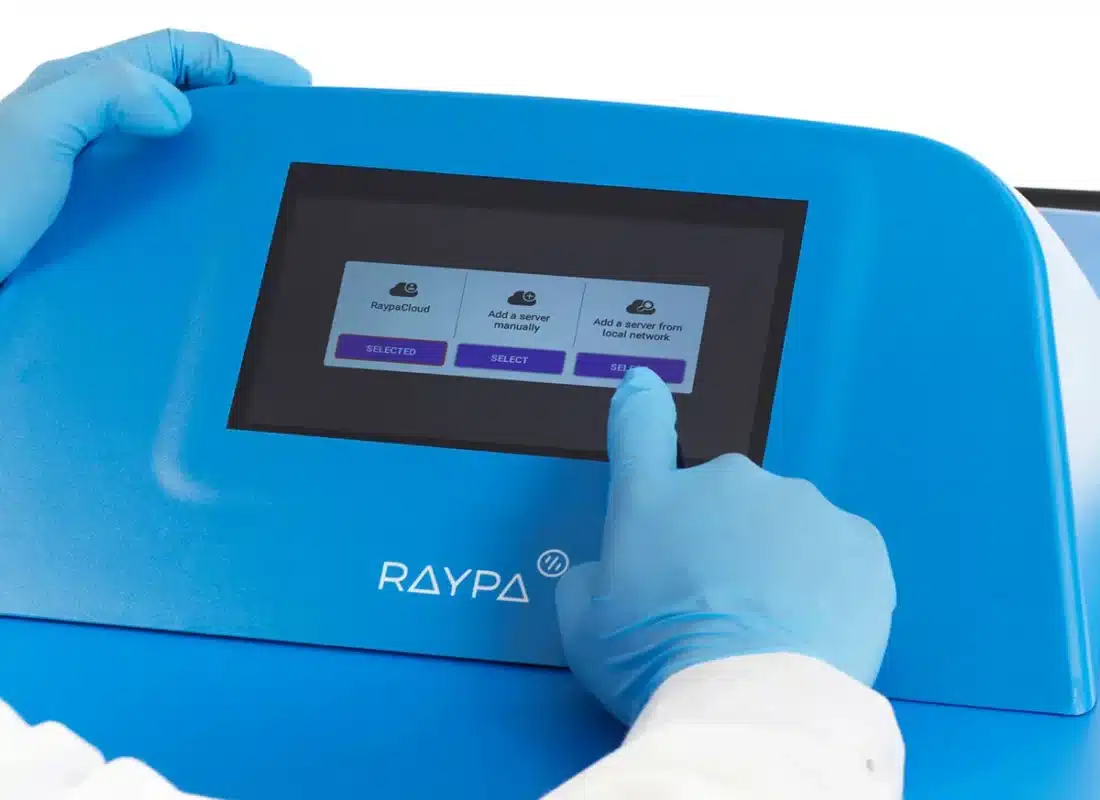

Modern design with a 7” touchscreen display

Large capacitive screen, control over all parameters, real-time program visualization, admin user control, and access to protocol history. Includes multiple video tutorials and a ticket builder.

TECHNICAL DATA	TLV-50	TLV-75	TLV-110	TLV-150
Chamber dimensions Ø x H usable	400 x 450 mm	400 x 650 mm	500 x 600 mm	500 x 850 mm
Chamber volume total / usable	58 / 56 L	83 / 81 L	124 / 118 L	169 / 155 L
External dimensions L x D x H	610 x 870 x 1060 mm	610 x 876 x 1110 mm	710 x 980 x 1160 mm	710 x 980 x 1310 mm
Weight	140 Kg	150 Kg	195 Kg	210 Kg
Power	3600 W	3600 W	9000 W	9000 W
Electrical voltage*	230 (1P+N+E) V	230 (1P+N+E) V	400 (3P+N+E) V	400 (3P+N+E) V
Frequency	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz
Working temperature range	105 – 140 ºC	105 – 140 ºC	105 – 140 ºC	105 – 140 ºC
Maximum working pressure	2,6 barg	2,6 barg	2,6 barg	2,6 barg
Maximum design Temperature / Pressure	143 ºC / 2,9 barg	143 ºC / 2,9 barg	143 ºC / 2,9 barg	143 ºC / 2,9 barg
* Ask for other voltages

Specifications	TLV	TLV-PD	TLV-FA
Integrated steam generator separated into the housing	✔	✔	✔
Automatic block/unblock system	✔	✔	✔
Mechanical assisted door	✔	✔	✔
Fast cooling	–	–	✔
Pre-vacuum	✔	✔	✔
Post-vacuum	–	✔	–
Air exhaust filtration	✔	✔	✔
Water ring vacuum pump	–	✔	–
Internal radial fan	–	–	✔
Steam exhaust condensation with cold water	✔	✔	✔
Autofill: automatic purified water feed for steam generation	✔	✔	✔
Temperature holding function after the end of program for liquids	✔	✔	✔
Housing and basic frame construction in stainless steel	✔	✔	✔
Lid and pressure vessel construction	316L	316L	316L
Pressure gauge	✔	✔	✔
4 casters (with brakes in two of them)	✔	✔	✔
Flexible PT-100 temperature sensor	O	O	✔
Second flexible PT-100 temperature sensor	O	O	O
Printer for batch documentation Integrated	O	O	O
Printer for batch documentation External	O	O	O
Barcode scanner with label printer	O	O	O
Number of sterilization programs	50	50	50
Password secured access rights for parameterization	✔	✔	✔
Automatic microprocessor control	✔	✔	✔
7” capacitive colour touch screen	✔	✔	✔
External data transfer (network compatible) RS-232	✔	✔	✔
USB	✔	✔	✔
ETHERNET	✔	✔	✔
WI-FI	✔	✔	✔
RAYPA CLOUD Basic (extensive documentation/network compatible)	O	O	O
RAYPA CLOUD Premium (extensive documentation/network compatible)	O	O	O
Private cloud server	O	O	O
Internal memory for documentation for sterilization cycles	up to 1,000,000	up to 1,000,000	up to 1,000,000
Data backup via USB reader	✔	✔	✔
Timer for programmable start time	✔	✔	✔
Calculation of FO value in combination with flexible PT-100	O	O	✔
FDA 21 CFR Part 11 and GMP Annex 11 compliance	O	O	O
Connection to LIMS***	✔	✔	✔
✔ Standard O Optional *** LIMS: Laboratory Information Management System
