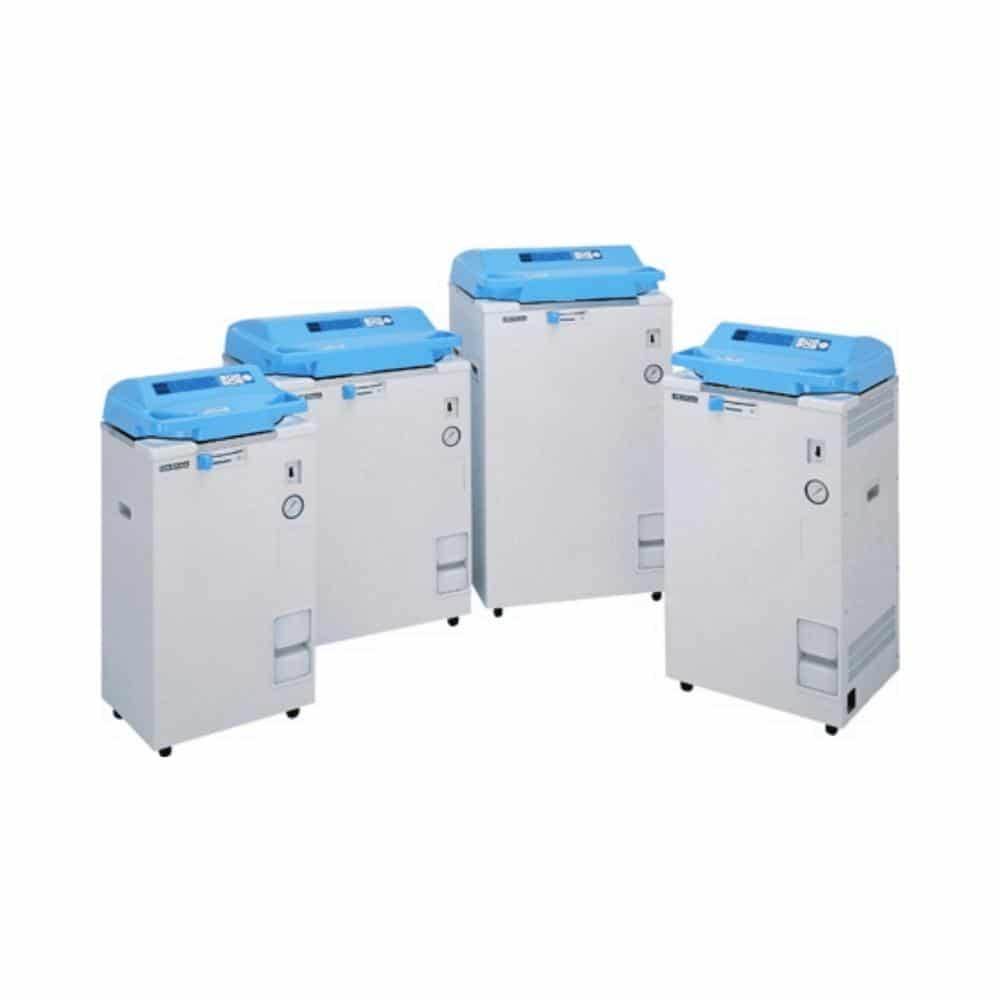

Amerex HV-Series

Get Price

SKU: 8021-10-0001 Category: Autoclave Sterilizers Brand: Amerex Instruments

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

Space-saving design with lid opening upward.

Programmable auto-start for initiating a cycle up to 1 week later.

Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.

Automatic air purging by a microprocessor prevents over-pressurization during a cycle.

One-touch lever to easily open and close chamber lid.

Programmable rate of steam exhaust.

Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.

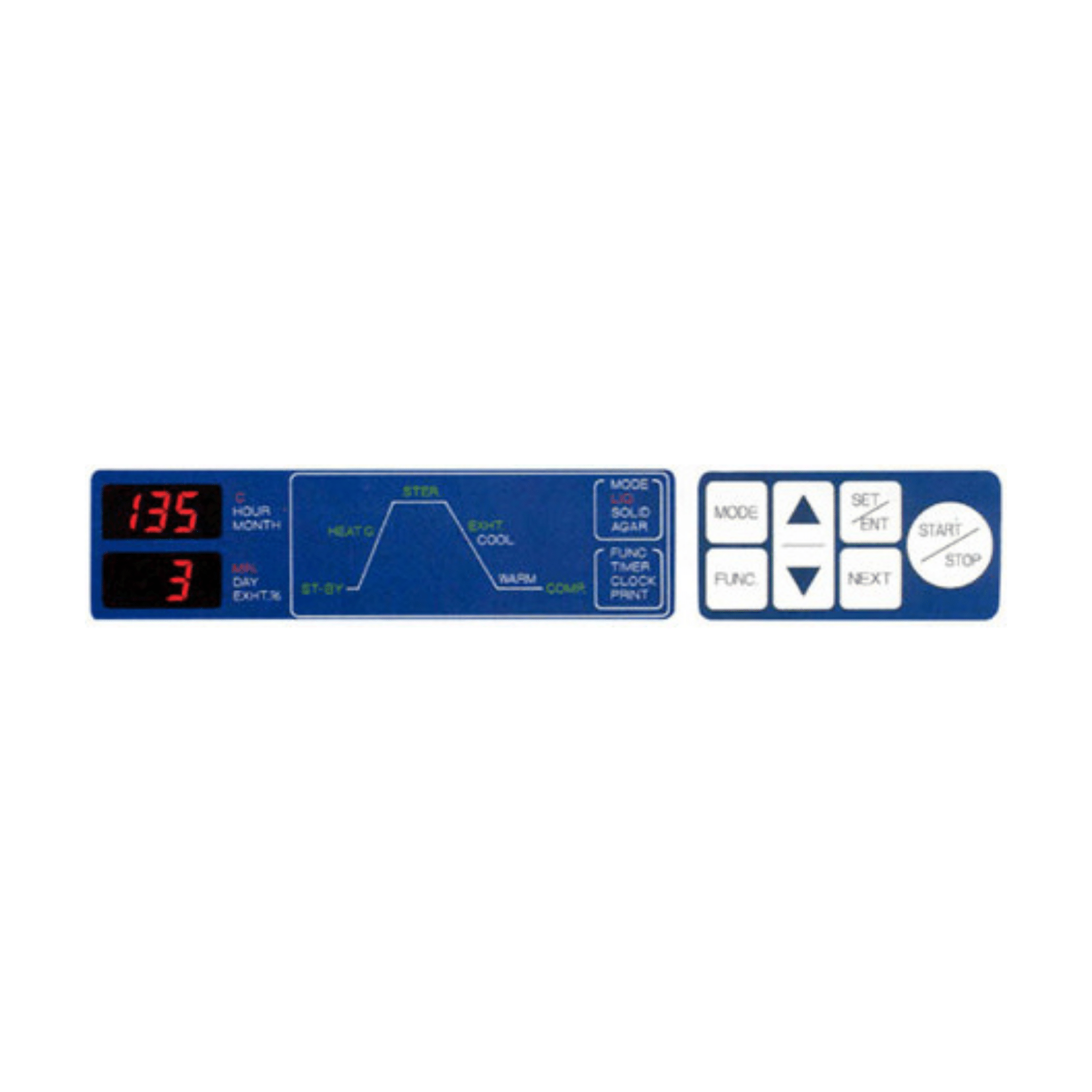

In-process display shows status and progress of sterilization cycle.

Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.

Unique accessory: Floating sensor to monitor load temperature.

Sterilization timer is activated only when load temperature reaches set temperature.

Agar melting mode for rapidly melting agar and maintaining it at liquid temperature, or for a hot and faster start-up

Memory backup system retains user-programmed parameters even in case of power failure.

Technical Specifications

HV-25 AND HV-50 SPECIFICATIONS

MODEL	HV-25	HV-50
TEMPERATURE
Operating Range	105ºC to 126ºC	105ºC to 135ºC
Display Range	128ºC	137ºC
Warming Range	45ºC to 60ºC
Agar Dissolution	Heating at 60ºC to 100ºC for up to 1 hour (temperature and time programmable), followed by 45ºC to 60ºC (programmable for up to 20 hours to prevent coagulation)
GAUGE PRESSURE
Operating Range	3 to 22 psi gauge (0.02 to 148MPa)	3 to 30 psi (0.02 to 0.206MPa)
Maximum Allowable	27 psi (0.186MPa)	38 psi (0.26MPa)
TIMER
Sterilization	1 to 250 minutes
Delayed Auto-start	Program autoclave to start 1 minute to 7 days later
DIMENSIONS
Overall (W x D x H)	19.0″ x 18.0″ x 37.4″ (48 cm x 46 cm x 95 cm)	20″ x 21″ x 41″ (51 cm x 53 cm x 104 cm)
Chamber (Diameter x Height)	25 liters 9.4″ x 21.6″ (24 cm x 55 cm)	50 liters 11.8″ x 28.0″ (30 cm x 71 cm)
SAFETY DEVICES	Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
PROGRAMS
1. For agar	Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Warming -> Completion
2. For liquids	Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Completion
3. For solids	Heating -> Sterilization -> Exhaust (fast, default) -> Completion
4. For melting agar or for faster start-up	Rapid melting at 60°C to 100°C (temperature and time programmable) -> Maintain at 45°C to 60°C (temperature programmable) -> Completion
ACCESSORIES
Stainless steel	Mesh wire baskets, buckets (pails), and round test tube racks
Factory or field installed	Floating (load) sensor, digital printer, and data logger
POWER
Source	120V, 50/60 Hz (220V/240V available)
Consumption	1500 watts (1500VA)	2000 watts (2000VA)
SHIPPING WEIGHT	160 lb (73 kg)	180 lb (82 kg)

WARRANTY: Autoclaves are protected by a 12-month warranty.

HV-85 AND HV-110 SPECIFICATIONS

MODEL	HV-85	HV-110
TEMPERATURE
Operating Range	105ºC to 135ºC
Display Range	137ºC
Warming Range	45ºC to 60ºC
Agar Dissolution	Heating at 60ºC to 100ºC for up to 1 hour (temperature and time programmable), followed by 45ºC to 60ºC (programmable for up to 20 hours to prevent coagulations)
GAUGE PRESSURE
Operating Range	3 to 30 psi (0.021 to 0.206MPa)
Maximum Allowable	38 psi ( 0.26MPa)
TIMER
Sterilization	1 to 250 minutes
Delayed Auto-start	Program autoclave to start 1 minute to 7 days later
DIMENSIONS
Overall (W x D x H)	26.0″ x 25.6″ x 39.4″ (66 cm x 65 cm x 100 cm)	26.0″ x 25.6″ x 46.5″ (66 cm x 65 cm x 118 cm)
Chamber (Diameter x Height)	85 liters 16.5″ x 24.2″ (42.0 cm x 61.5 cm)	110 liters 16.5″ x 31.3″ (42.0 cm x 79.5 cm)
SAFETY DEVICES	Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
PROGRAMS
1. For agar	Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Warming -> Completion
2. For liquids	Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Completion
3. For solids	Heating -> Sterilization -> Exhaust (fast, default) -> Completion
4. For melting agar or for faster start-up	Rapid melting at 60°C to 100°C (temperature and time programmable) -> Maintain at 45°C to 60°C (temperature programmable) -> Completion
ACCESSORIES
Stainless steel	Mesh wire baskets, buckets (pails), and round test tube rack
Factory or field installed	Floating (load) sensor, digital printer, and data logger
POWER
Source	208V/220V/240V, 50/60 Hz, single phase
Consumption	3000 watts (3000VA)	4000 watts (4000VA)
SHIPPING WEIGHT	282 lb (128 kg)	308 lb (140 kg)
