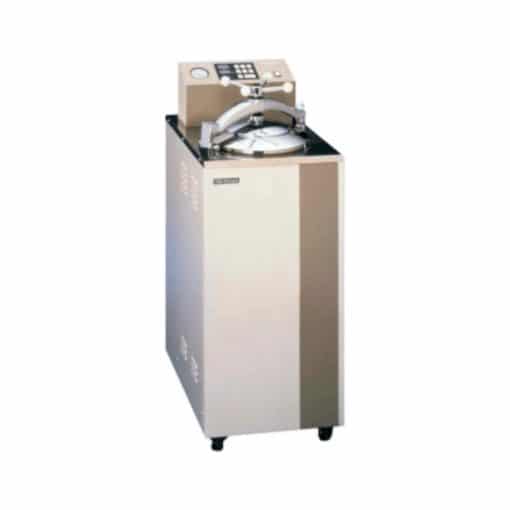

Amerex HA-300MD

Get Price

SKU: 8021-10-0008 Category: Autoclave Sterilizers Brand: Amerex Instruments

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

Top loading design is ideal for the sterilization of media and other liquids in tall flasks and bottles.

Deep chamber for accommodating fermentors and bioreactors.

Space-saving, stand-alone unit occupies minimal floor space and can fit conveniently into many locations in the laboratory.

Full-count sterilization guarantees sterilization at the preset temperature and time. Timer pauses if chamber temperature falls 1ºC below the preset temperature.

Liquid cycles with slow exhaust or natural cooling for liquids and solids without drying.

Drying cycle for glassware and other solid loads.

Additional drying cycle without re-sterilization.

Micro-processor controlled for precise sterilization.

Internal steam generator uses purified water to generate pure steam.

Audio/visual alarms and on-board diagnostics for rapid repair.

HA-300MD size: 50 liters, 11.8″ D, 26.4″ H.

Technical Specifications

TEMPERATURE
Operating Range	105ºC to 126ºC
Display Range	5ºC to 129ºC
GAUGE PRESSURE
Operating Range (gauge)	3 to 30 psi (gauge), 0.021 to 0.21MPa
Maximum Allowable	38 psi (gauge), 0.26MPa
TIMER
Sterilization	1 to 999 minutes
Drying	1 to 120 minutes
DIMENSIONS
Overall (W x D x H)	17.3″ x 20.5″ x 42.1″ in (44 x 52 x 107 cm)
Chamber (Diameter x Height)	50 liter 11.8″ x 26.4″ (30 cm x 67 cm)
SAFETY DEVICES	Over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, over-current detector and circuit breaker
PROGRAMS
1. For solids with drying	Sterilization -> Manual Steam/Water Exhaust -> Drying -> Completion
2. For solids w/o drying	Sterilization -> Auto Steam Exhaust -> Completion
3. For liquids	Sterilization -> Natural Cooling -> Completion
4. For additional drying	Drying -> Completion
ACCESSORIES
Stainless steel	Mesh wire baskets, buckets (pails), and round test tube rack
Factory or field installed	Data logger
POWER
Source	120V, 50/60 Hz, single phase (220V available on request)
Consumption	2000 watts (2000 VA)
SHIPPING WEIGHT	180 lb (82 kg)
