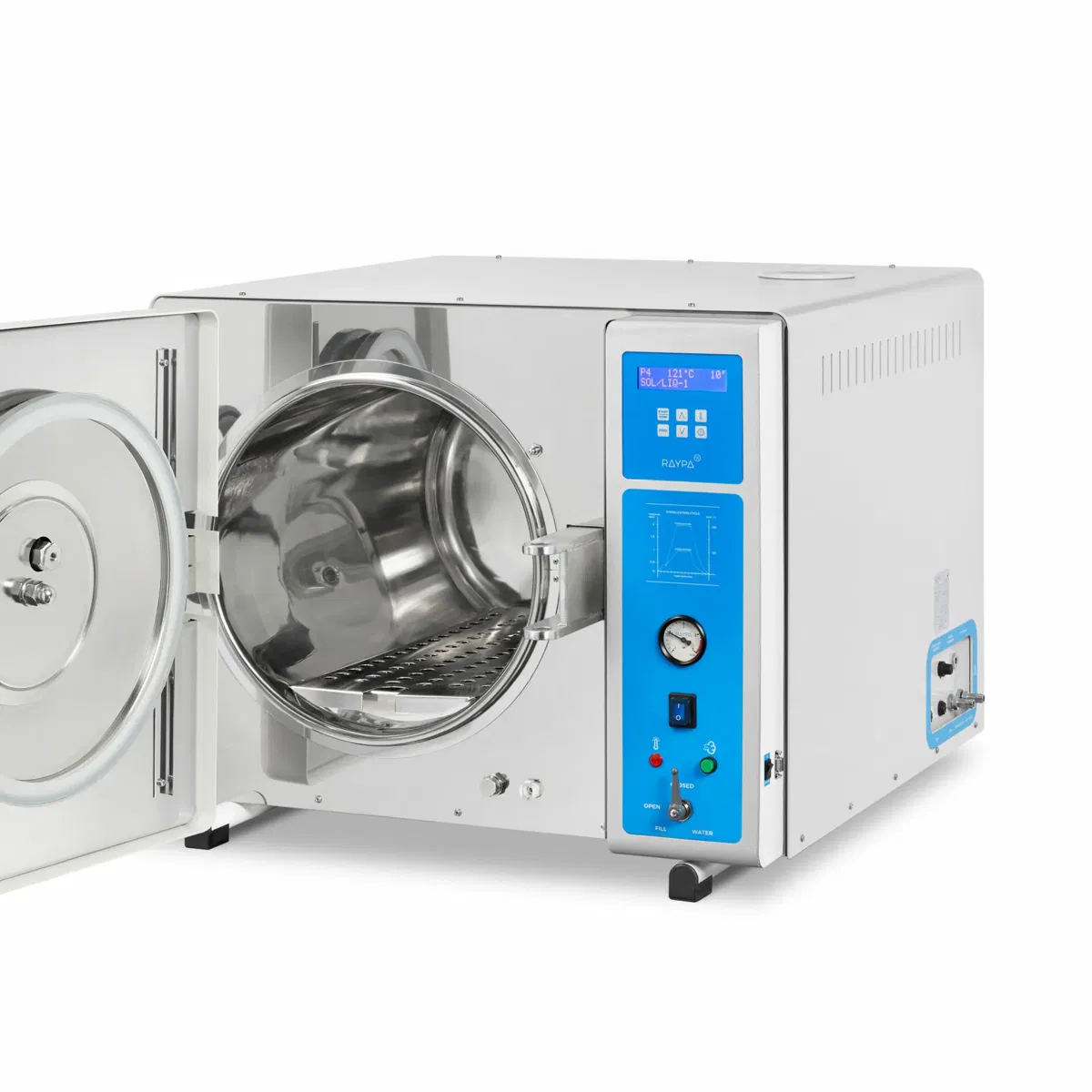

RAYPA Front-loading Benchtop Autoclave without Drying AHS-N Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AHS-N Series front-loading benchtop autoclaves are designed to sterilize a wide variety of laboratory materials in an economical and straightforward manner.
- Economical, cost-effective, and with robust performance
- Limited consumption of laboratory resources
- Excellent construction materials
Benchtop front-loading laboratory autoclaves without drying
The AHS-N Series benchtop autoclaves meet the fundamental sterilization needs of laboratories in industrial, educational and research facilities to increase productivity and simplify sterilization operations.
They are designed for sterilization of a wide range of solid and liquid loads, including glass, plastics, metal utensils, liquids, culture media and other laboratory items.
Suitable for the general laboratory, they are optimized for easy operation, include many safety features to protect users in their daily routine and are easy to install as they are plug and play.
Economical, resilient and limited resource consumption
Built using high-quality construction materials, they feature a sterilization chamber made of exceptionally resistant AISI-316L stainless steel. The components are sourced from top-tier manufacturers. Limited consumption of water, energy and operator time.
Compact design and easy installation
Compact and desktop design. They have an integrated independent water tank. No specific connections are required for their installation, they are plug and play equipment, they simply need an electrical connection.
| Specifications | AH-21-N2 | AHS-50-N | AHS-75-N |
|---|---|---|---|
| Total/usable volume of the chamber (L) | 22/21 | 55/50 | 79/75 |
| Usable dimensions of the chamber (Ø max. x D mm) | 210 x 430 | 360 x 400 | 360 x 600 |
| Volume of the built-in water tank (L) | 6 | 10 | 10 |
| External dimensions (L x D x H mm) | 560 x 680 x 425 | 805 x 805 x 650 | 805 x 1005 x 650 |
| Maximum number of trays | 4 or 5 | 5 | 5 |
| Tray size (L x D mm) | 190 x 350 | 315 x 330 | 315 x 530 |
| General Features | AH-21-N2 | AHS-50-N | AHS-75-N |
|---|---|---|---|
| Available models | AH-21-N2 | AHS-50-N | AHS-75-N |
| Adjustable sterilization temperature | 100 – 134ºC | 100 – 134ºC | 100 – 134ºC |
| Adjustable sterilization time | 1 – ∞ min | 1 – 250 min | 1 – 250 min |
| Max. pressure | 2.1 Barg | 2.1 Barg | 2.1 Barg |
| Sterilization control system | Fully automatic by chamber temperature probe | Fully automatic by either chamber temperature probe or flexible core temperature probe | Fully automatic by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Gravity displacement | Gravity displacement | Gravity displacement |
| Sterilization chamber material | AISI-316L stainless steel | AISI-316L stainless steel | AISI-316L stainless steel |
| Heating elements material | Incoloy® 825 | Incoloy® 825 | Incoloy® 825 |
| Gasket material | Silicone rubber | Silicone rubber | Silicone rubber |
| Connection to PC | RS-232 | RS-232 | RS-232 |
| Connection to printer | – | RS-232 or integrated | RS-232 or integrated |
| Number of programs | 1 | 10 (4 preset and 6 user free) | 10 (4 preset and 6 user free) |
| Programmable auto-start | 1 – ∞ min | Up to 24 h | Up to 24 h |
| Screen type | LCD display | LCD display | LCD display |
| Opening door mode | Front-loading swiveling door | Front-loading swiveling door | Front-loading swiveling door |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel | Pressure gauge on control panel | Pressure gauge on control panel |
| Water management | Independent manually fed water tank with manual valve to feed water to the sterilization chamber | Independent manually fed water tank with manual valve to feed water to the sterilization chamber | Independent manually fed water tank with manual valve to feed water to the sterilization chamber |
| Drainage system | Drainage connections for both drainage and overflow of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber | Drainage connections for both drainage and overflow of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber | Drainage connections for both drainage and overflow of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber |
| Feet | Feet with resistant rubber | Feet with resistant rubber | Feet with resistant rubber |
| Net weight (Kg) | 45 | 93 | 110 |
| Power (W) | 2000 | 2800 | 3200 |
| Standard voltage* | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. | |||
