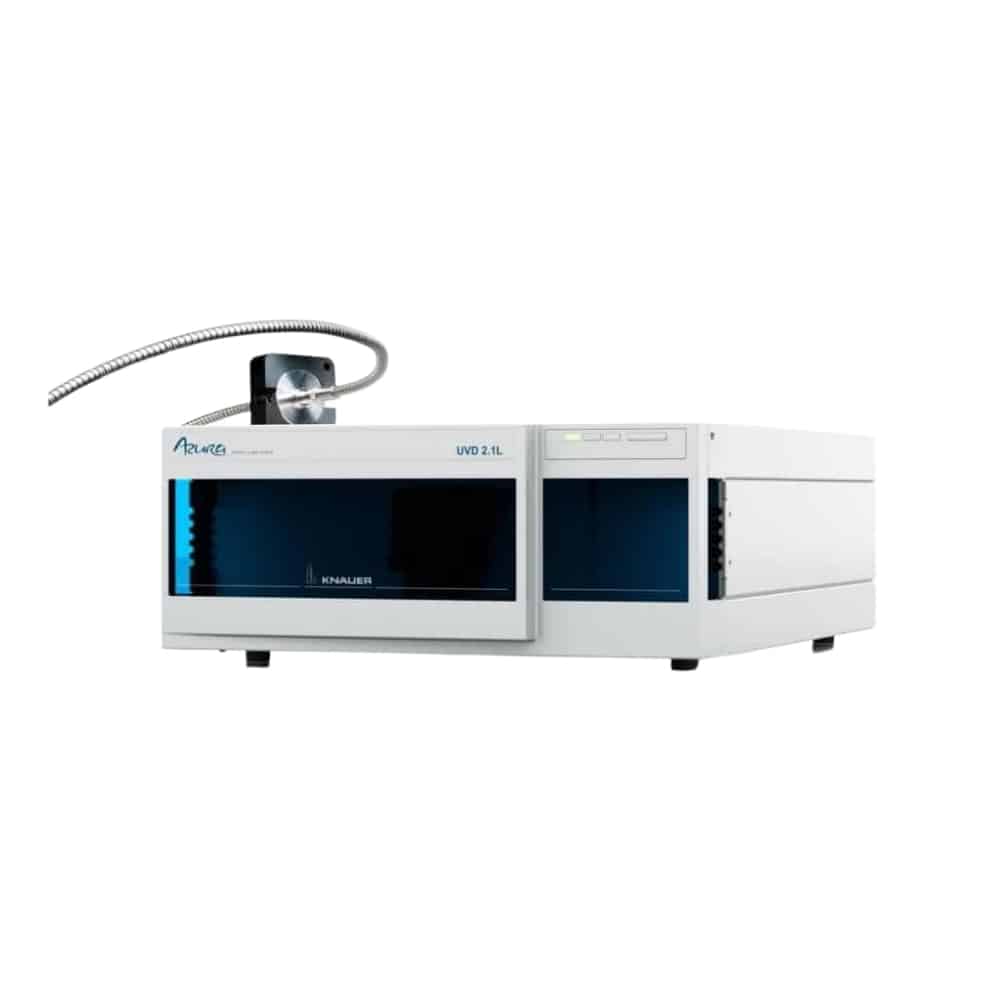

AZURA UV/VIS Detector UVD 2.1L Fiber Optics
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Superior Single Wavelength UV-Detector for Liquid Chromatography and Process Technology with Fiber Optics Technology
190 – 750 nm, variable single wavelength UV/VIS detector with fiber optic connectors
The AZURA UV/VIS Detector UVD 2.1L is a competitively priced HPLC spectrophotometer for routine HPLC applications including fast LC methods. Besides offering excellent technical specifications, this robust detector features a highly flexible and compact design. The UVD 2.1L comes with an installed deuterium lamp which covers a wavelength range from 190 to 750 nm. This detector can be controlled with OpenLab® EZChrom Edition, ChromGate® and ClarityChrom® software, as well as from an optional touch display (stand-alone operation), via LAN or through analog input/output; allowing it to be integrated into almost any LC system. Due to a smart design the flow cell is easily accessible and can be changed very quickly. You can choose between a wide range of flow cells for analytical or preparative LC applications with flow rates from 10 μl/min up to 10 l/min. This fiber optics version offers the possibility to separate the flow cell spatially from the device and thus provides enhanced security for hazardous, explosive or toxic work processes.
- Large choice of flow cells
- Leak management
- Fiber optics version
- 59 years experience
- Made in Germany
Detection
| Detector type | Variable single wavelength UV detector |
|---|---|
| Version | fiber optics version |
| Detection channels | 1 |
| Light source | Deuterium (D²) lamp with integrated GLP chip |
| Wavelength range | 190 – 750 nm |
| Spectral bandwidth | 11 nm at Hα line (FWHM) |
| Wavelength accuracy | ± 2.5 nm |
| Wavelength precision | 0.3 nm (ASTM E275-93) |
| Noise | ± 20 µAU at 254 nm (ASTM E1657-98) |
| Drift | 400 µAU/h at 254 nm (ASTM E1657-98) |
| Linearity | > 2.0 AU at 274 nm (ASTM E1657-98) |
| Maximum data rate | 50 Hz (LAN)/20 Hz (Analog) |
| Flow cell | Not included (see Accessories / Spare parts) |
| Time constants | 0.0 / 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s |
| Integration time | Automatic |
| Leak sensor | Yes |
Communication
| Inputs | Error (IN), Start (IN), Autozero,0 – 10 V Analog IN |
|---|---|
| Outputs | Events 1 – 3, + 5 V, 24 V Valve |
| Analog outputs | 1 x 0 – 5 V scalable, 20 bit, offset adjustable |
| Control | Digital: LAN, remote connector/Analog: wavelength control/Manual: Mobile Control (optional) |
| Programming | Timed: wavelength, events, fraction valve, links, wake up (program, link); /9 programs, 50 program lines |
Technical parameters
| GLP | Detailed report including lamp recognition, operating hours, /lamp operating hours, number of lamp ignitions |
|---|---|
| Display | Mobile Control (optional) |
| Ambient conditions | Temperature range: 4 – 40 °C, 39.2 – 104 °F, Humidity: below 90 % noncondensing |
General
| Power supply | 100 – 240 V, 50 – 60 Hz, 65 W |
|---|---|
| Dimensions | 361 x 158 x 523 mm (W x H x D) |
| Weight | 6.0 kg |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
