RAYPA Front-loading Benchtop Autoclave with Prevacuums and Drying AHS-B Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AHS-B Series benchtop laboratory autoclaves with prevacuums and drying are particularly suitable for sterilizing solid loads and objects with complex geometries.
- Advanced features and total versatility for multiple applications
- Solid loads are completely dry upon cycle completion
- Compact design and 5” touchscreen with 50 programs

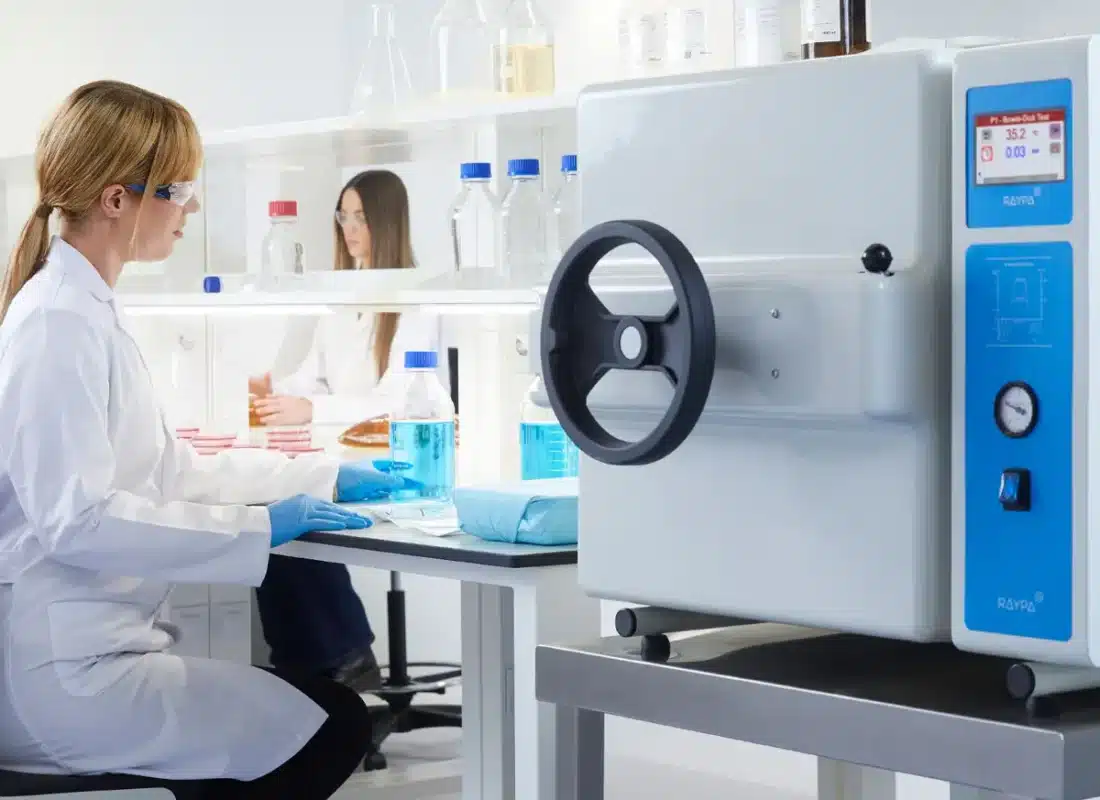

Benchtop laboratory autoclaves with prevacuums and drying
The AHS-B Series benchtop autoclaves have advanced features to meet all the sterilization needs of industrial, educational, medical and research laboratories to increase productivity and process all types of loads.
They are specially optimized for processing loads that require a higher steam penetration capacity to be properly sterilized such as porous solids, packaged loads, objects with cavities, items with complex geometries as well as liquids.
Thanks to their outstanding versatility in sterilizing all types of loads, the integrated independent steam generator, touchscreen display, separate clean water tank, initial prevacuum pulses, final vacuum drying, and direct water discharge, these autoclaves excel in performing everything from the simplest to the most demanding applications.
Fast sterilizations with deep steam penetration
Achieve fast cycle times with instant steam production from the built-in steam generator. The pre-vacuum phase, featuring multiple vacuum pulses, thoroughly removes air pockets, ensuring effective sterilization of all types of loads.

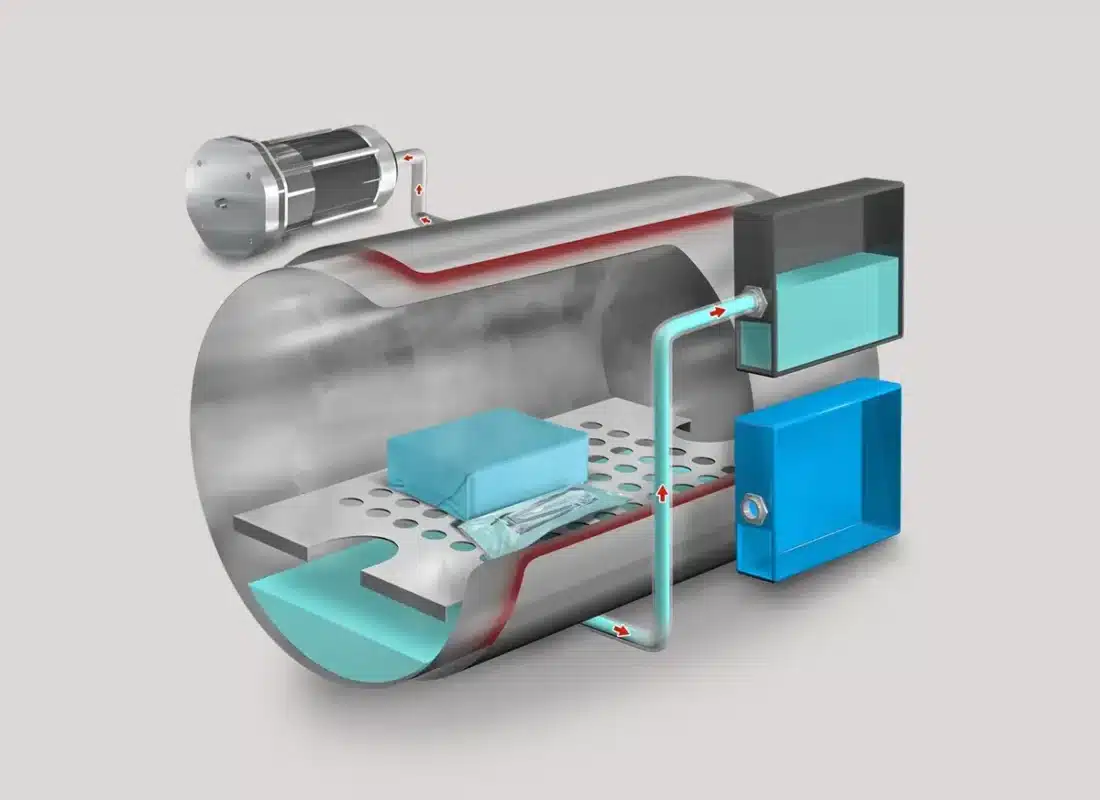

Thoroughly dries the load with the final drying function
Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, ensuring safe processing of porous solids and packaged objects. There is no need to dry the load in an external oven.
| Specifications | AH-21-B | AHS-50-B | AHS-75-B |
|---|---|---|---|
| Total/usable volume of the chamber (L) | 22/21 | 55/50 | 79/75 |
| Usable dimensions of the chamber (Ø max. x D mm) | 210 x 430 | 360 x 400 | 360 x 600 |
| Volume of the built-in clean water tank (L) | 6 | 10 | 10 |
| Volume of the built-in waste water tank (L) | 2.6 | 6 | 6 |
| External dimensions (L x D x H mm) | 560 x 660 x 425 | 805 x 805 x 650 | 805 x 1005 x 650 |
| Maximum number of trays | 5 | 5 | 5 |
| Tray size (L x D mm) | 190 x 350 | 315 x 330 | 315 x 530 |
| Net weight (Kg) | 65 | 114 | 132 |
| Power (W) | 2000 | 3600 | 3600 |
| Standard voltage* | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. | |||
| General Features | |
|---|---|
| Adjustable sterilization temperature | 105 – 134ºC |
| Adjustable sterilization time | 1 – 250 min |
| Adjustable prevacuum pulses | 1 – 3 |
| Adjustable drying time | 1 – 360 min |
| Max. pressure | 2.1 Barg |
| Sterilization Control System | |
|---|---|
| Control type | Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Mechanical displacement by vacuum pump |
| Heating system | Independent integrated steam generator |
| Vacuum drying system | Vacuum pump plus heating jacket |
| Prevacuum system | Vacuum pump |
| Materials | |
|---|---|
| Sterilization chamber material | AISI-316L stainless steel |
| Gasket material | Silicone rubber |
| Connections | |
|---|---|
| Connection to PC | Ethernet |
| Connection to printer | Integrated |
| Programs and Interface | |
|---|---|
| Number of programs | 50 (14 preset and 36 user free) |
| Programmable auto-start | Unlimited range |
| Screen type | 5’’ TFT touchscreen |
| Door and Safety | |
|---|---|
| Opening door mode | Front-loading swiveling door |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº, P & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel, digital display on screen, registry on software and printer tickets |
| Water Management and Drainage | |
|---|---|
| Water management | Independent manually fed clean water tank that automatically feeds the independent integrated steam generator. Optional upgrade to fully automatic clean water feed directly from water network |
| Drainage system | Drainage connections for both drainage and overflow of the independent clean water tank, to drain the independent waste water tank and a screw to manually clean the drainage filter and drain the sterilization chamber |
| Additional Features | |
|---|---|
| Feet | Feet with resistant rubber |
