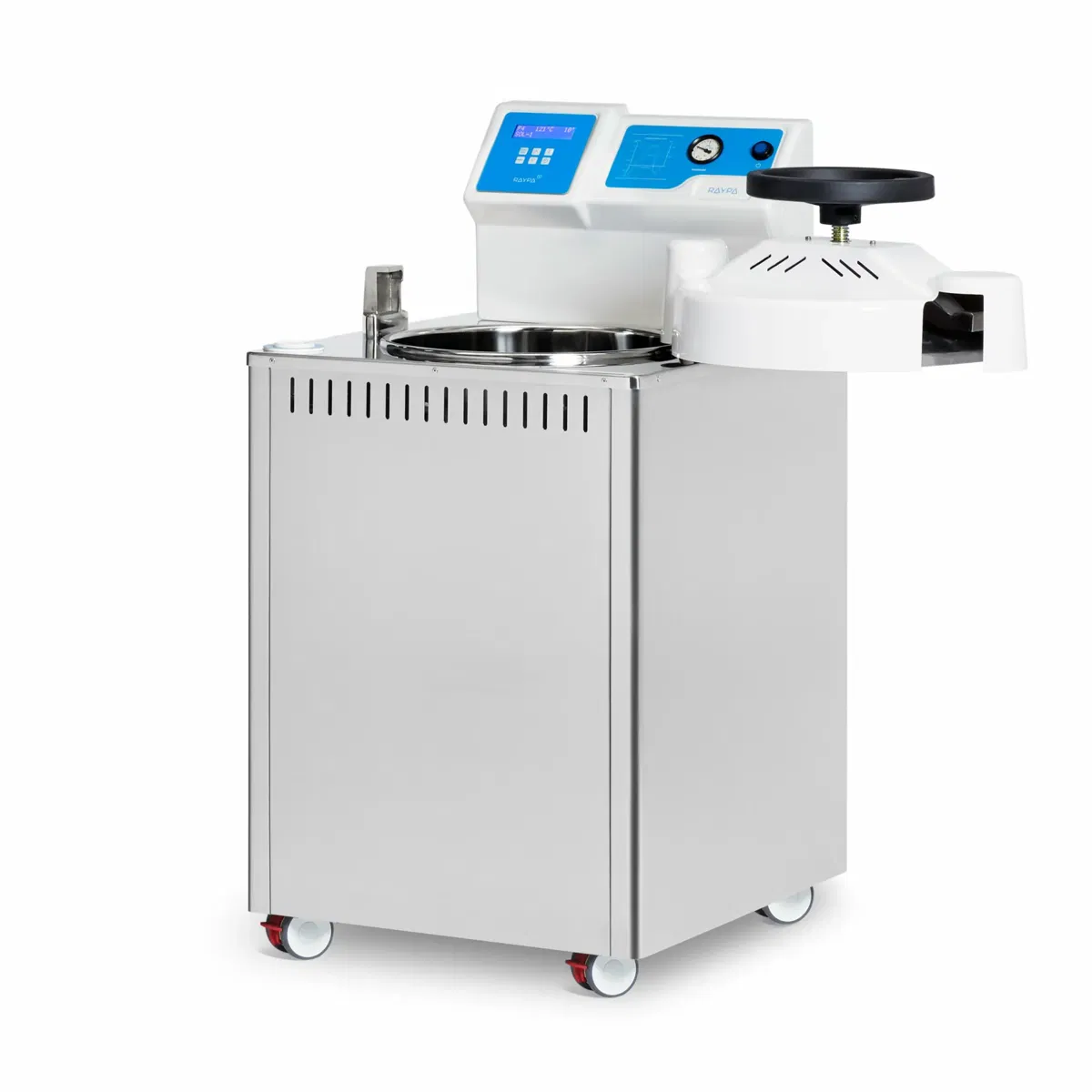

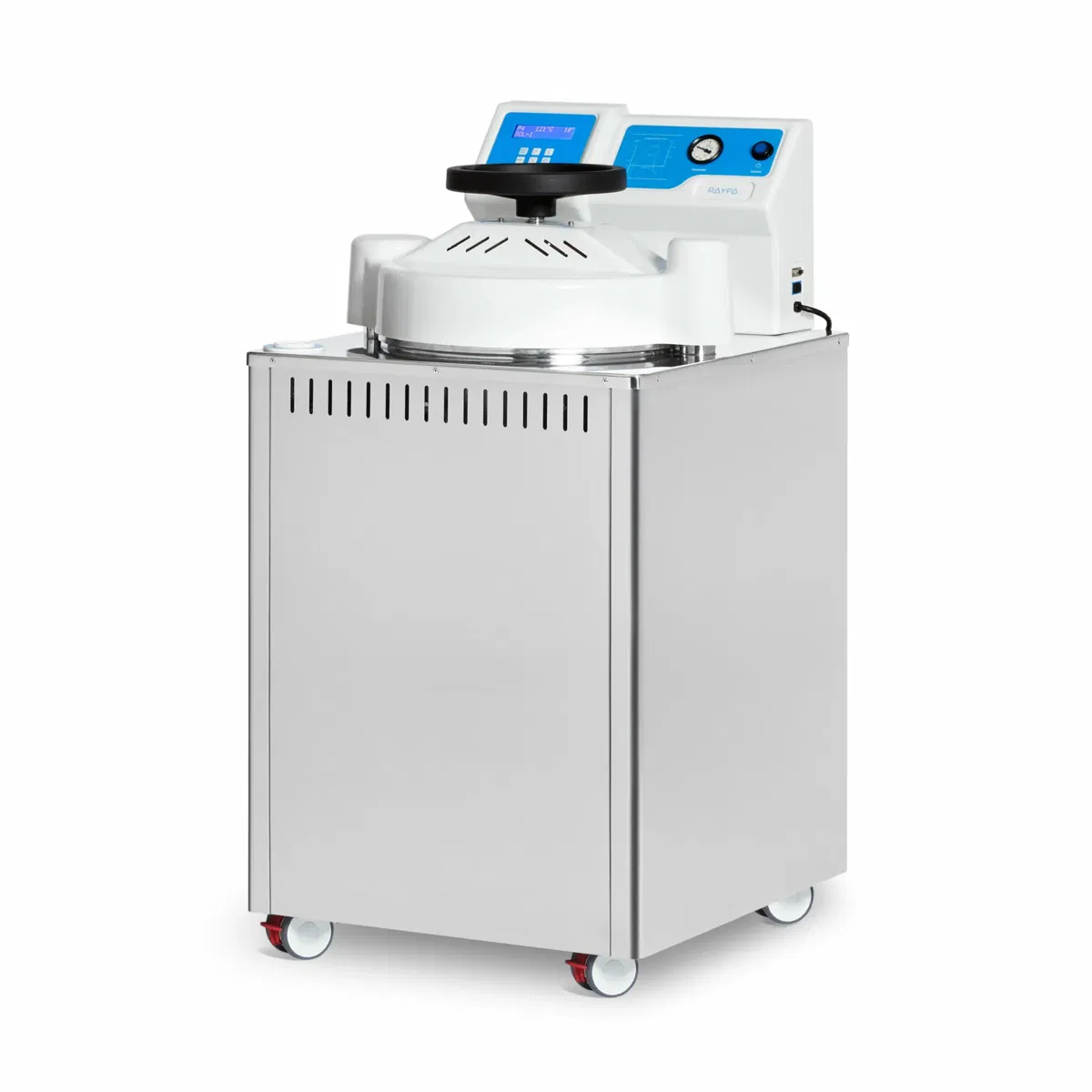

RAYPA Vertical Autoclave with Drying AE-DRY Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
AE-DRY Series vertical laboratory autoclaves with drying are specifically designed for sterilizing solid loads and enhancing laboratory productivity.
- Solid loads are completely dry upon cycle completion
- Economical, cost-effective, and with robust performance
- Excellent construction materials
Vertical laboratory autoclaves with drying
The AE-DRY Series vertical autoclaves meet the sterilization needs of industrial, educational, and research facilities with the aim of boosting productivity and minimizing each sterilization cycle’s turnaround time. There is no need to dry the load in an external oven.
Designed for sterilizing bagged solid loads, porous and hollow objects, glass, plastics, metal utensils, and laboratory waste bags. They can also process liquids and culture media.
The versatility to process all types of loads, the final drying function, and the highest degree of automation, along with greater efficiency in resource consumption such as water, energy, and operational time, result in a cost-efficient solution for managing the laboratory’s workload.
Save time thanks to the final drying function
Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, eliminating the need to dry the load in an external oven, thus gaining convenience and saving handling time.
Optimized sterilizations and higher degree of automation
Mechanical purge through a vacuum pump to remove air pockets and improve steam penetration. Specific programs for liquids. Includes a bacteriological filter and an independent water tank that can be equipped with an automatic filling kit for seamless operation.
| Specifications | AE-28-DRY | AE-50-DRY | AE-75-DRY | AE-110-DRY | AE-150-DRY |
|---|---|---|---|---|---|
| Total/usable volume of the chamber (L) | 33/31 | 55/50 | 79/75 | 115/110 | 175/153 |
| Usable dimensions of the chamber (Ø x H mm) | 300 x 440 | 300 x 710 | 400 x 600 | 400 x 850 | 500 x 760 |
| External dimensions (L x D x H mm) | 505 x 580 x 1110 | 505 x 580 x 1290 | 610 x 700 x 1185 | 610 x 700 x 1435 | 750 x 820 x 1400 |
| Loading height (mm) | 795 | 975 | 870 | 1120 | 1085 |
| Net weight (Kg) | 75 | 95 | 123 | 150 | 235 |
| Available powers (W) | 2000 or 3200 | 3200 or 5000 | 3200 or 6000 | 4500, 6000 or 9000 | 6000 or 9000 |
| Standard voltage* | 230 | 230 | 230 | 400 | 400 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages. | |||||
| General Features | |
|---|---|
| Adjustable sterilization temperature | 100 – 134ºC |
| Adjustable sterilization time | 1 – 250 min |
| Adjustable drying time | 3 – 99 min |
| Max. pressure | 2,1 Barg |
| Sterilization Control System | |
|---|---|
| Control type | Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Mechanical displacement by vacuum pump |
| Vacuum drying system | Vacuum pump plus heating jacket |
| Materials | |
|---|---|
| External building material | AISI-304 stainless steel |
| Sterilization chamber material | AISI-316L stainless steel |
| Heating elements material | Incoloy® 825 |
| Gasket material | Silicone rubber |
| Connections | |
|---|---|
| Connection to PC | RS-232 |
| Connection to printer | RS-232 or integrated |
| Programs and Interface | |
|---|---|
| Number of programs | 10 (4 preset and 6 user free) |
| Programmable auto-start | Up to 24h |
| Screen type | LCD display |
| Door and Safety | |
|---|---|
| Opening door mode | Horizontal swiveling door with blocking wheel |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel |
| Water Management and Drainage | |
|---|---|
| Water management | Independent manually fed water tank that automatically feeds the sterilization chamber. Water returns automatically to the independent water tank after cycle is completed. Optional upgrade to fully automatic water feed directly from water network |
| Drainage system | A drainage connection and a manual valve for overflow and drainage of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber |
| Additional Features | |
|---|---|
| Casters | Included standard casters, optional upgrade to premium casters with brakes |
