RAYPA Vertical Autoclave with Prevacuums and Drying AE-B Series

RAYPA Vertical Autoclave with Prevacuums and Drying AE-B Series - Image 2

RAYPA Vertical Autoclave with Prevacuums and Drying AE-B Series

Price range: $16,487.90 through $28,670.40

Model

Clear

SKU: N/A Category: Autoclave Sterilizers Brand: RAYPA

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

The AE-B Series vertical laboratory autoclaves with prevacuums and drying are particularly suitable for sterilizing porous loads and objects with complex geometries.

Excellent performance, advanced features and complete versatility
Solid loads are completely dry upon cycle completion
Entirely automated with a 5” touchscreen

Vertical laboratory autoclaves with prevacuums and drying

The AE-B Series vertical autoclaves feature advanced characteristics designed to meet all the sterilization needs of industrial, healthcare and research laboratories, aiming to enhance productivity and process all types of loads.

They are specially optimized for processing loads that require greater steam penetration for proper sterilization, such as porous solids, packaged loads, items with hollows and cavities, and objects with complex geometries, as well as liquids.

Thanks to their outstanding versatility in sterilizing all types of loads, the integrated independent steam generator, touchscreen display, separate clean water tank, initial prevacuum pulses, final vacuum drying, and direct water discharge, these autoclaves excel in performing everything from the simplest to the most demanding applications.

Rapid sterilizations with excellent steam penetration

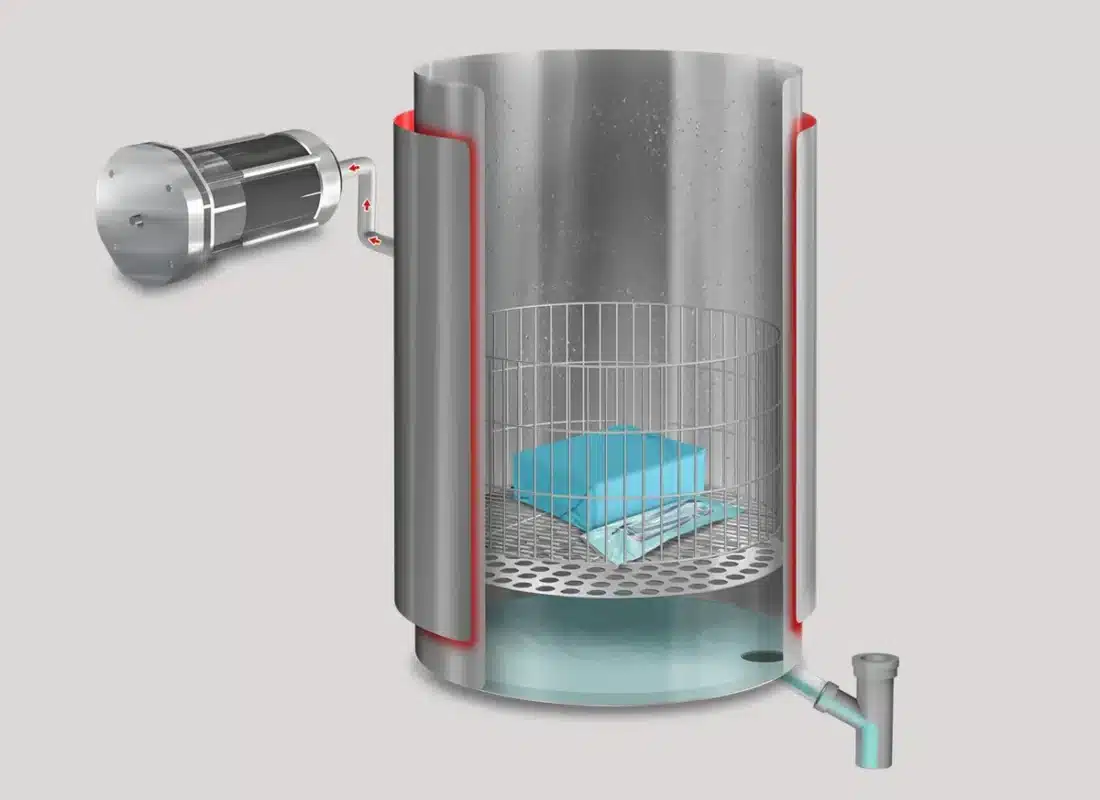

Achieve fast cycle times with instant steam production from the built-in steam generator. The pre-vacuum phase, featuring multiple vacuum pulses, thoroughly removes air pockets, ensuring effective sterilization of all types of loads.

Thoroughly dries the load with the final drying function

Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, ensuring safe processing of porous solids and packaged objects. There is no need to dry the load in an external oven.

Specifications	AE-50-B	AE-75-B	AE-110-B	AE-150-B
Total/usable volume of the chamber (L)	55/50	79/75	115/110	175/153
Usable dimensions of the chamber (Ø x H mm)	300 x 710	400 x 600	400 x 850	500 x 760
External dimensions (L x D x H mm)	505 x 580 x 1290	610 x 700 x 1185	610 x 700 x 1435	750 x 820 x 1400
Loading height (mm)	975	870	1120	1085
Net weight (Kg)	99	135	165	245
Available powers (W)	3600	3600 or 6000	6000 or 9000	6000 or 9000
Standard voltage*	230	230	400	400
Frequency (Hz)	50/60	50/60	50/60	50/60
*Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages.

General Features
Adjustable sterilization temperature	105 – 134ºC
Adjustable sterilization time	1 – 250 min
Adjustable prevacuum pulses	1 – 3
Adjustable drying time	1 – 360 min
Max. pressure	2,1 Barg

Sterilization Control System
Control type	Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe
Air purge system	Mechanical displacement by vacuum pump
Heating system	Independent integrated steam generator
Vacuum drying system	Vacuum pump plus heating jacket
Prevacuum system	Vacuum pump

Materials
External building material	AISI-304 stainless steel
Sterilization chamber material	AISI-316L stainless steel
Gasket material	Silicone rubber

Connections
Connection to PC	Ethernet
Connection to printer	Integrated

Programs and Interface
Number of programs	50 (14 preset and 36 user free)
Programmable auto-start	Unlimited range
Screen type	5’’ TFT touchscreen

Door and Safety
Opening door mode	Horizontal swiveling door with blocking wheel
Monitoring of sterilization parameters	Self-control of obtained values (Tº, P & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values
Pressure display	Pressure gauge on control panel, digital display on screen, registry on software and printer tickets

Water Management and Drainage
Water management	Independent manually fed clean water tank that automatically feeds the independent integrated steam generator. Optional upgrade to fully automatic clean water feed directly from water network
Drainage system	Drainage connections for the direct discharge, to drain the independent clean water tank and for the overflow of the independent clean water tank
