RAYPA Front-loading Benchtop Autoclave with Drying AHS-DRY Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AHS-DRY Series benchtop laboratory autoclaves with drying are especially designed for sterilizing solid loads.
- Completely dry solid loads at the end of the cycle
- Economical, cost-effective, and with robust performance
- Excellent construction materials and safety features
Benchtop laboratory autoclaves with drying
The AHS-DRY Series benchtop autoclaves meet the sterilization needs of laboratories in industrial, educational, medical and research facilities with the aim of boosting productivity and minimizing each sterilization cycle’s turnaround time.
Designed for sterilizing bagged solid loads, porous and hollow objects, glass, plastics, metal utensils, and laboratory waste bags. They can also process liquids and culture media.
The ability to handle various types of loads, combined with the final drying feature and high automation, enhances efficiency in using resources like water, energy, and time. This leads to a cost-effective way to manage the laboratory’s workload.
Save time thanks to the final drying function

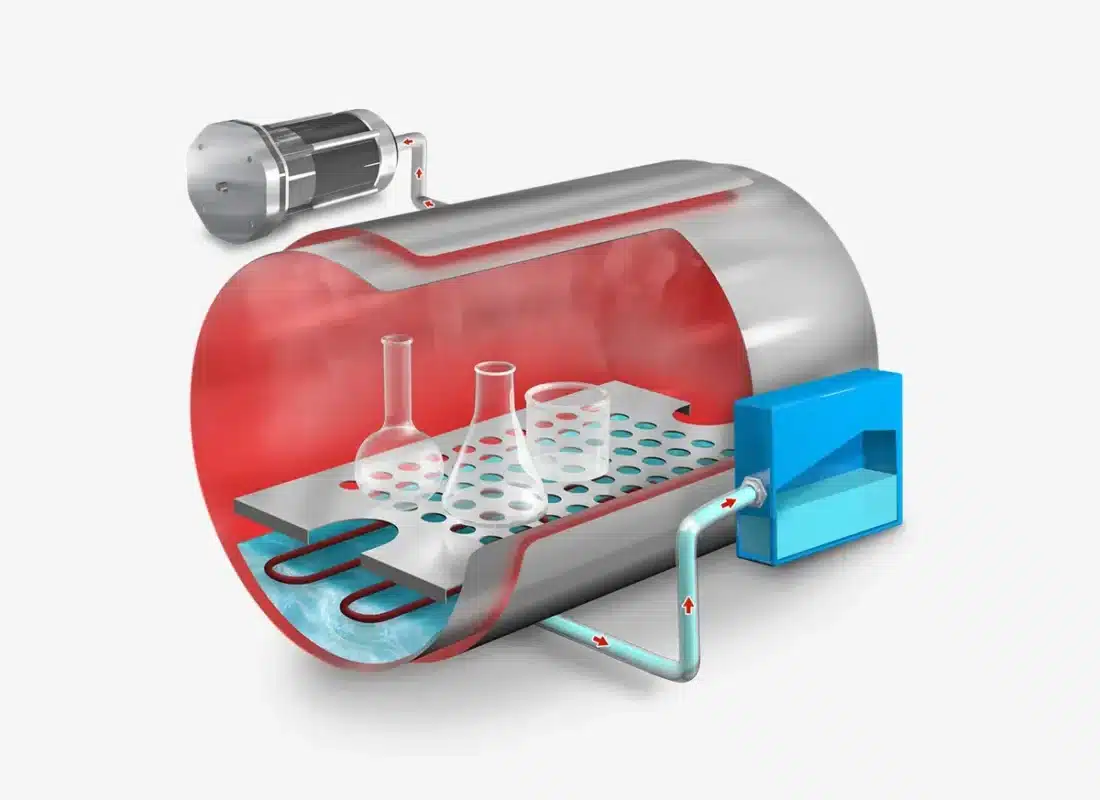

Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, eliminating the need to dry the load in an external oven, thus gaining convenience and saving handling time.
Optimized sterilizations and higher degree of automation
Mechanical purge through a vacuum pump to remove air pockets and improve steam penetration. Specific programs for liquids. Includes a bacteriological filter and an independent water tank that can be equipped with an automatic filling kit for seamless operation.
| Specifications | AH-21-L | AHS-50-DRY | AHS-75-DRY |
|---|---|---|---|
| Total/usable volume of the chamber (L) | 22/21 | 55/50 | 79/75 |
| Usable dimensions of the chamber (Ø max. x D mm) | 210 x 430 | 360 x 400 | 360 x 600 |
| Volume of the built-in water tank (L) | 6 | 10 | 10 |
| External dimensions (L x D x H mm) | 560 x 660 x 425 | 805 x 805 x 650 | 805 x 1005 x 650 |
| Maximum number of trays | 4 or 5 | 5 | 5 |
| Tray size (L x D mm) | 190 x 350 | 315 x 330 | 315 x 530 |
| Net weight (Kg) | 49 | 109 | 126 |
| Power (W) | 2000 | 2800 | 3200 |
| Standard voltage* | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. | |||
| General Features | |
|---|---|
| Adjustable sterilization temperature | 100 – 134ºC |
| Adjustable sterilization time | 1 – 250 min |
| Adjustable drying time | 3 – 99 min |
| Max. pressure | 2.1 Barg |
| Sterilization Control System | |
|---|---|
| Control type | Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Mechanical displacement by vacuum pump |
| Vacuum drying system | Vacuum pump plus heating jacket |
| Single prevacuum pulse system | Vacuum pump |
| Materials | |
|---|---|
| Sterilization chamber material | AISI-316L stainless steel |
| Heating elements material | Incoloy® 825 |
| Gasket material | Silicone rubber |
| Connections | |
|---|---|
| Connection to PC | RS-232 |
| Connection to printer | RS-232 or integrated |
| Programs and Interface | |
|---|---|
| Number of programs | 10 (4 preset and 6 user free) |
| Programmable auto-start | Up to 24 h |
| Screen type | LCD display |
| Door and Safety | |
|---|---|
| Opening door mode | Front-loading swiveling door |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel |
| Water Management and Drainage | |
|---|---|
| Water management | Independent manually fed water tank that automatically feeds the sterilization chamber. Water returns automatically to the independent water tank after cycle is completed. Optional upgrade to fully automatic water feed directly from water network |
| Drainage system | Drainage connections for both drainage and overflow of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber |
| Additional Features | |
|---|---|
| Feet | Feet with resistant rubber |
