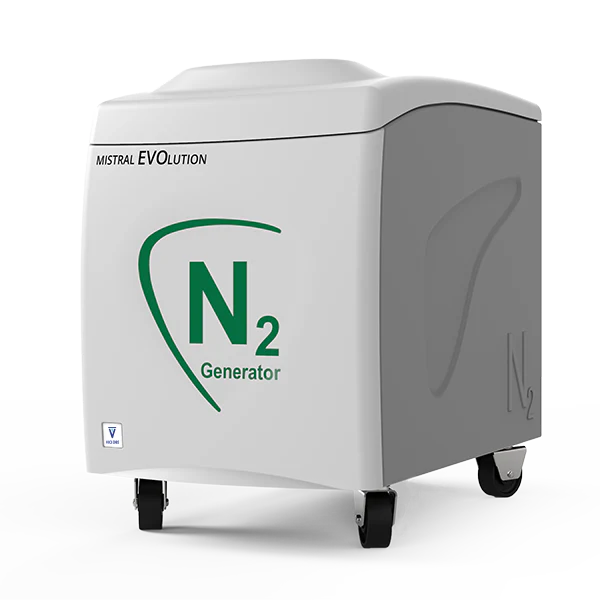

VICI DBS Mistral Evolution Nitrogen Generators
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The VICI DBS Mistral Evolution series represents a comprehensive range of self-contained nitrogen generators using proven Pressure Swing Adsorption (PSA) technology with proprietary carbon molecular sieve (CMS). Unlike membrane-based systems, PSA technology provides higher purity nitrogen and includes an integral oil-free, low-noise air compressor — meaning no external compressed air supply is needed. These generators are a complete plug-and-play LC/MS solution, delivering a continuous stream of nitrogen-rich gas for a wide range of analytical and laboratory applications. Purity levels up to 99.5% and flow rates from 10 to 40 L/min are available across the standard lineup, with Hybrid and Gas Station variants for specific instrument platforms.
- Technology: Pressure Swing Adsorption (PSA) with proprietary Carbon Molecular Sieve (CMS)
- Air Supply: Integral oil-free, low-noise compressor (no external compressed air required)
- Plug & Play: Yes — complete self-contained unit
- Warranty: 2 years standard
Applications

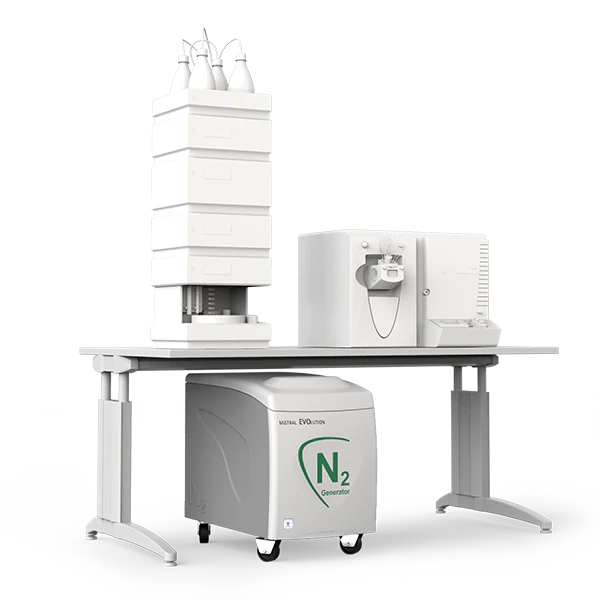

LC/MS (nebulizing gas, curtain gas, shield gas, sheath gas, electrospray gas, APCI gas, jet stream gradient), NMR spectroscopy, TGA/DSC thermal analyzers, ELSD detectors, corona/charged aerosol detectors, sample evaporators, cell incubators, IVF/stem cell incubators, glove box purge, fume hood/cabinet purge, 3D printer inerting, FT-IR spectrometers
Standard Mistral Evolution Models
| Part Number (US / EU) | Flow Rate | Purity | Max Pressure |
| DB-EVO-10-US / DB-EVO-10-EU | 10 L/min | >99.5% | 3 barg (43 psig) |
| DB-EVO-25-US / DB-EVO-25-EU | 25 L/min | 99% | 8 barg (116 psig) |
| DB-EVO-35-US / DB-EVO-35-EU | 35 L/min | 98% | 8 barg (116 psig) |
| DB-EVO-40-US / DB-EVO-40-EU | 40 L/min | 97% | 8 barg (116 psig) |
Specialized Mistral Evolution Variants
| Part Number | Model | Flow Rate | Purity | Pressure |
| DB-EVO-HY-US DB-EVO-HY-EU | Mistral Evolution Hybrid (For SCIEX LC/MS) | N2: 12 L/min Air 1: 8 L/min @ 4 barg Air 2: additional stream | >98% | 7 barg (100 psig) |
| DB-EVO-GS-US DB-EVO-GS-EU | Mistral Evolution Gas Station (For Agilent 4100/4200 MP AES) | Up to 25 L/min N2 + dry air | 99.5% | 7 barg (100 psig) |
| DB-EVO-GS-PE-US DB-EVO-GS-PE-EU | Mistral Evolution Gas Station P-E (For Agilent 4100/4200 MP AES) | Up to 25 L/min N2 + dry air | 99.5% | 7 barg (100 psig) |
Common Electrical Specifications (All Mistral Evolution Models)
| Spec | Value |
| Voltage (EU) | 220–230V / 50Hz |
| Voltage (US) | 110–115V / 60Hz (NEMA 5-20P) |
| Power Consumption | 1800 W |
| Noise Level | < 60 dB(A) |
| Operating Temperature | 15°C – 40°C |
| Display | Graphic, 128 x 64 px |
| Connections | 6mm OD tube rapid fittings |

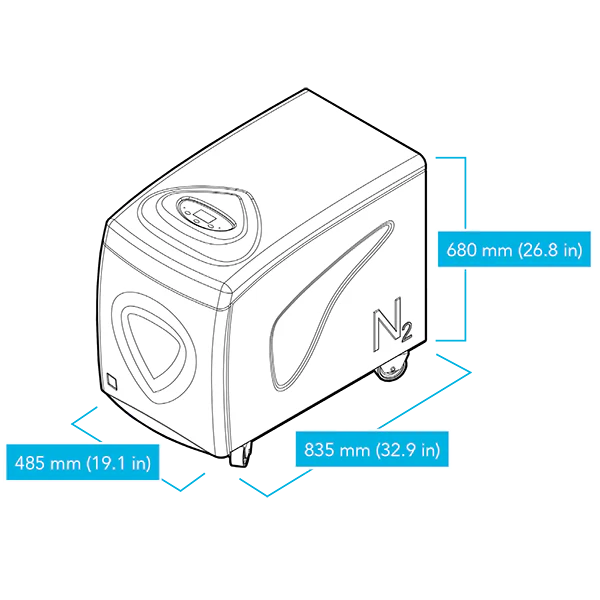

| Dimensions (mm) | 482 x 835 x 641 (L x W x H) |
| Weight | 90 kg net |
| Certification | CE, CSA, FCC |
