RAYPA Vertical Autoclave with Drying AE-DRY Series

RAYPA Vertical Autoclave with Drying AE-DRY Series - Image 2

RAYPA Vertical Autoclave with Drying AE-DRY Series

Price range: $11,057.20 through $26,901.60

Model

Clear

SKU: N/A Category: Autoclave Sterilizers Brand: RAYPA

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

AE-DRY Series vertical laboratory autoclaves with drying are specifically designed for sterilizing solid loads and enhancing laboratory productivity.

Solid loads are completely dry upon cycle completion
Economical, cost-effective, and with robust performance
Excellent construction materials

Vertical laboratory autoclaves with drying

The AE-DRY Series vertical autoclaves meet the sterilization needs of industrial, educational, and research facilities with the aim of boosting productivity and minimizing each sterilization cycle’s turnaround time. There is no need to dry the load in an external oven.

Designed for sterilizing bagged solid loads, porous and hollow objects, glass, plastics, metal utensils, and laboratory waste bags. They can also process liquids and culture media.

The versatility to process all types of loads, the final drying function, and the highest degree of automation, along with greater efficiency in resource consumption such as water, energy, and operational time, result in a cost-efficient solution for managing the laboratory’s workload.

Save time thanks to the final drying function

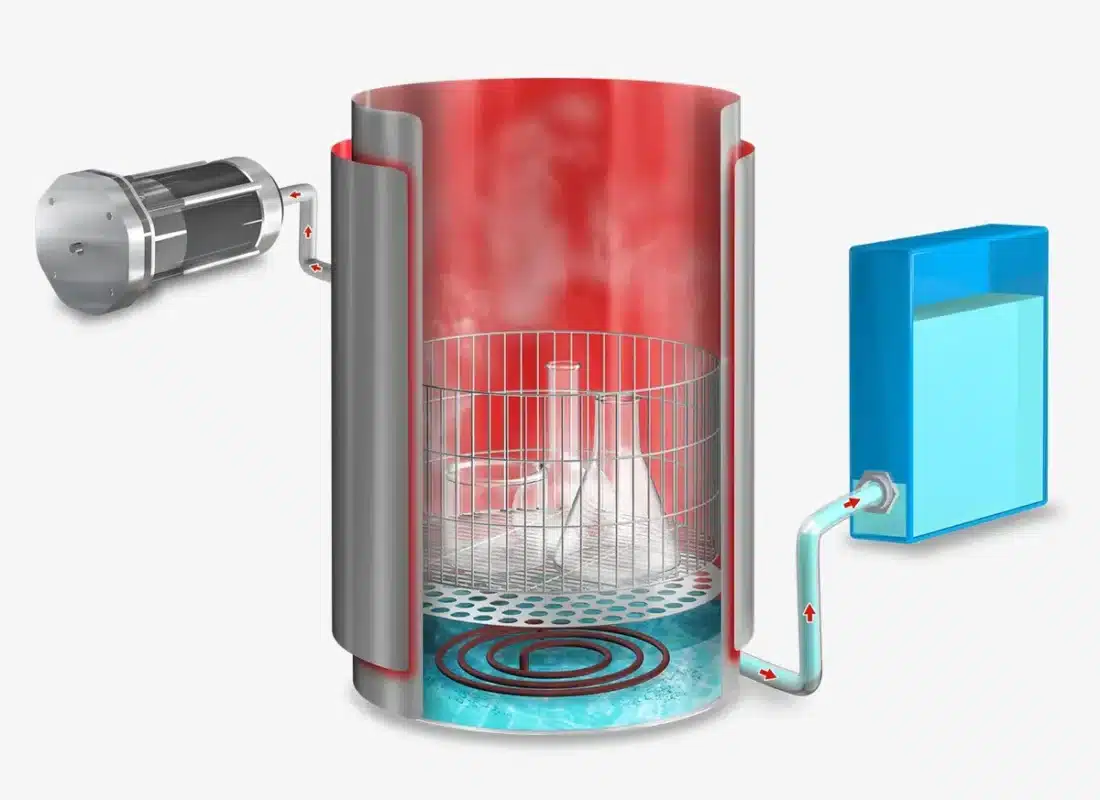

Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, eliminating the need to dry the load in an external oven, thus gaining convenience and saving handling time.

Optimized sterilizations and higher degree of automation

Mechanical purge through a vacuum pump to remove air pockets and improve steam penetration. Specific programs for liquids. Includes a bacteriological filter and an independent water tank that can be equipped with an automatic filling kit for seamless operation.

Specifications	AE-28-DRY	AE-50-DRY	AE-75-DRY	AE-110-DRY	AE-150-DRY
Total/usable volume of the chamber (L)	33/31	55/50	79/75	115/110	175/153
Usable dimensions of the chamber (Ø x H mm)	300 x 440	300 x 710	400 x 600	400 x 850	500 x 760
External dimensions (L x D x H mm)	505 x 580 x 1110	505 x 580 x 1290	610 x 700 x 1185	610 x 700 x 1435	750 x 820 x 1400
Loading height (mm)	795	975	870	1120	1085
Net weight (Kg)	75	95	123	150	235
Available powers (W)	2000 or 3200	3200 or 5000	3200 or 6000	4500, 6000 or 9000	6000 or 9000
Standard voltage*	230	230	230	400	400
Frequency (Hz)	50/60	50/60	50/60	50/60	50/60
*Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages.

General Features
Adjustable sterilization temperature	100 – 134ºC
Adjustable sterilization time	1 – 250 min
Adjustable drying time	3 – 99 min
Max. pressure	2,1 Barg

Sterilization Control System
Control type	Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe
Air purge system	Mechanical displacement by vacuum pump
Vacuum drying system	Vacuum pump plus heating jacket

Materials
External building material	AISI-304 stainless steel
Sterilization chamber material	AISI-316L stainless steel
Heating elements material	Incoloy® 825
Gasket material	Silicone rubber

Connections
Connection to PC	RS-232
Connection to printer	RS-232 or integrated

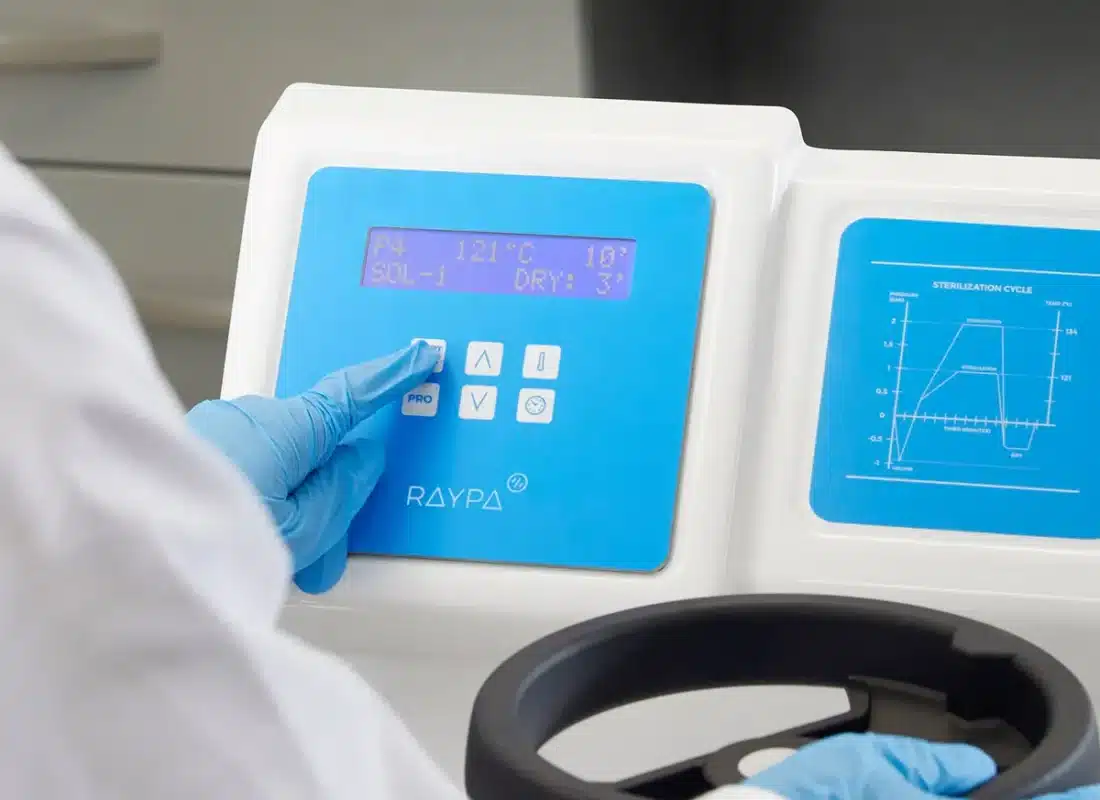

Programs and Interface
Number of programs	10 (4 preset and 6 user free)
Programmable auto-start	Up to 24h
Screen type	LCD display

Door and Safety
Opening door mode	Horizontal swiveling door with blocking wheel
Monitoring of sterilization parameters	Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values
Pressure display	Pressure gauge on control panel

Water Management and Drainage
Water management	Independent manually fed water tank that automatically feeds the sterilization chamber. Water returns automatically to the independent water tank after cycle is completed. Optional upgrade to fully automatic water feed directly from water network
Drainage system	A drainage connection and a manual valve for overflow and drainage of the independent water tank and a screw to manually clean the drainage filter and drain the sterilization chamber
