RAYPA Standard Media Preparators AE-MP Series

RAYPA Standard Media Preparators AE-MP Series - Image 2

RAYPA Standard Media Preparators AE-MP Series

Price range: $30,394.10 through $61,878.30

Model

Clear

SKU: N/A Category: Autoclave Sterilizers Brand: RAYPA

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Product Description

Automatic, safe, and efficient solution for preparing culture media.

Automatic preparation and fast dispensing
Cost savings, reduced preparation time, and decreased workload
Flexibility and scalability: 6 models and 4 modes of dispensing

Culture media preparators

The media preparators from the AE-MP Series optimize the workflow of microbiology and plant tissue culture laboratories by saving on costs, preparation time, and workload.

A single device encompasses the preparation, sterilization, fast cooling, and dispensation of high-quality culture media with excellent batch-to-batch reproducibility. Its design prevents contamination, gelation, solubility, or homogeneity issues, as well as burns.

The media preparators from the AE-MP Series are designed to reduce the total preparation time and provide large volumes of culture media. Choose the configuration that best suits your laboratory from among the 6 media preparator sizes and the 4 available dispensing modes. Additionally, the heating capacity of each model can be upgraded to drastically reduce the duration of the heating phase.

Streamline your preparation time, speed up dispensation and reduce workload

Enjoy much faster production times compared to the traditional autoclave method. Preparation volumes range from 2L to 90L, with dispensing speeds ranging from 7 mL/s to 100 mL/s. Select the dispensation temperature that best meets your requirements.

Hassle-free cleaning with multiple automated functions

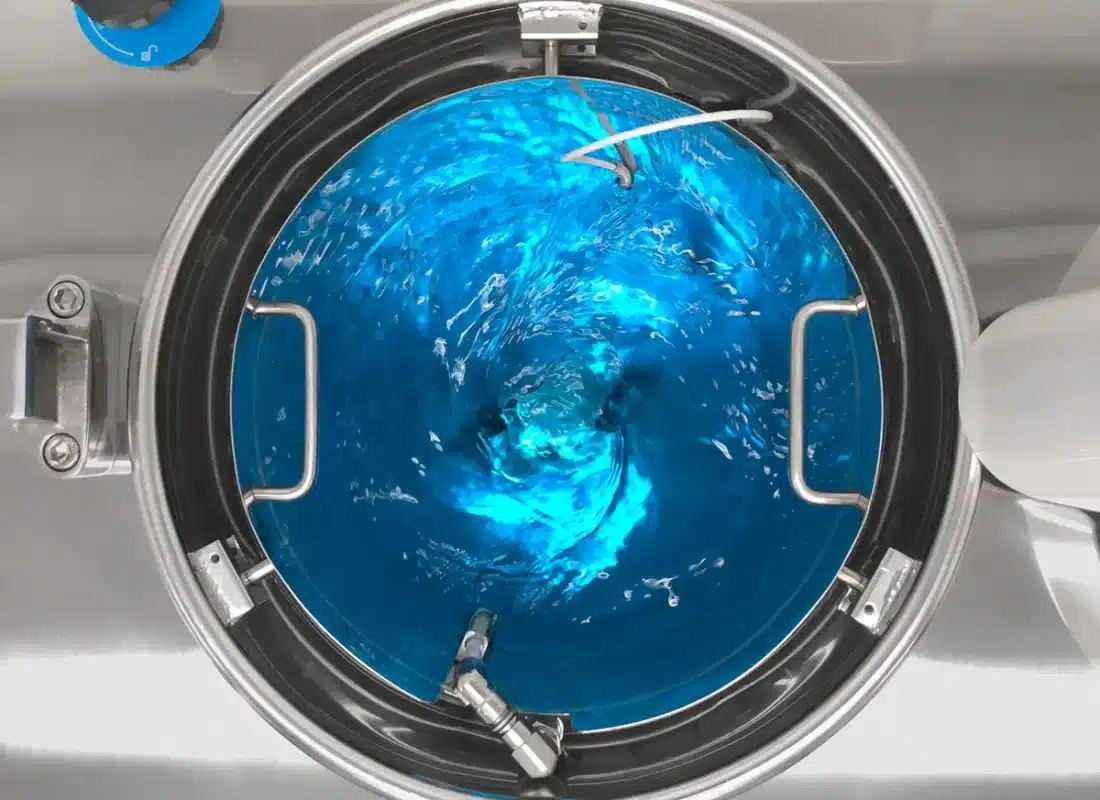

Dispensing lines can be cleaned and disinfected before, during, and after the dispensation phase with steam pulses that reach the entire length of the line to prevent contamination. You can pause the dispensation phase to avoid gelling issues. The inner vessel features ergonomic handles and can be easily removed.

References	TLV-40MP	TLV-60MP	TLV-80MP	TLV-100MP	AE-20-MP-10L	AE-20-MP	AE-40-MP	AE-60-MP	AE-80-MP	AE-100-MP
Maximum capacity for preparing culture media (L)	36	54	72	90	8	18	36	54	72	90
Minimum capacity for preparing culture media* (by F0 or by time) (L)	5 or 5	10 or 10	20 or 20	20 or 20	2 or 5	2 or 10	5 or 20	10 or 30	20 or 50	20 or 70
Duration of heating phase from 25 to 121ºC with max. volume (min)	40 – 55	30 – 45	35 – 55	60 – 65	70 – 75	40 – 80	55 – 80	30 – 60	35 – 80
Duration of cooling phase from 121 to 60ºC with max. volume (min)	15 – 20	15 – 20	20 – 25	20 – 25	10 – 15	15 – 20	15 – 20	15 – 20	20 – 25	20 – 25
Total cycle duration (min)	70 – 80	85 – 95	65 – 90	70 – 100	85 – 100	100 – 115	70 – 120	85 – 120	65 – 105	70 – 125
External dimensions (L x D x H mm)	750 x 980 x 1080	750 x 980 x 1300	850 x 1080 x 1200	850 x 1080 x 1340	615 x 815 x 735	615 x 815 x 735	615 x 815 x 1100	615 x 815 x 1320	755 x 935 x 1285	755 x 935 x 1385
Inner vessel dimensions (Ø x H mm)	330 x 461	330 x 696	420 x 594	420 x 734	210 x 236	330 x 236	330 x 461	330 x 696	420 x 594	420 x 734
Net weight (Kg)	195	205	238	265	125	128	135	155	244	265
Available power options** (kW)	12	15	20 or 30	20 or 30	3	3	6 or 12	9 or 15	15, 20 or 30	15, 20 or 30
Standard voltage** (V)	400	400	400	400	230	230	400	400	400	400
Frequency (Hz)	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
*Other voltages and electrical configurations available on request.
