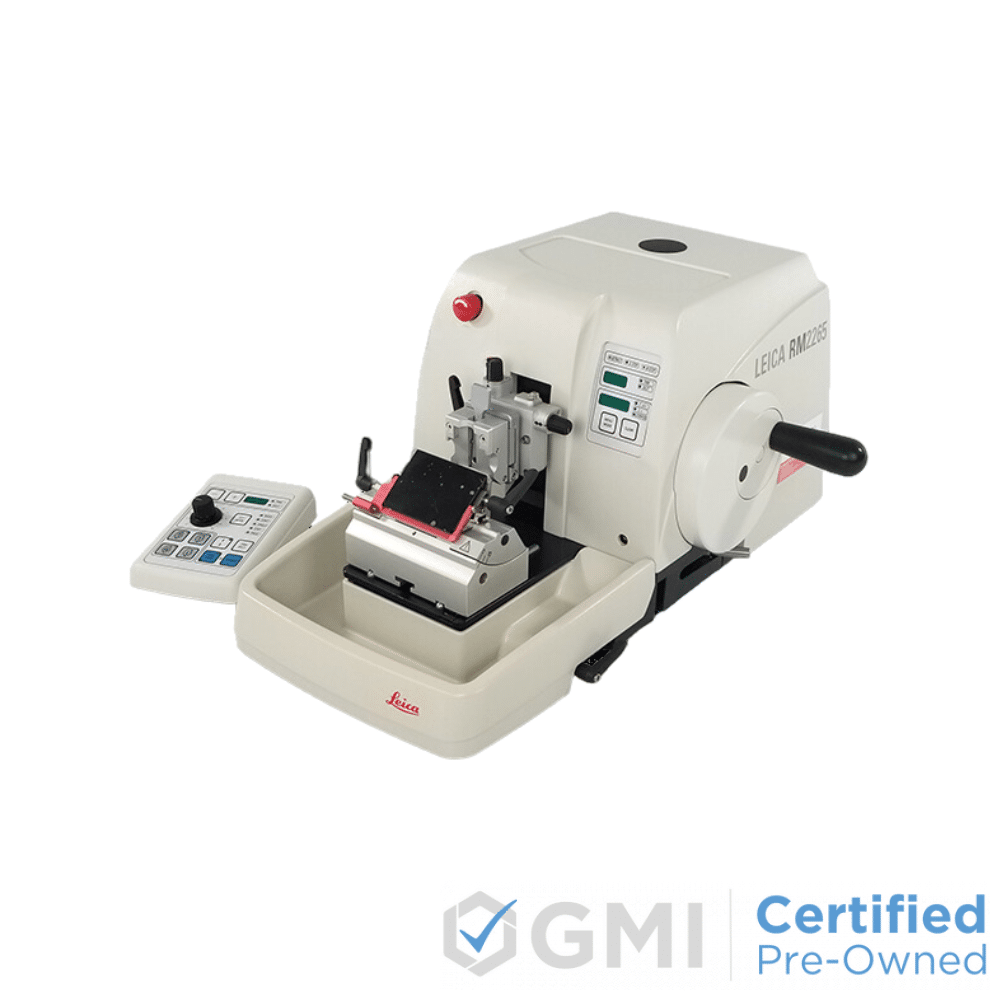

Leica RM2265 Largescale, Fully Automated Microtome

Request Quote

Categories: , Brand:
Not sure which configuration is right for your application?  Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?

Product Description

This microtome represents the apex of the RM2200 series, excelling in the precision sectioning of a wide range of specimen types, from soft to hard, and catering to both routine biomedical research and specialized applications. Boasting six meticulous sectioning modes, which include both motorized and manual options, it provides unprecedented control. The microtome’s versatility is further elevated by a multitude of optional accessories, expanding its capabilities, while its unobstructed work area and ergonomically designed control panel ensure efficient and comfortable operation. Prioritizing safety, the microtome incorporates multiple locking mechanisms and an emergency stop feature.



Specifications

Section Thickness Setting Range: 0.25 µm – 100 µm
Setting Values:
  • 0.25 µm
  • 0.5 µm – 5.0 µm in 0.5 µm increments
  • 5 µm – 20 µm in 1 µm increments
  • 20 µm – 60 µm in 5 µm increments
  • 60 µm – 100 µm in 10 µm increments
Trimming Section Thickness Setting Range: 1 µm – 600 µm
Setting Values:
  • 1 µm – 10 µm in 1 µm increments
  • 10 µm – 20 µm in 2 µm increments
  • 20 µm – 50 µm in 5 µm increments
  • 50 µm – 100 µm in 10 µm increments
  • 100 µm – 600 µm in 50 µm increments
Specimen Retraction Manual Operation: Programmable from 5 – 100 µm in 5 µm increments; can be turned off
Motorized Operation: Varies with the sectioning speed; can be turned off
Electronic Coarse Feed 300 µm/s or 900 µm/s
Sectioning Speed Range 0.5 – 420 mm/s
Horizontal Specimen Feed Approx. 30 mm
Vertical Specimen Stroke 70 mm
Sectioning Modes 6 total
2 manual modes (regular and rocking mode)
4 motorized modes (continuous, single or step stroke, and program mode)
Maximum Specimen Size (L x H x W) 50 x 60 x 40 mm (1.96 x 2.36 x 1.57 in.)
Specimen Orientation Horizontal: 8°, Vertical: 8°
Power Draw Max 340 VA
Nominal Supply Voltages 100 V / 120 V / 230 V / 240 V
Nominal Frequency 50/60 Hz
Dimensions (Basic Instrument) (L x W x H): 563 x 413 x 305 mm (22.16 x 16.25 x 12 in.)
(Without magnifier or microscope carrier)
Weight Approx. 37 kg (Approx. 81 lbs)
Dimensions (Control Panel) (W x D x H): 121 x 166 x 50 mm (4.76 x 6.53 x 1.96 in.)
Weight: Approx. 0.68 kg (Approx. 1.45 lbs)
