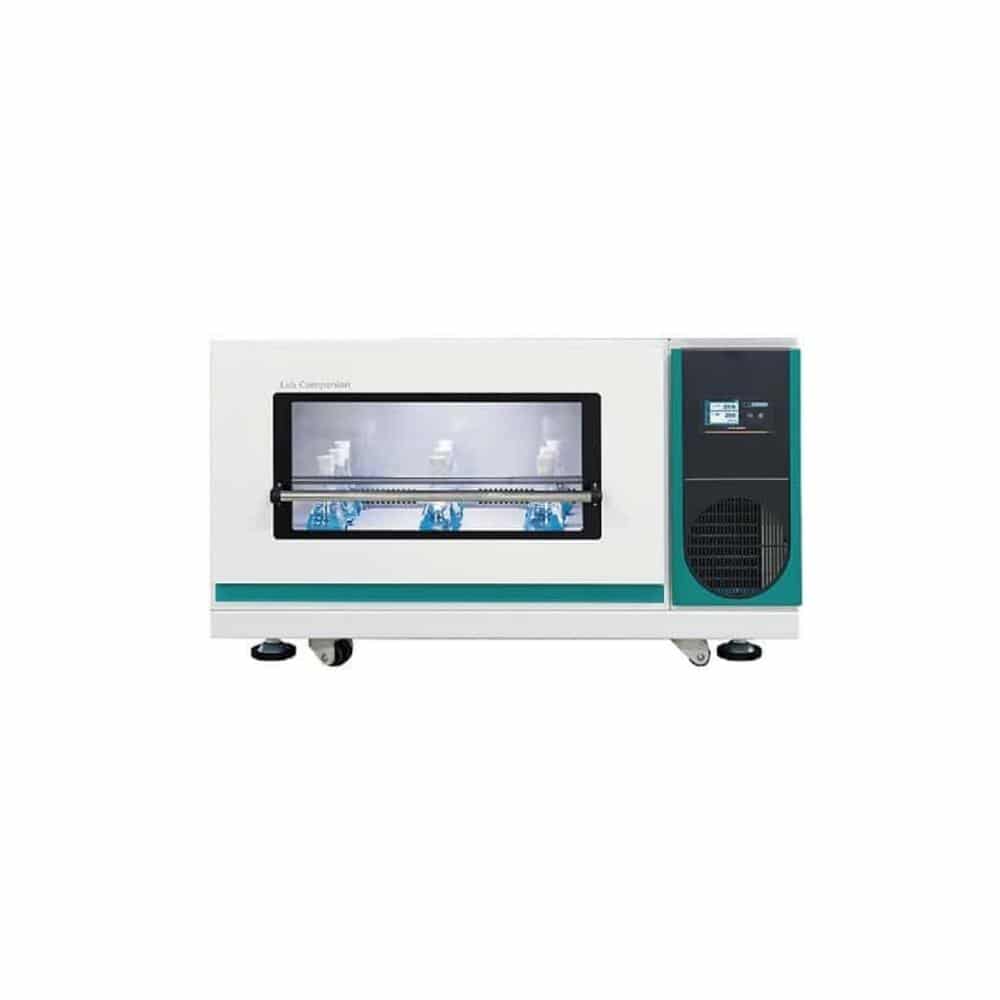

Jeio Tech Lab Companion ISS-7100 / ISS-7100R Stackable Incubated Shaker
$12,995.00 – $14,495.00
18-Month Factory Warranty Included
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description

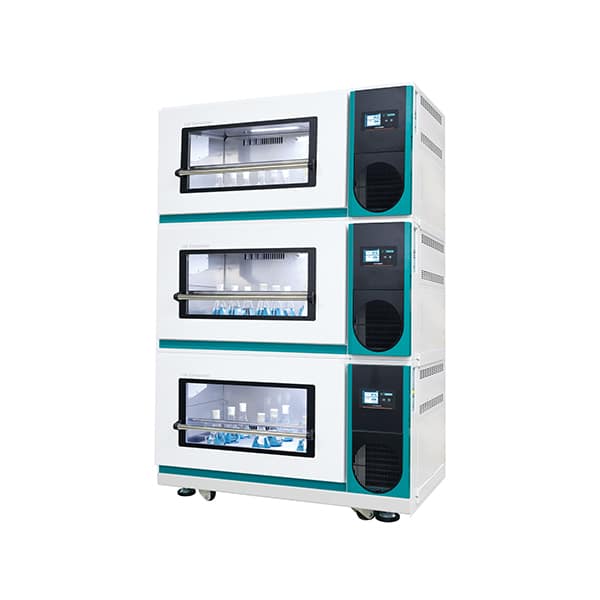

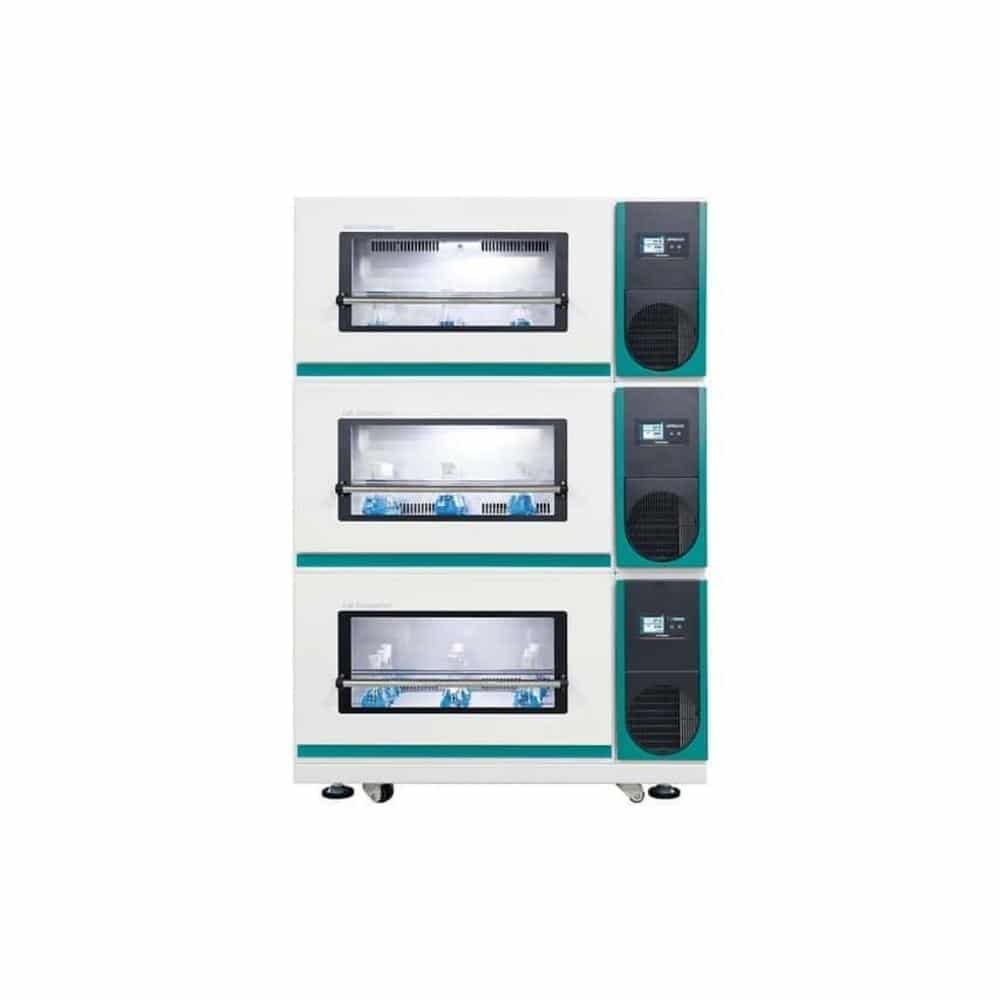

Multi-Stackable type
Maximal space-saving multi-stackable model
- Maximum triple-stacked for space saving.
- Strong DD motor for large-capacity.
- 120V, 60Hz
Structural Functional Features
- Large-capacity triple stackable incubated shaker.
- Up to 80°C, 400rpm enables experimental conditions for various applications.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Shaking structure with minimized vibration.
- Convenient to change samples with glide-up door.
- Stable shaking of high-load samples. (patent registered: 10-1678160)
Use Convenience Features
- Accurate rpm and temperature control through temperature autotuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Countdown timer (999 hours 59 minutes) of shaking operation.
- Intuitive operation with color touch display.
- High brightness / low-power LED illumination makes it easy to observe inside.
- Spill drain port for internal cleanliness and easy maintenance.
- Stand with adjustable feet to ensure a level installation, and retractable casters to allow positioning prior to installation.
(Retractable Foot Caster)
Outstanding Safety
- Electronic over temperature protection system. (A-OT, advanced over temperature limiter)
Independent precision temperature sensor and controller provides more secure and reliable over temperature protection. - Conventional over-temperature protection system. (B-OT, backup over temperature limiter) A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
- Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
Let our team of experts help you find the perfect equipment for your application and budget, schedule a free meeting now:
Technical Specifications
| Model | ISS-7100 | ISS-7100R | ||||||||
|
Temperature
|
Range (℃ / ℉) | Amb. +10 to 80 / Amb. +18 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
|||||||
| Fluctuation at 37℃ in flask (±℃ / ℉) |
0.1 / 0.18 | |||||||||
| Variation at 37℃ in flask (±℃ / ℉) |
0.5 / 0.90 | |||||||||
| Refrigerator (Hp) | – | 1/6Hp | ||||||||
|
Shaking system
|
Motion type | Orbital | ||||||||
| Amplitude size (mm / inch, dia.) | 25.4 / 1 | |||||||||
| Speed range (rpm) | 30 to 400 (stackable2) : 30 to 250) | |||||||||
| Accuracy | ±1% of set speed (>100rpm) / ±1 (≤100rpm) | |||||||||
| Timer | 1 min. to 999 hr 59 min. | |||||||||
| Max. Load (kg / Ibs) | 20 / 44.1 at 400 rpm 15 / 33.1 at 250 rpm (stacked) 20 / 44.1 at 200 rpm (stacked) |
|||||||||
|
Dimension
|
Volume (L / cu ft) | 198 /7.1 | ||||||||
| Platform (W×D, mm / inch) | 755×520 / 29.7×20.5 | |||||||||
| Interior (W×D×H, mm / inch) | 809×624×393 / 31.9×24.6×15.5 | |||||||||
| Exterior1) (W×D×H, mm / inch) | 1310×996×755/ 51.6×39.2×29.7 | |||||||||
| Net weight (kg / Ibs) | 365 / 804.7 | 375 / 826.7 | ||||||||
| Electrical requirements (230V) | 60Hz, 3.7A | 50Hz, 3.7A | 60Hz, 5.6A | 50Hz, 5.6A | ||||||
| Cat. No. | AAH 238132K |
AAH 238132K |
AAH 238232K |
AAH 238232K |
||||||
| Electrical requirements (120V) | 60Hz, 7.1A | 60Hz, 10A | ||||||||
| Cat. No. | AAH238115U | AAH238215U | ||||||||
|
※ Above specifications can be changed without prior notice.
※Temp. change may occur during automatic defrost. (for ISS-3075R/4075R) 1) Main body dimension with retractable foot caster. 2) Stacked with stand or products. |
||||||||||
Technical Specifications
| Model | ISS-7100 | ISS-7100R | ||||||||
|
Temperature
|
Range (℃ / ℉) | Amb. +10 to 80 / Amb. +18 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
|||||||
| Fluctuation at 37℃ in flask (±℃ / ℉) |
0.1 / 0.18 | |||||||||
| Variation at 37℃ in flask (±℃ / ℉) |
0.5 / 0.90 | |||||||||
| Refrigerator (Hp) | - | 1/6Hp | ||||||||
|
Shaking system
|
Motion type | Orbital | ||||||||
| Amplitude size (mm / inch, dia.) | 25.4 / 1 | |||||||||
| Speed range (rpm) | 30 to 400 (stackable2) : 30 to 250) | |||||||||
| Accuracy | ±1% of set speed (>100rpm) / ±1 (≤100rpm) | |||||||||
| Timer | 1 min. to 999 hr 59 min. | |||||||||
| Max. Load (kg / Ibs) | 20 / 44.1 at 400 rpm 15 / 33.1 at 250 rpm (stacked) 20 / 44.1 at 200 rpm (stacked) |
|||||||||
|
Dimension
|
Volume (L / cu ft) | 198 /7.1 | ||||||||
| Platform (W×D, mm / inch) | 755×520 / 29.7x20.5 | |||||||||
| Interior (W×D×H, mm / inch) | 809×624×393 / 31.9×24.6×15.5 | |||||||||
| Exterior1) (W×D×H, mm / inch) | 1310×996×755/ 51.6x39.2x29.7 | |||||||||
| Net weight (kg / Ibs) | 365 / 804.7 | 375 / 826.7 | ||||||||
| Electrical requirements (230V) | 60Hz, 3.7A | 50Hz, 3.7A | 60Hz, 5.6A | 50Hz, 5.6A | ||||||
| Cat. No. | AAH 238132K |
AAH 238132K |
AAH 238232K |
AAH 238232K |
||||||
| Electrical requirements (120V) | 60Hz, 7.1A | 60Hz, 10A | ||||||||
| Cat. No. | AAH238115U | AAH238215U | ||||||||
|
※ Above specifications can be changed without prior notice.
※Temp. change may occur during automatic defrost. (for ISS-3075R/4075R) 1) Main body dimension with retractable foot caster. 2) Stacked with stand or products. |
||||||||||
