Product Description

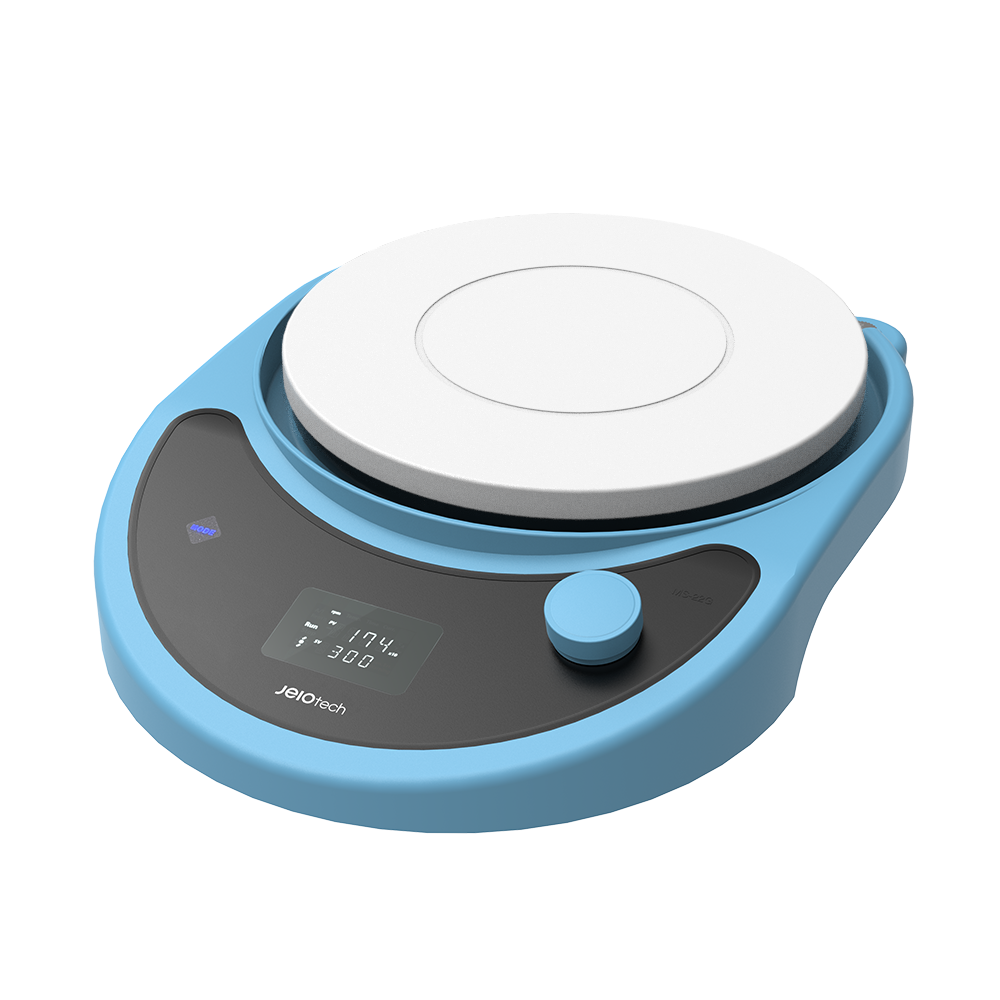

Jeio Tech MS-G Digital Magnetic Stirrer offers advanced performance, durability, and user-friendly operation for a wide range of laboratory mixing applications. Designed with excellent chemical resistance and a spill-proof body, it ensures long-term reliability even in harsh environments. The powerful permanent magnet delivers stable and consistent stirring, while the BLDC motor ensures quiet, safe, and maintenance-free operation. The digital control panel allows precise speed adjustment, along with timer and program functions for repeatable and controlled mixing. Black and white covers are included for better observation of solution clarity, and an optional clamp rod can be added to support various lab configurations. The MS-G is a versatile and dependable solution for precise, high-quality stirring.
Features
Features 1
- Structural Functional Features
Features 2
- Maintains accurate speed with feedback control even when sample viscosity and amount change.
- Polypropylene (PP) material with excellent chemical resistance.
- Minimized vibration during high-speed stirring with rubber feet.
- Use of special permanent magnets to maintain stirring performance.
- Use Convenience Features
Features 3
- Simultaneous display of set speed and actual speed.
- Timer (up to 99 hours 59 minutes) and program operation function. (2-step repeat pattern)
- Clamp Rod (option) can be added to the main body to fix other equipment such as burette, sensor, etc.
- 4 models provided according to the quantity and size of stirring.
- The two types of black and white covers are very useful for observing changes according to samples.
- Outstanding Safety
Features 4
- Safety ensured by BLDC motor that does not generate sparks.
- Spill-proof design minimizes inflow solution into device.
- Prevents samples splash with smooth operation at the start and stop of stirring.
- Provides silicon-based top plate cover to prevent slipping accidents of glassware.
Specifications
| Specification | Value |
|---|---|
| Stirring | |
| Speed range (rpm) | 30 to 2000 |
| Capacity (H2O, L) | 5 |
| Speed stability (± %) | 1 |
| Magnetic bar, Max. (L x Ø, mm) | 50 x 10 / 1.97 x 0.39 |
| Load, Max. (kg) | 25 / 55.12 |
| Material | |
| Top plate | Polypropylene with silicone cover |
| Body | Polypropylene |
| Motor type | BLDC (Brushless Direct Current) |
| Dimension | |
| Top plate (Ø or W x D, mm / inch) | 220 / 8.66 |
| Exterior (W x D x H, mm / inch) | 260 x 355 x 72 / 10.23 x 13.98 x 2.83 |
| Net weight (kg / lbs) | 1.8 / 3.97 |
| Electrical requirements | AC 100 ~ 240V, 50 / 60 Hz |
| Power consumption (W) | 6 |
Application
Magnetic stirrers are ideal for applications that require efficient, gentle mixing. Commonly used in laboratories for preparing solutions, diluting samples, and maintaining suspensions, they provide quiet, reliable stirring with minimal contamination risk. These stirrers are especially suited for samples in biological, chemical, and analytical procedures where precise agitation is needed without heat exposure.
