Whenever highly pure cannabinoids should be produced from Cannabis plants or raw extracts, preparative chromatography is the most versatile method to choose. Take a look at the exemplary developed method to purify cannabidiol (CBD) from CBD oil.

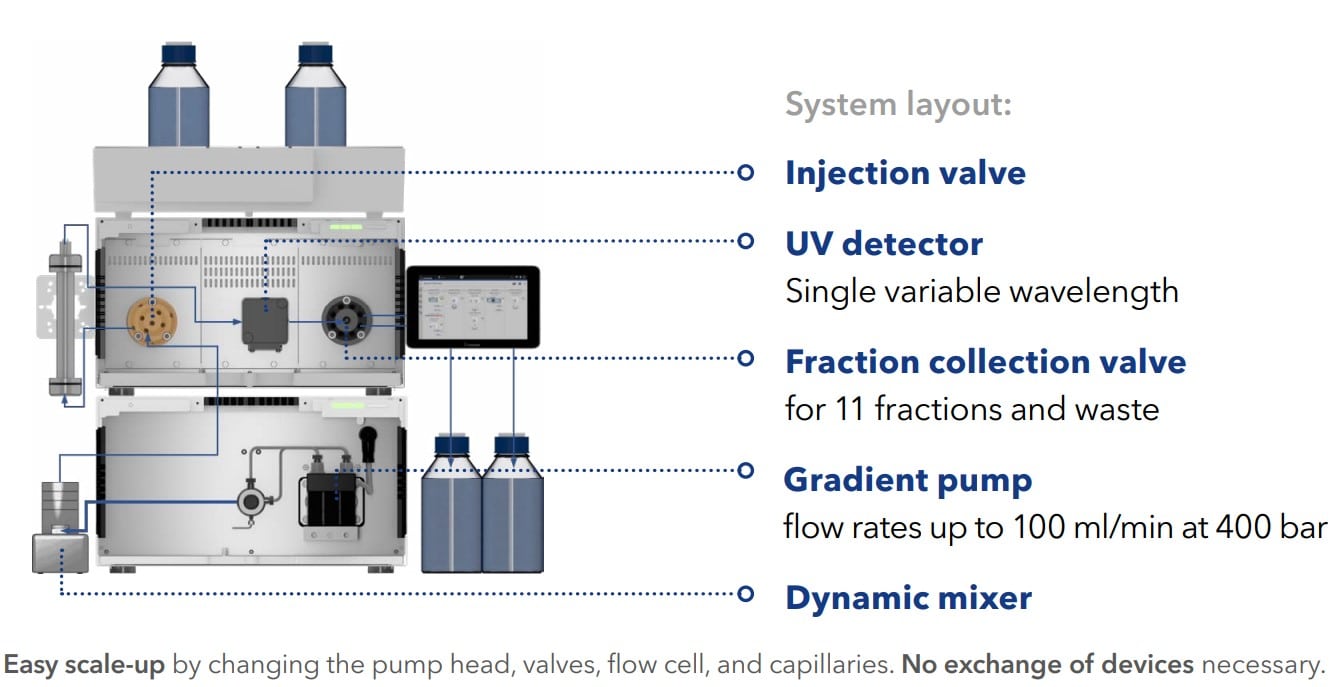

Due to its modular design, the system can be easily up scaled to higher flow rates by simply replacing the pump head, valves, flow cell and capillaries. The basic devices do not need to be replaced. The next scale-up level allows flow rates up to 200 ml/min at 200 bar. The 1/16″ capillaries are exchanged for 1/8″ capillaries. Higher sample volumes are injected via a channel of the gradient pump. The modules of the HPLC docking station and the valves are exchanged within minutes and allow to flexibly adapt the system to changing purification tasks.
System type | Pilot |
---|---|
Max. flow rate | 100 ml/min |
Gradient | lpg |
Maximum delivery pressure [psi] | 5800 psi |
Maximum delivery pressure [bar] | 400 bar |
Maximum delivery pressure [MPa] | 40 MPa |
Detector | Variable single wavelength detection UV/VIS |
Injection | automatic injection |
Fractionation | multi-position valve |
Software | PurityChrom |
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
Parts Covered | ||||
Labor Covered | ||||
Unlimited Remote Tech Support | ||||
Depot Repair | ||||
Depot Preventative Maintenance |
