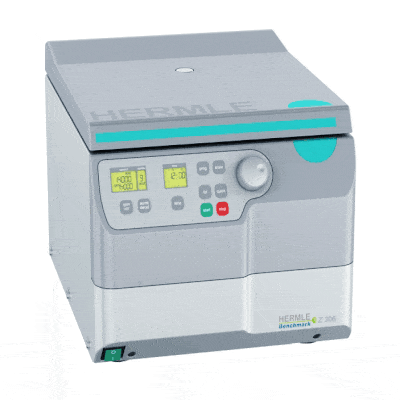

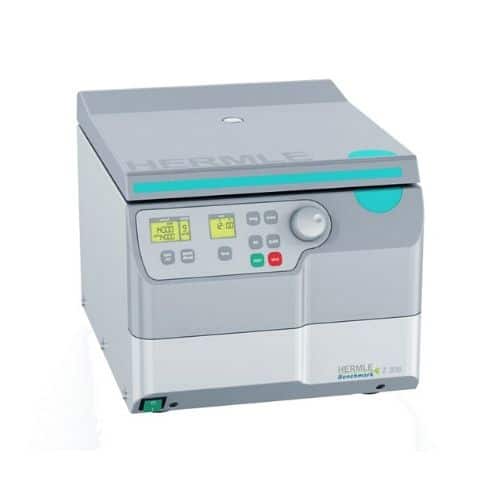

Hermle Z306 – Universal Centrifuge
- Accepts tubes up to 50ml
- Compact, 11 x 14.5 inch footprint
- Suitable for urine and blood separations (including Platelet Poor Plasma)
- Optional adapters for all common blood collection tubes
- 3-Year Factory Warranty Included
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Hermle Z306 – Universal Centrifuge
The Z306 is a compact and economical centrifuge with a series of rotor options making it well suited for clinical, industrial, and research laboratories. Despite the impressive capacity of the 4 x 145ml rotor (capable of supporting 8 x 50ml or 12 x 15ml with the use of rotor inserts), the Z306 is surprisingly compact with a footprint of just over 14 x 18 inches. An optional rotor is also available for microplates (2 x 3 microplates), positioning this model as one of the smallest, and least expensive centrifuges capable of high speed microplate centrifugation.
Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.
Specifications
| Speed Range | : | 200 to 14,000 rpm |
| Max. RCF | : | 18,624 xg |
| Max. Capacity | : | 4 x 145 ml |
| Dimensions | : | 13.9 x 18.6 x 13 in. (35.3 x 47.2 x 33 cm.) |
| Timer | : | up to 99 hr, 59min and continuous |
| Weight | : | 66 lbs (30 kg) |
| Electrical | : | 120V, 60HZ, 240W |
Rotor Options
| Z306 | Z306 Universal Centrifuge, without rotor |
| Z306-100 | Swing Out Rotor, Economy, 4 x 145ml, (4,500rpm/3,350xg) accepts 1.5ml up to 145ml tubes, requires inserts (see pdf literature for a full listing) |
| Z326-100H | Swing Out Rotor, with hermetically sealed buckets 4 x 100ml, (4,000rpm/2,486xg) accepts 1.5ml up to 100ml tubes, requires inserts (see pdf literature for a full listing) |
| Z326-100H-AC | Swing Out Rotor, without buckets 4 x 100ml, (4,000rpm/2,486xg) accepts 1.5ml up to 100ml tubes, requires inserts (see pdf literature for a full listing) |
| Z326-02MP | Swing Out Rotor, 2 x 3 Microplates (4,500 rpm/ 2,716 xg) |
| Z326-MPCA | NEW! Universal, 3 place chamber slide and 35/60mm dish adapter for microplate carriers 2/pk |
| Z326-2420 | Rotor, 24 x 1.5/2.0ml (14,000rpm/18,624xg) |
| Z326-2420H | Rotor, 24 x 1.5/2.0ml, Hermetically sealed (14,000rpm/18,624xg) |
| Z326-3020H | Rotor, 30 x 1.5/2.0ml Hermetically sealed (12,000rpm/15,131xg) |
| Z326-1215 | Rotor, 12 x 15ml (6,000rpm/4,427xg) |
| Z326-3015 | Rotor, 30 x 15ml (4,500rpm/2,830xg) |
| Z326-0650-LS | Rotor, 6 x 50ml (6,000rpm/4,427xg) |
[/row]
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
