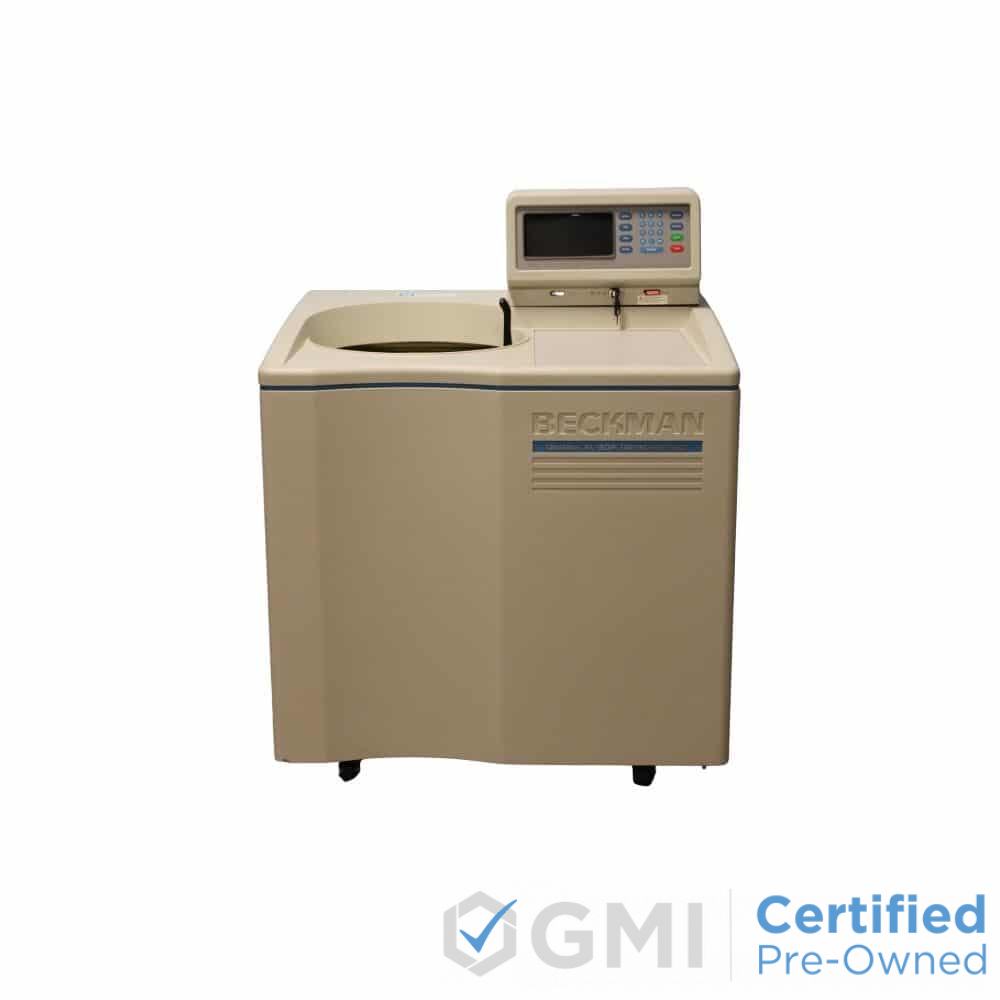

Beckman Optima XL-80K Ultracentrifuge

Get Price

Full warranties available up to 2 years

SKU: 8043-30-1211 Category: Ultracentrifuge Centrifuges Brand: Beckman

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation Have One To Sell?

Product Description

Maximum speeds of 80,000 rpm
User-customized programs
ESP™ Efficient Sedimentation Program
Microprocessor-controlled system
Imbalance-tolerant drive
High-torque direct drive induction motor
Full Proof of Performance Certification Included

The Beckman Optima™ XL-80 K Ultracentrifuge is designed to produce strong centrifugal forces to achieve efficient particle separations. Capable of 80,000 rpm maximum speed, this high performance centrifuge delivers the fastest separation rates in the minimum amount of time. This Beckman centrifuge employs the ESP™ Efficient Sedimentation Program, a system that stimulates gradient formation and accelerates the separation of sample components through a wide selection of rotors.

The Optima™ XL-80 K centrifuge is able to perform common centrifugation-related calculations such as CsCl speed reductions and run conversions. Also, the imbalance-tolerant drive allows visual balancing of rotor loads, while eliminating the need for users to weigh individual samples.

Equipped with a microprocessor-controlled system similar to all other Optima™ XL Series units, the XL-80 K enables fast, interactive, and menu-driven operation using advanced software functions and simple user setup. Additionally, the unit provides a program library which can accommodate up to nine standard programs.

This Beckman centrifuge’s accel/decel profiles allow immediate customization of operating conditions. The dual display of “Set” and “Actual” run parameters also let users easily monitor run conditions. Other attributes of the Beckman Optima™ XL-80 K Centrifuge include an air-cooled drive and thermoelectric heating/cooling system, a high-torque direct drive induction motor, and a buit-in rotor and tube catalog.

Beckman Optima XL-80K Ultracentrifuge Specifications


Dimensions (H x W x D)	120.7 cm x 94.0 cm x 67.3 cm / 47.5 in. x 37 in. x 26.5 in.
Weight	465 kg (1025 lb)
Maximum Heat Dissipation into the Room	1.0 kW (3400 Btu/hr)
Humidity Restrictions
Noise Level Measured 0.91 m (3 ft) in Front of the Instrument	57 dBa
Installation Category	II
Pollution Degree	2
Set Speed	1000 to maximum speed1 in increments of 100 rpm speed control. Actual rotor speed will be ±20 rpm of the set speed (above 1000 rpm)
Set Time	Up to 999 hours and 59 minutes; HOLD for runs of unspecified length
Time Display	Indicates time remaining in timed runs, time elapsed in HOLD runs, and estimated time remaining in ?2t runs
Rotor Temperature	0 to 40°C in increments of 1°C
Temperature Control	±0.5°C of set temperature
Temperature Display	Indicates rotor temperature in increments of 0.1°C
Temperature Stability	Within 0.3°C after equilibration ?2t
Set ?2t	Up to 9.99 × 1014 radians squared per second
w2t Display	Shows the accumulated ?2t to three significant digits (in exponential notation)
Acceleration	Nine slow acceleration profiles, or maximum acceleration from 0 rpm to set speed
Decleration	Nine slow deceleration profiles, no brake, or maximum deceleration from set speed to 0 rpm
Operation	Standard or programmed; instrument memory can store up to nine individual programs and one sequential program of up to five steps
Key Switch	Used to select normal, zonal, or locked operation
