Product Description
- Frequency-controlled, air-cooled direct-drive induction motor
- CFC-free cooling system
- Overspeed safety system
- Dual purpose digital display
- GMI Certified Pre-Owned (Eligible for a 1-Year Warranty)

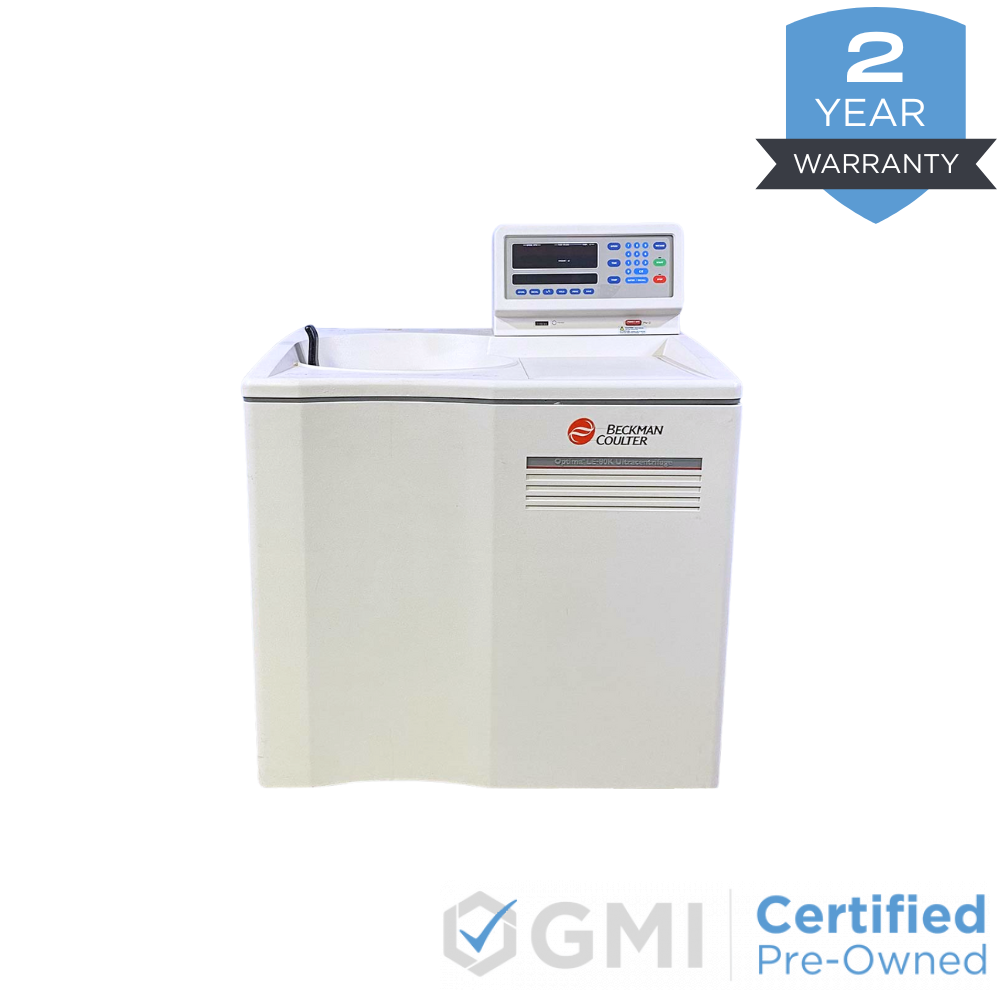

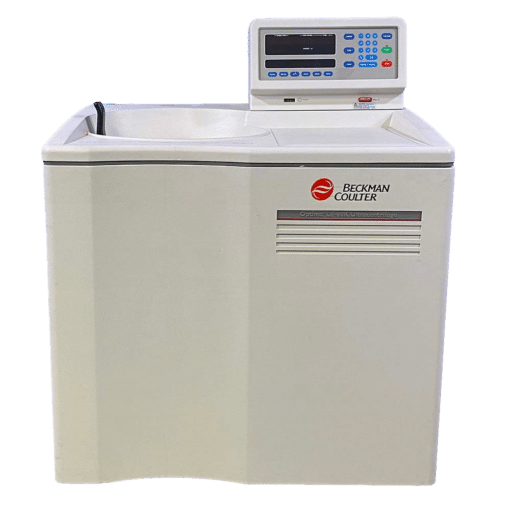

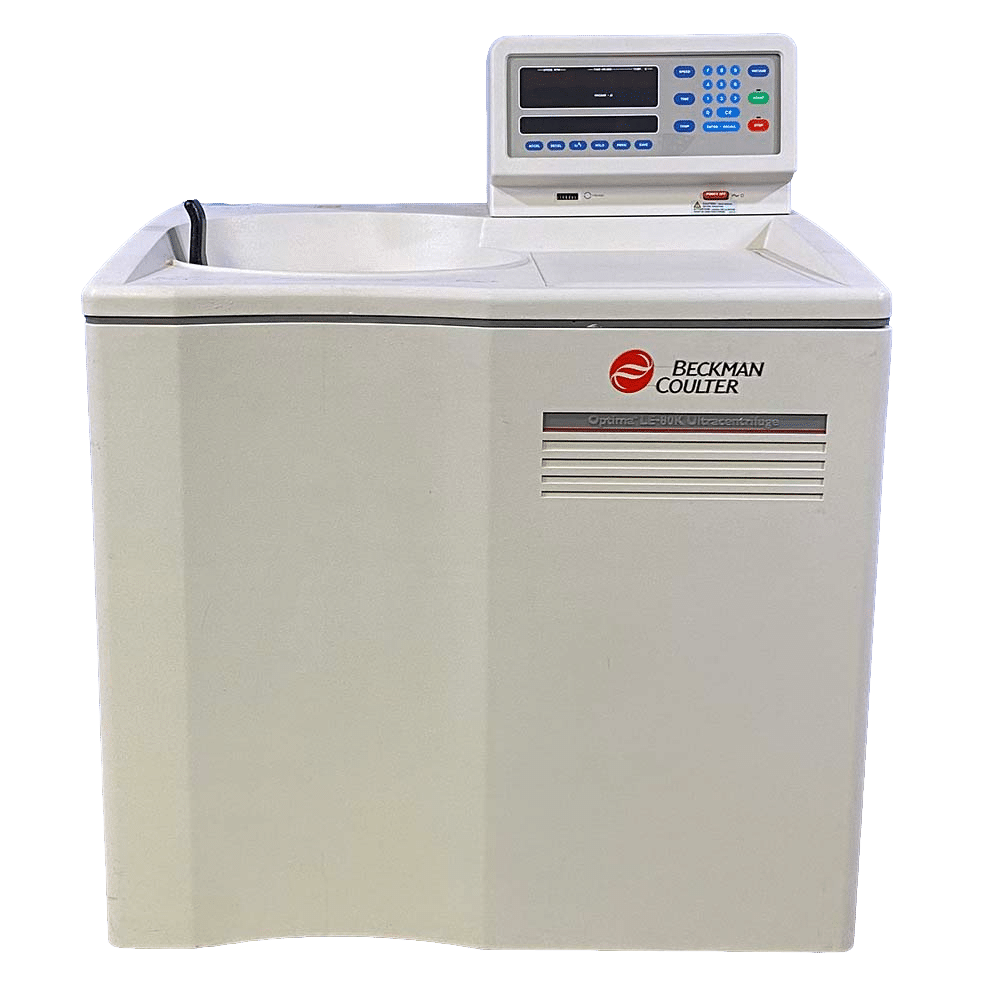

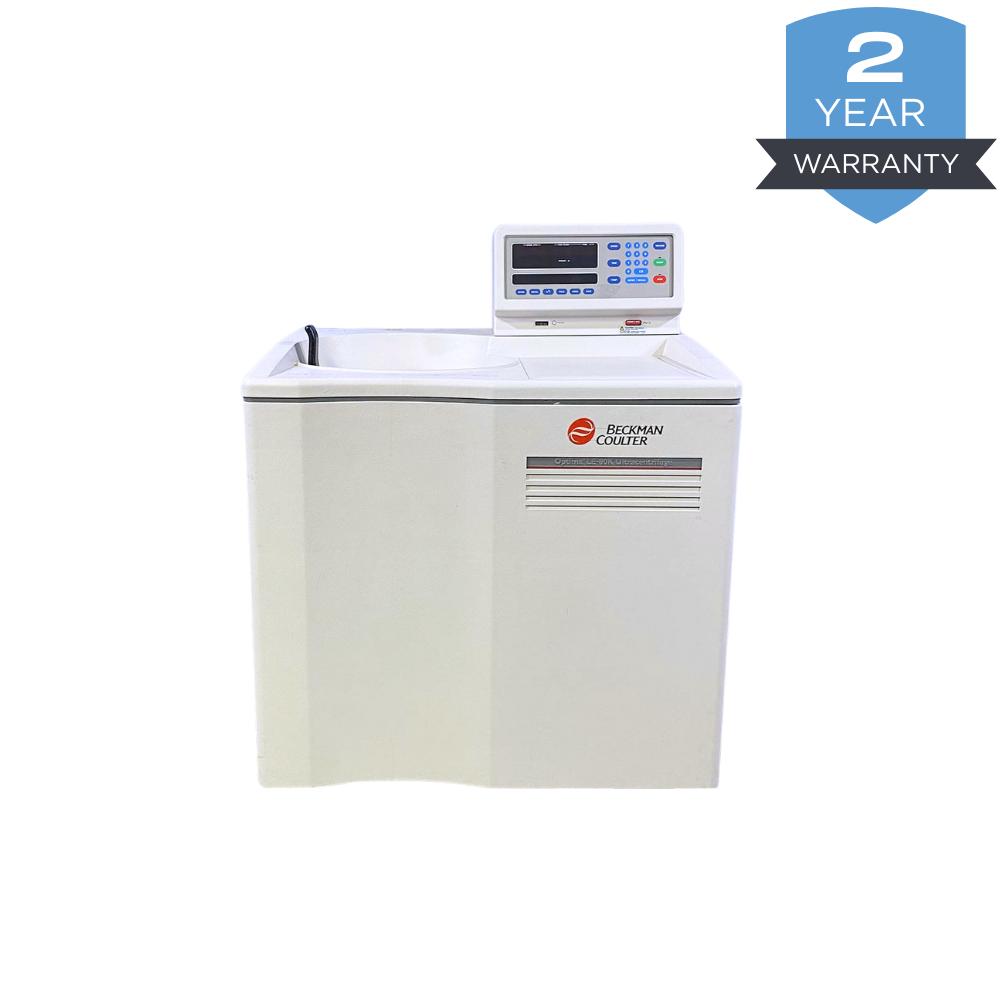

The Beckman Optima™ LE-80K Ultracentrifuge offers the fastest separations possible in the minimum amount of time with its performance capability of up to 80,000 rpm. This versatile model is compatible with a wide range of superior rotors and tubes. Capable of rapid run times, the Optima™ LE-80 K is perfect for a broad range of applications.
Featuring a high tolerance of rotor imbalance, this Beckman centrifuge uses a frequency-controlled, air-cooled, direct-drive induction motor that requires no brushes or gears. Operators are assured of smooth and quiet performance with this externally forced-air cooled and internally oil cooled unit.
Equipped with easy-to-use, environment-friendly and microprocessor–based control cooling systems, the Beckman LE-80 K eliminated the use of CFCs and other dangerous liquid refrigerants. This Optima centrifuge is operated through a keypad control panel, and digital display which shows parameters including rotor speed, run time, rotor temperature, w2t value, and selected program number. The display has a dual purpose, indicating both actual values/conditions and set values.
Other features of the Beckman Optima™ LE-80 K centrifuge include automatic standby mode, overspeed and purge system, LED run indicators, and diagnostic messages. Its design includes a high strength structural steel chamber door with a solenoid interlock which prevents it from opening during operation. The LE-80K has an aluminum rotor chamber, coated with a chemical-resistant epoxy finish.
Technical Specifications
Dimensions (H x W x D) | 47.5 in. x 37 in. x 26.5 in. (120.7 cm x 94.0 cm x 67.3 cm) |
Weight | 1025 lbs (465 kg) |
Maximum Heat Dissipation into the Room | 1.0 kW (3400 Btu/hr) |
Noise Level | 57 dBa |
Installation Category | II |
Pollution Degree | 2 |
Set Speed | 1000 rpm to 80 000 rpm in increments of 100 rpm |
Speed Control | Actual rotor speed will be +/- 50 rpm of the set speed (above 1000) |
Speed Display | Indicates rotor speed in increments of 10 rpm at speeds below 1000 rpm, and increment of 100 rpm at speeds above 1000 rpm |
Set Time | Up to 99 hours and 59 minutes; HOLD for runs of unspecified length |
Time Display | Indicates time remaining in timed runs, time elapsed in HOLD runs, or estimated time remaining in ?2t runs |
Rotor Temperature | |
Set Temperature | 0 to 40 deg C in increments of 1 deg C |
Temperature Control | +/1 1 deg C of set temperature |
Display | Indicates rotor temperature in increments of 1 deg C |
Stability | Within 0.3 deg C of set after equilibrium is reached |
Acceleration | Selection from two profiles: maximum acceleration from 0 rpm to set speed, or slow acceleration from 0 to 500 rpm, followed by maximum acceleration to set speed |
Deceleration | Selection from three profiles: full dynamic braking to 0 rpm, slow (full brake to 500 rpm followed by reduced braking to a gentle stop), or no brake |
Operation | Standard, programmed, or delayed start; instrument memory can store up to nine individual programs |
Revolution Corner | Displays accumulated total number of rotor revolutions in tens of thousands |
Barrier Ring | 41-mm (1.63-in.) heat-treated steel alloy armor ring surrounded by a 12-mm (0.50-in.) steel vacuum chamber to provide full protection for the operator |
Door | 17.5-mm (0.69-in.) high-strength structural steel |
Vacuum | Diffusion pump in series with a mechanical pump reduces chamber pressure to below 5 microns (0.7 Pa) |
