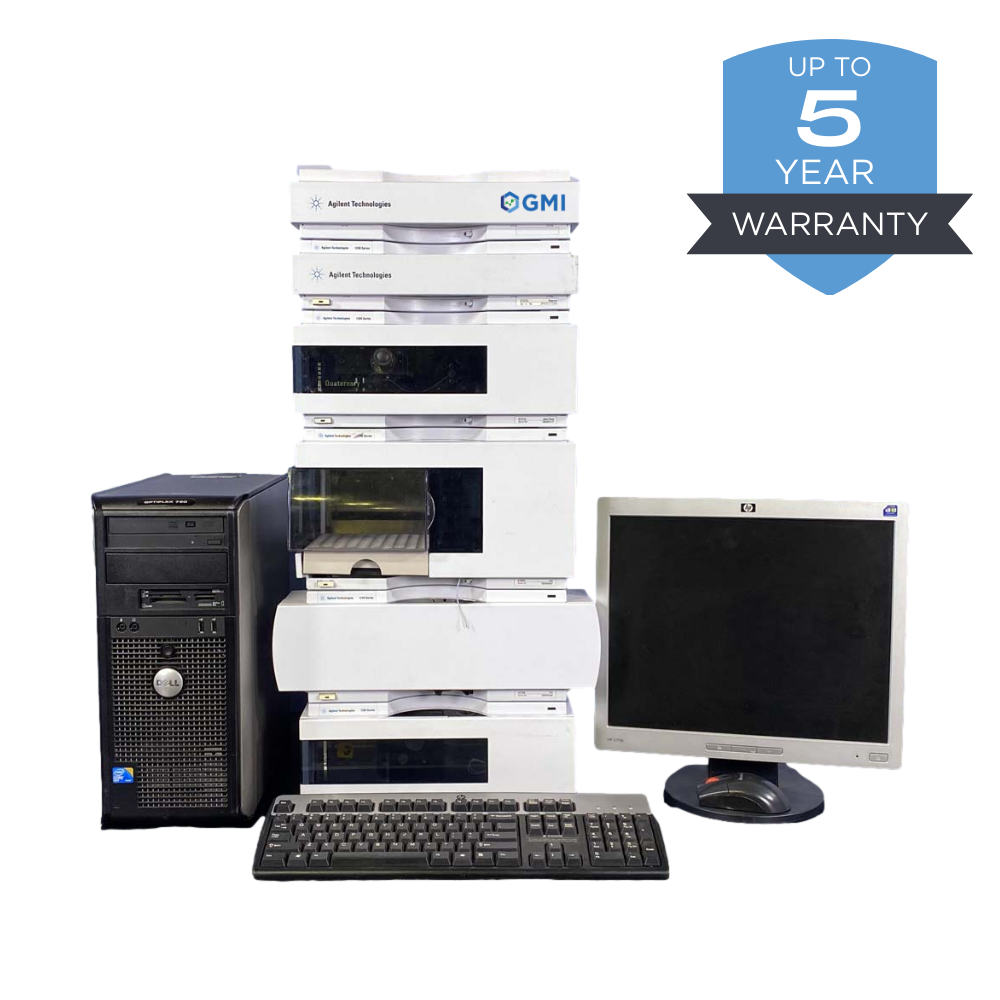

Agilent 1200 Series Binary VWD HPLC System

Get Price

1-Year Warranty Included
Extended Warranties Available Up To 5 Years!
Proof of Performance Certificate Included
Re-Certified by OEM Certified Engineers
GMI Certified Price Match Guarantee
Custom Configurations Available – Starting at $24,495

SKU: 8012-30-1298 Categories: HPLC Systems, HPLC Brand: Agilent

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation Have One To Sell?

Product Description

* Custom configurations & pricing available. Schedule a consultation to find the perfect system for your application!

Schedule a Consultation

This System Includes:

G1312 binary pump
G1314 VWD detector
G1322 degasser
G1330 autosampler
G1316 thermostatted column compartment
Agilent 1200 Solvent Tray with 2 solvent bottles
Computer Data System with NEW Data (Clarity for Windows 10) Analysis Software
New 19″ Flat Panel Monitor
All cables, keyboard, mouse, & complete performance documentation

Like the 1100 series the 1200 series model is a workhorse for the demanding needs of any QA/QC lab for the most advanced analytical and method development applications.

The heart of any HPLC system is the pump. The 1200 binary pump model G1312 is designed for routine method development and high throughput gradient applications for greatest flexibility with extreme precision for demanding flow requirements such as LC mass spectrometry. Accurate flow rates coupled with low pulsation = awesome

The G1315 DAD detector gives you Spectral information from 190 to 950 nm The dual-lamp design and the temperature control of the Agilent 1200 Series diode array detectors ensure outstanding sensitivity. Photodiode arrays with 1024 elements, programmable slit width (1, 2, 4, 8, 16 nm) and the selection of nine different flow cells enable optimization of resolution, linearity and sensitivity….it will NOT cramp your analytical capability.

The 1200 series autosampler typical repeatability and LACK of carryover is astronomically outstanding. Superior injection precision and lowest carryover makes your runs trustworthy day in day out. The 1200 autosamplers provide for precision levels of < 0.5 % RSD over an injection volume range from 0.01 μL to 2000 μL. The unique flow-through design, combined with the external needle wash and optional multiple wash solvents, virtually eliminates carryover, even for highly adsorptive compounds.

Specifications

Agilent 1200 G1311 Series Binary Pump	Dual plunger in series pump with proprietary servo-controlled variable stroke drive, floating plungers and active inlet valve
Setable flow range	0.001 – 5 ml/min, in 0.001 ml/min increments
Flow precision	0.07% RSD, or £ 0.02 min SD whatever is greater
Flow accuracy	± 1% or 10 µl/min whatever is greater
Pressure	Operating range 0 – 40 MPa (0 – 400 bar, 0 – 5880 psi) up to 5 ml/min Operating range 0 – 20 MPa (0 – 200 bar, 0 – 2950 psi) up to 10 ml/min
Gradient formation	Low pressure quaternary mixing/gradient capability using proprietary high-speed proportioning valve Delay volume 800 – 1100 µl, dependent on back pressure
Composition Range	0 – 95 % or 5 – 100 %, user selectable
Agilent 1200 G1314 VWD Detector	1 signal 13 Hz data rate
Wavelength range	190 – 600 nm
Linear absorbance range	Greater than 2.5 AU (5 %) at 265 nm
Band width	6.5 nm typical
Agilent G1316 TCC column compartment Temperature range	10 degrees below ambient to 80 °C 10 degrees below ambient to 100 °C up to 80 °C: flow rates up to 5 ml/min up to 100 °C: flow rates up to 2.5 ml/min
Column capacity	Three 30 cm

Agilent 1200 HPLC System Configurations

The modular Agilent 1200 HPLC system allows various configurations. Different combinations of modules, including pumps and detectors, can be tailored to specific applications and requirements. A typical configuration includes the pump, detector, autosampler, vacuum degasser, solvent module, Clarity software, computer system, HPIB cables, and manuals.

Modules include the Agilent 1200 Series Quaternary or Binary pump, and the 1200 Series Variable Wavelength Detector (VWD) or the Diode Array Detector (DAD). Both the VWD and DAD use a holmium oxide filter for automated wavelength verification and tracking the detector’s performance characteristics. The Agilent 1200 detectors also feature a new design that allows front access for the exchange of flow cells and pre-aligned lamps.

Agilent 1200 Configuration Options
Pump	Autosampler	Column Compartment	Detector	Degasser	Computer & Software	Installation & Training
G1310B Isocratic Pump	G1329B Standard Autosampler	G1316B Thermostatted Column Compartment for accurate temperature control	G1314B Variable Wavelength Detector (VWD)	G1322B Degasser	Computer w/ ChemStation	On-Site Installation & Familiarization
G1311B Quaternary Pump	G1367B High-Performance Autosampler	No Column Compartment	G1315B Diode Array Detector (DAD)	No Degasser	Computer w/ OpenLab	Remote Installation
G1312B Binary Pump			Fluorescence Detector G1321B		No Computer or Software	No Installation or Familiarization
			G1362B Refractive Index Detector
