Purpose-built design
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

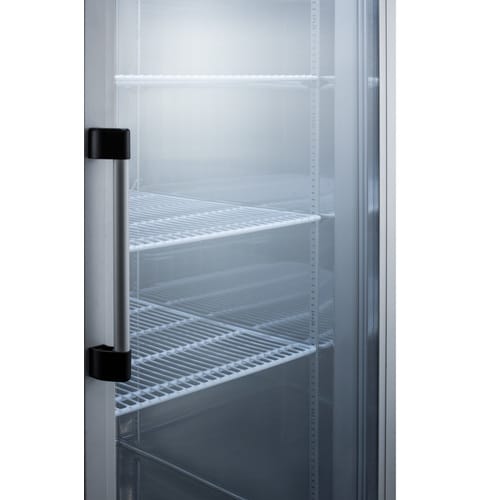

Glass doors
Full display of the interior, with an anti-condensate door frame heater to ensure a clear view
Adjustable temperature
Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Self-closing doors
Two doors close to save energy but will remain open when the door is opened at a 90º angle for easier loading
Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
6 inch casters
Ships with a set of casters (2 locking) for optional user installation

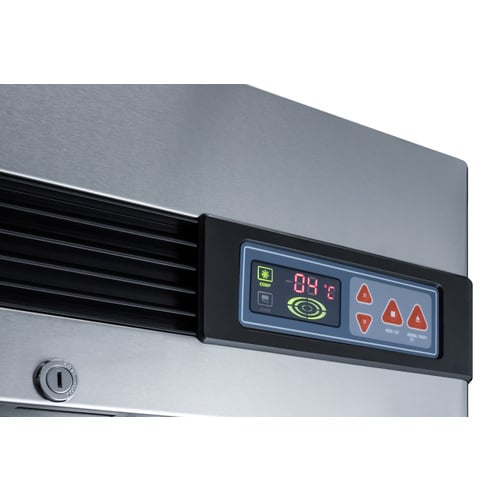

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

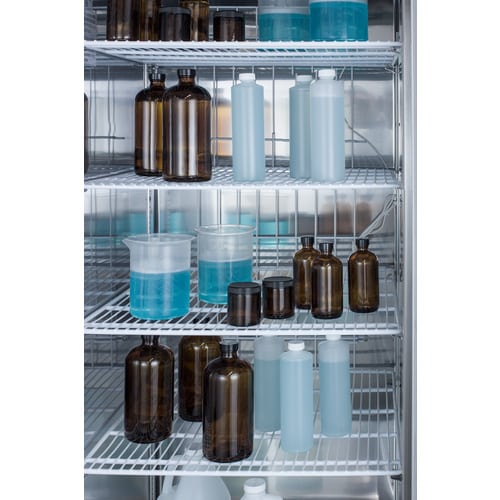

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2″ to allow flexible adjusting to support smaller items
Interior light
Energy efficient LED lighting with internal on/off switch
Large capacity
49 cubic feet of storage space inside
Sealed back
Space-saving design that ensures easier cleanup
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
Extended warranty
2 years parts and labor/5 years compressor
Commercially approved
Commercial construction meeting UL commercial listing standards
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Additional choices
Glass door version (model ARG23ML) available for pharmacy, medical, laboratory, and additional applications
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
|
|
---|---|
Height of Cabinet | 83.75″ (213 cm) |
Width | 55.25″ (140 cm) |
Depth | 31.0″ (79 cm) |
Depth with Handle | 32.75″ (83 cm) |
Depth with door at 90° | 56.5″ (144 cm) |
Capacity | 49.0 cu.ft. (1388 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 7.5 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 410.0 lbs. (186 kg) |
Shipping Weight | 516.0 lbs. (234 kg) |
Refrigerator Features
|
|
Door Swing | French |
Shelf Type | Wire |
Shelf Qty | 8 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R290a |
Refrigerant Amount | 3.2oz. |
High Side PSI | 290.0 |
Low Side PSI | 155.0 |
Wheel Qty | 4 |
Interior Light | Yes |
Temperature Range | 2 to 10ºC |
Dimensions
|
|
---|---|
Interior Height | 51.5″ (131 cm) |
Interior Width | 50.5″ (128 cm) |
Interior Depth | 27.0″ (69 cm) |
