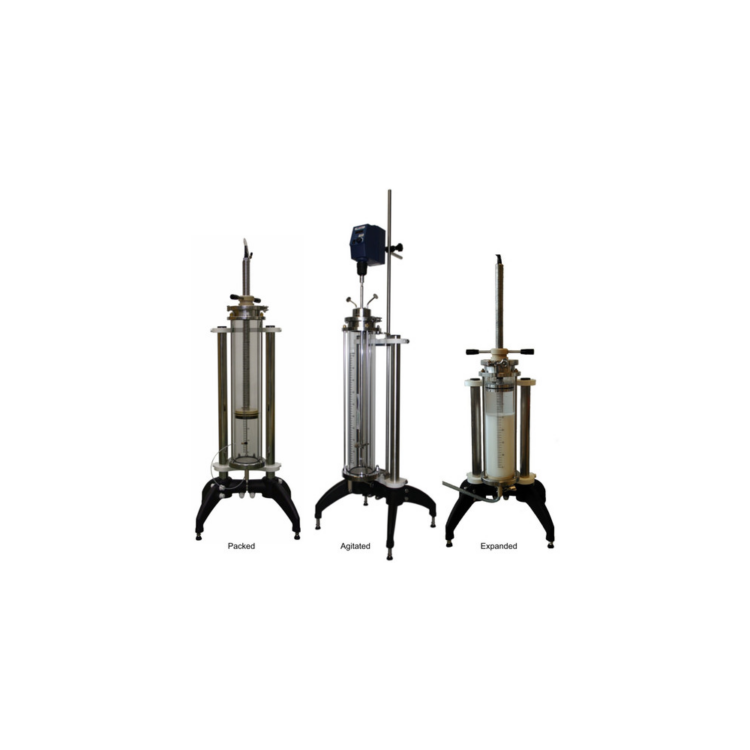

PilMod™ Columns from VERDOT
Modular Pilot-Scale Chromatography with Maximum Flexibility
Engineered for pilot and small-scale GMP purification, VERDOT’s PilMod™ Columns, available through GMI, deliver compact, modular performance with user-friendly handling and highly consistent results. Designed with a central screw mechanism and a mechanical seal, PilMod™ Columns make axial compression packing simple and efficient.
With optional onsite support and service from GMI’s expert team, PilMod™ ensures your chromatography workflows remain optimized and compliant from the start.
Key Features:
- Available diameters: 10 cm, 14 cm, and 20 cm
- Packed bed height: Up to 50 cm
- Customizable design: Adapt to your process with a flexible, modular platform
- Operating pressure: Rated to 6 bar
- Easy axial compression: Central-screw design for precise, reproducible packing
- Efficient flow distribution: Unique frit and flow distributor for superior resin performance
- Borosilicate glass column tubes: Durable, transparent, and easy to clean
- GMP-ready materials: All wetted parts comply with FDA and USP Class VI requirements (USP <88>)
- Full regulatory support: Includes IQ/OQ documentation packages and 3.1 certificates for stainless steel components
- Practical design: Column tubes include built-in handles for easy filling and emptying; stand supports the top adaptor when open
Reliable Support from GMI
GMI offers full technical service and application support to ensure your PilMod™ column performs flawlessly in your process. Whether you’re scaling up or working with challenging resins, our team is here to assist with installation, training, and method optimization.
| Diameters | 10 cm, 14 cm, 20 cm |
|---|---|
| Maximum Tube Height | 50 cm or 100 cm |
| Operating Pressure | Up to 6 bar |
| Temperature | Operating: 2 – 30°C
CIP: 60°C max |
| Surface finish | Ra ≤0.6 µm |
| Frit Pore Size | Nominal: 20 µm
Custom: Available from 5 – 90 µm |
| Connection | Tri-clamp TC25 |
| Minimum Bed Height | 10 cm |
| Materials of Construction | Frame: Stainless steel 304 and plastic
Tube: Borosilicate glass 3.3 Flow distributors: Stainless steel 316L Seals: EPDM Frits: Sintered mesh; stainless steel 316 |
| Wetted parts | All wetted parts in compliance with FDA requirement and USP Class VI, described in USP <88> Biological Reactivity Tests, in vivo; 3.1 certificates for all stainless steel parts |
