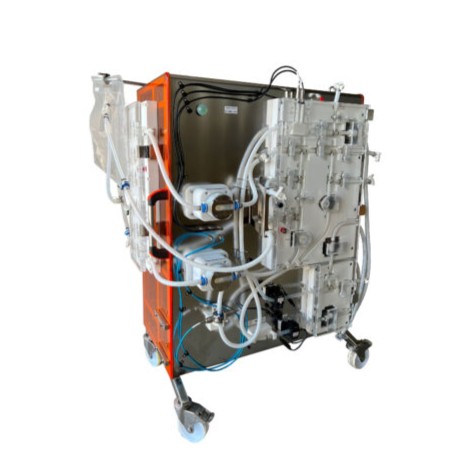

VERDOT FlexiPro™ TFF System
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Less fouling, more filtering.
Novel Pressure Control Valve (PCV) provides precise backpressure and rapid response for smooth TMP regulation.
One system, all you need.
- Scale up, scale down, and tech transfer all on ONE piece of equipment without the need for costly validation and re-training.
- Pilot scale to commercial GMP manufacturing without changing equipment.
- Harvest clarification all the way to final formulation diafiltration on the same system.
Change the flow kit, not the system.
Get four skids in one with the Single Use FlexiPro™ TFF system. Scale up from 1 LPH to 3500 LPH in less than 15 minutes!
Ease of use, ease of mind.
With pre-assembled flow kits and directional grooves to streamline the operation, no other system compares when it comes to mistake-proof installation. Not only that, you can see the entire fluid path through the transparent door and the only tool required is a simple Allen wrench.
Higher sensitivity for lower detection.
High precision best-in-class instrumentation provides benchtop accuracy in a single-use format.
Your Process, Your Way.
Configurable flow kits with advanced analytics for better process control.
Overview
- Single-use GMP processing
- Scalable capacity from 1 to 3500 LPH
- Configurable, gamma-irradiated, intuitive flow kits pre-assembled with sensors and sterile connections
- Flow kit installation in less than 15 minutes
- Brand-agnostic filter format for flat sheet cassettes and hollow fiber membranes
- Transparent door ensures safe and correct positioning of fluid path
- Comprehensive documentation package for regulatory submissions
- Fully automated with control software or your preferred platform
| Flow Kit Specifications | ||||
|---|---|---|---|---|
| Flow Kit Name | VLFK | LFK | HFK | VHFK |
| Tubing I.D. | 1/8”
3.2 mm |
1/4”
6.4 mm |
1/2”
12.7 mm |
3/4” & 7/8”
19.1 mm & 22.1 mm |
| Flow Range (LPH) | 1.0-30 | 5.0-170 | 25-1150 | 100-3500 |
| Membrane S.A. (m2) | 0.002-0.06 | 0.007-1.0 | 0.05-5.1 | 0.16-34.0 |
| Void Volume (mL) | 49 mL | 190 mL | 767 mL | 2240 mL |
| Product Specifications | |
|---|---|
| Operating Pressure | 0-4 bar |
| Inlets | 4 (feed) + optional 2 (diafiltration) |
| Outlets | 3 (2 permeate + 1 retentate) |
| Feed Instrumentation | Flowmeter, Pressure |
| Permeate Instrumentation | Standard: Flowmeter, Pressure, PCV
Optional: Conductivity + temperature, pH, UV |
| Retentate Instrumentation | Standard: Flowmeter, Pressure, PCV
Optional: Conductivity + temperature, pH, UV |
| Connections | Aseptiquik (gamma-irradiated)
or MPC + TC (non-gamma) |
| Ports for External Transmitters
(Vessel Weight, Agitator speed) |
4 |
| Pump Technology | QuattroFlow (standard)
Levitronix (optional) |
| UV | Kemtrak, 0-4.5 AU Two wavelengths, error ± 0.2% full scale |
| Conductivity and Temperature | 0 – 500 mS/cm, pre-calibrated
1-100°C |
| pH range | 3-10 pH, pre-calibrated, dry storage |
| Dimensions (HxWxD) | 1770 x 1370 x 805 mm |
