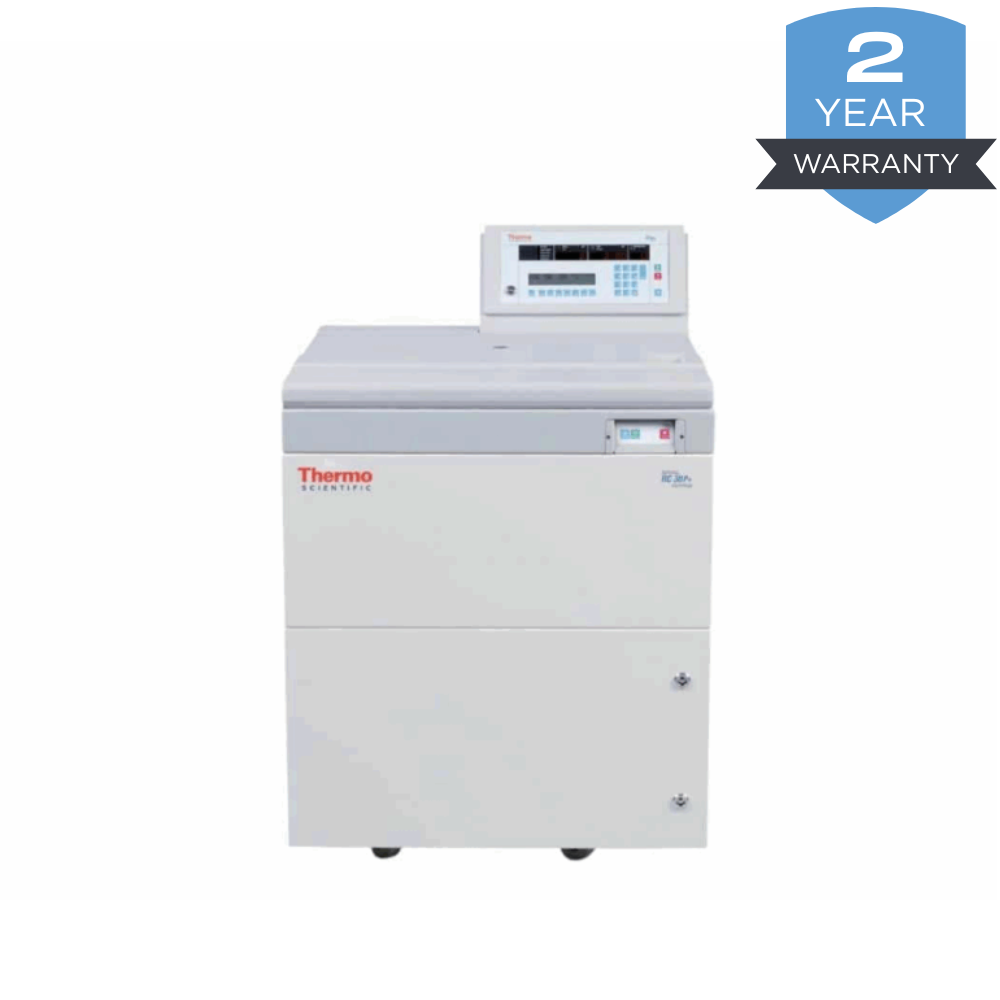

Thermo Scientific Sorvall RC3BP Plus Refrigerated Centrifuge

Product Description

• Large capacity, low-heat operations
• CFC-free refrigeration systems
• Analog display for easy readout
• Outstanding rotor compatibility
• Built-in temperature and speed indicators
• Maximum biosafety and biohazard protection
• Built-in w²dt integrator

The Sorvall RC3BP Plus refrigerated centrifuge offers reliable performance run after run with its large capacity, low-heat operation, and CFC-free refrigeration system. The model provides a range of innovative features including dial controls used for setting run parameters, an analog display for easy readout, dial-control deceleration, and overspeed protection.

Often paired with the H6000A 6 x 1 liter rotor, or the kid brother H4000A 4 x 1 liter rotor (quoted separately)

Equipped with a built-in temperature indicator, the Sorvall RC3BP Plus centrifuge is capable of indicating chamber temperature from -20°C to +40°C in 1°C increments. This Sorvall centrifuge features a speed indicator which gives continuous and accurate direct readout of rotor speed. The RC3BP Plus system is also equipped with a brake switch, door light, run light, and over temperature light to ensure easy and economical operation.

Specifications:

• Capacity 6 x 1000mL or 12 x 250mL blood bags
• Max. Speed 5,000rpm
• Max. RCF 7,277 x G
• Amperage 19A
• Height (English) Exterior 46.3 in.
• Height (Metric) Exterior 117.8cm
• Imbalance Detector 50g tolerance
• Length (English) Exterior 35.6 in.
• Length (Metric) Exterior 90.5cm
• Operational Feature Accumulated Centrifugal Effect (ACE), Step-Mode Runs, Slow Start/Stop, Security Key Switch; Electronic Self-Locking
• Run Time 1 min. to 99 min. 59 sec. plus continuous
• Safety Features Automatic lid lock, imbalance detection, steel armored guard ring
• Width (English) Exterior 31.5 in.
• Width (Metric) Exterior 80cm
• Certifications/Compliance ISO 9001:2000
• Description Sorvall RC3BP Plus Low-Speed Centrifuge
• Drive System High-performance induction
• Phase Single
• Controller Type Microprocessor
• Electrical Requirements 208 to 220V 60Hz
• Dimensions (HWD) 463 x 31.5 x 35.6 in. (117.8 x 80 x 90.5cm)
• Refrigerated Yes
• Net Weight 981 lb. (445kg)
• Temperature Range -10° to +40°C

Call us today to obtain your special pricing on a GMI Re-Certified Sorvall RC3BP Plus Centrifuge pair with rotor options matching your requirements.
