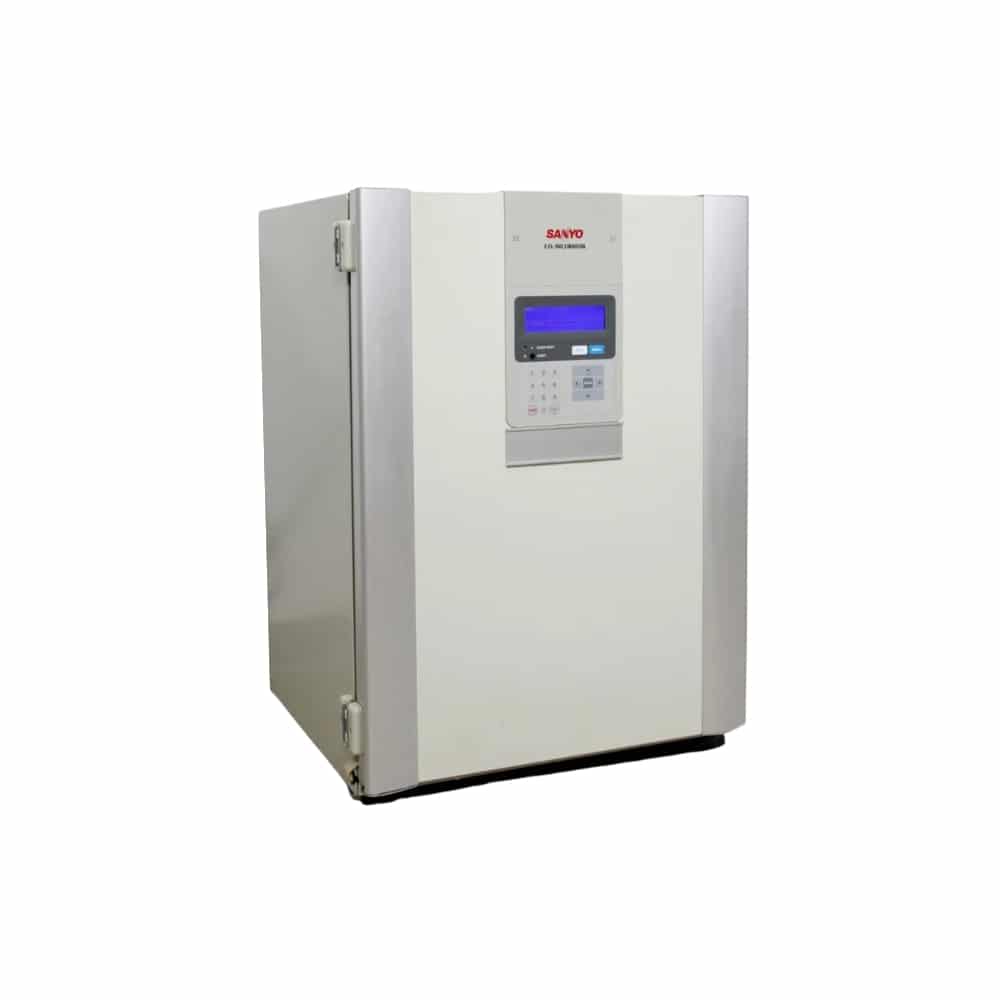

Sanyo MCO-19AIC CO2 Incubator
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?Product Description
The Sanyo MCO-19AIC(UV) CO2 Incubator features unprecedented humidity and temperature control technology, which provides both flexible and robust stability control for cultures. The new direct heat and air jacket system eliminates the inconvenient use of water in the incubator and provides heat from the door, side, and bottom of the unit. The Sanyo MCO-19AIC utilizes a dual detector infrared CO2 sensor, which is not affected by changes in humidity or temperature, maintains constant conditions via the microprocessor control, and automatically calibrates using room air temperature as reference. Also features Safe Cell UV contamination control system.
Specifications
| External dimensions | 620 x 710 x 900 mm (W x D x H) |
| Internal dimensions | 490 x 523x 665 mm (W x D x H) |
| Interior volume | 170 L |
| Access port | Inner diameter: 30 mm, On the back side |
| Trays | 4 trays made of stainless steel containing copper
450 x 450 x 12 mm (W x D x H), Maximum load: 7 kg/tray |
| Insulation | Rigid polyurethane foamed-in place |
| Heating system | DHA system (heater jacket + air jacket system) |
| Heater | 314 W |
| Humidifying system | Natural evaporation with humidifying pan |
| Temperature controller | PID control system |
| Temperature display | Digital display |
| CO2 controller | PID control system |
| CO2 density display | Digital display |
| Air circulation | Fan assisted |
| Temperature control range | +5°C above ambient to 50°C (in a 5°C to 35°C ambient). |
| Temperature control uniformity | ± 0.25°C in 25°C ambient, setting 37°C, 5% CO2, no load. |
| C02 control range and deviation | 0% to 20%, ± 0.15% in 25°C ambient, setting 37°C, 5% CO2, no load. |
| C02 sensor platform | Ceramic based, single beam Infrared sensor, with dual wavelength measurement for continuous auto-zero calibration |
| Air filter | 0.3 Pm, Efficiency: 99.97% or higher |
| UV lamp | 4W X 1 (ozone-free emission) |
| Water level sensor | Optical |
| Alarms | Automatic set temperature alarm, Automatic set CO2 density alarm,
Upper limit temperature alarm, Door alarm, Low humidifying water alarm, UV lamp failure alarm (for UV equipped model only) |
| Remote alarm contacts | Allowable contact capacity: 30 VDC, 2 A |
| CO2 inlet connection | 4 to 6 mm diameter tube |
| CO2 inlet pressure | 0.03 MPaG (0.3 kgf/cm2 G, 4.3 psiG) |
| Weight | 93 kg |
