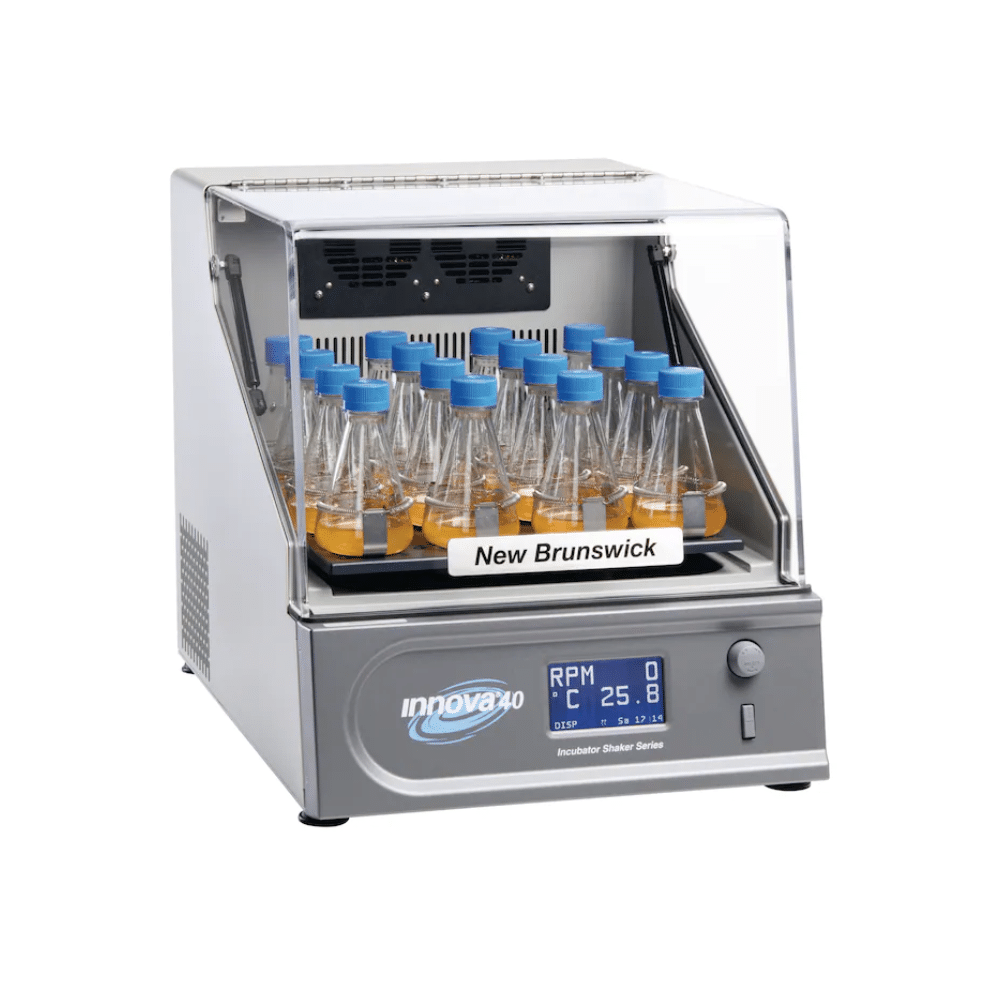

New Brunswick Innova 40/40R Incubated Shaker
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?Product Description
The Innova 40 and 40R (refrigerated) benchtop shakers provide years of dependable operation. This is the perfect shaker to begin working on small-scale projects with a view to increase volume or throughput. The self-supporting transparent lid allows samples to be in view all the time. The ability to shake flasks up to 3 L in such a compact benchtop unit provides clear scope to upscale and options include a drip pan and remote alarm. The simple user interface allows for easy programming of speed, temperature, time. The VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.
Features
- Check your samples: Large, insulated, and scratch-resistant viewing provides a clear view of the chamber contents (device stops when lid is opened); holds flasks up to 3 L
- Built to perform and last: Innova triple-eccentric counterbalanced drive in cast iron housing provides vibration and trouble-free operation for years
- Tight temperature and speed control: Temperature accuracy and uniformity: ±0.1 °C and ±0.25 °C (at 37 °C; independent over-temperature cutoff included), speed accuracy 1 rpm
- Save space on your lab bench: Small footprint of 55.9 × 76.2 cm / 22 × 30 in (W x D) that even works on narrow benches
- Easy interface handling and programming: Controls and display make it easy to view, set and program parameters − continuous, timed, or multi-step programs with up to 15 steps (four programs storable)
- Minimizes splashing and mechanical damage: Acceleration/deceleration circuit prevents sudden starts and stops
- Easy to move: 60/79 kg weight (incubated/refrigerated version)
- Optional drip pan: Protects the shaker drive below by collecting spills from the overlying universal platform
- Certified: Meets cETL, UL, CSA and CE standards
Specifications
| Specifications | Innova® 40, orbit diameter 1.9 cm (3/4 in) | Innova® 40R, orbit diameter 1.9 cm (3/4 in) | Innova® 40R, orbit diameter 2.5 cm (1 in) | Innova® 40, orbit diameter 2.5 cm (1 in) |
|---|
| External height (with lid/door open) | 101.6 cm (40 in) | 101.6 cm (40 in) | 101.6 cm (40 in) | 101.6 cm (40 in) |
| Timer | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous |
| Power supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
| Dimensions (W × D × H) | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in | 55.9 × 76.2 × 61 cm / 22 × 30 × 24 in |
| Weight w/o accessories | 60.3 kg / 133 lb | 79.4 kg / 175 lb | 79.4 kg / 175 lb | 60.3 kg / 133 lb |
| Temperature range | Ambient +5 °C to 80 °C | 15 °C below ambient to 80 °C (min. 4 °C) | 15 °C below ambient to 80 °C (min. 4 °C) | Ambient +5 °C to 80 °C |
| Audible and visual alarms | yes | yes | yes | yes |
| Temperature uniformity | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C |
| Available program modes | • Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
• Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
• Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
• Constant speed and temperature • Programmable multi-steps • RS-232 communication port |
| Drive mechanism | triple-eccentric counterbalanced drive | triple-eccentric counterbalanced drive | triple-eccentric counterbalanced drive | triple-eccentric counterbalanced drive |
| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) | B | B | B | B |
| Memory | non volatile with automatic power failure restart | non volatile with automatic power failure restart | non volatile with automatic power failure restart | non volatile with automatic power failure restart |
| Motor type | Solid state, DC brushless motor | Solid state, DC brushless motor | Solid state, DC brushless motor | Solid state, DC brushless motor |
| Platform size (cm/in) | 46 × 46 cm (18 × 18 in) | 46 × 46 cm (18 × 18 in) | 46 × 46 cm (18 × 18 in) | 46 × 46 cm (18 × 18 in) |
| Refrigerated | − | yes | yes | − |
| Slide-out platform | no | no | no | no |
| Door opening | top opening hood | top opening hood | top opening hood | top opening hood |
| Speed range | 25 up to 500 rpm (depending on load) | 25 up to 500 rpm (depending on load) | 25 up to 500 rpm (depending on load) | 25 up to 500 rpm (depending on load) |
| Multi-step programming | yes | yes | yes | yes |
| Steps per program | 15 | 15 | 15 | 15 |
| Stored programs | 4 | 4 | 4 | 4 |
| cETLus and CE marked | yes | yes | yes | yes |
| Capacity | medium | medium | medium | medium |
| Programming steps / storable programs | 15/4 | 15/4 | 15/4 | 15/4 |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® box enabled | VisioNize® box enabled | VisioNize® box enabled | VisioNize® box enabled |
| Temperature range | Ambient +5 °C to 80 °C | 15 °C below ambient to 80 °C (min. 4 °C) | 15 °C below ambient to 80 °C (min. 4 °C) | Ambient +5 °C to 80 °C |
|
Agitation |
||||
| Orbit | 1.9 cm (0.75 in) | 1.9 cm (0.75 in) | 2.5 cm (1 in) | 2.5 cm (1 in) |
