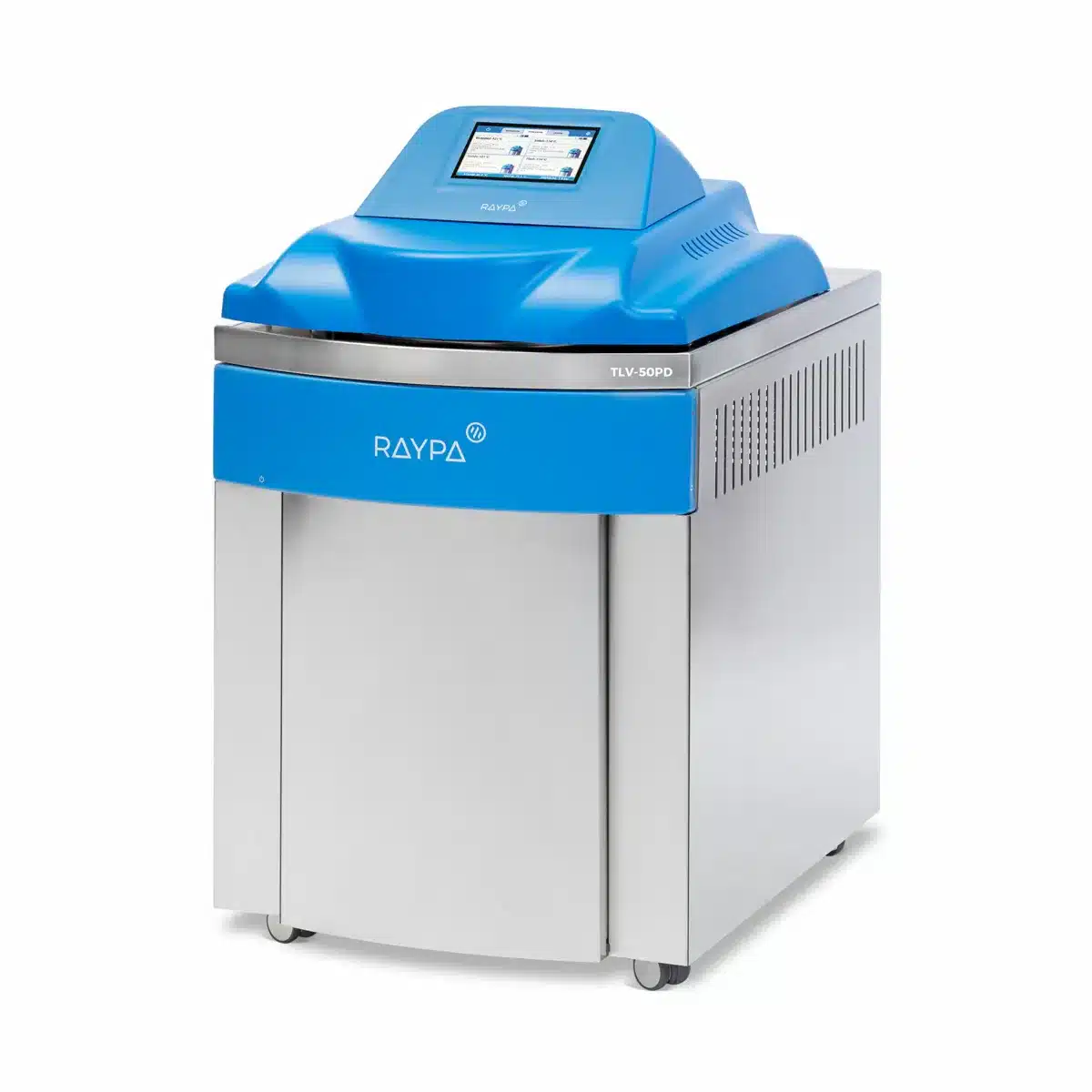

RAYPA Vertical Autoclave with Super-Drying System TLV-PD Series
Price range: $34,608.20 through $45,296.90
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Designed specifically for the pharmaceutical and biotech industries, the TLV-PD Series vertical autoclaves excel in sterilizing solid loads due to their super-drying system.
- Fully automatic, equipped with cutting-edge engineering and exceptional quality in every detail
- Modern design with 7” capacitive touchscreen display
- Advanced cloud-based connectivity that complies with FDA, GMP, and GLP standards
Vertical laboratory autoclaves with super-drying system
The TLV-PD Series vertical autoclaves with super-drying system using a heated jacket and high performance water ring pump are designed to provide advanced sterilization of solids in industrial and research environments in the pharmaceutical, healthcare, chemical and biotech industries sterilizing glass, porous materials, packaged solids and objects of complex geometries.
All Top line vertical floor-standing autoclaves feature the most advanced connectivity in the market and comply with the latest advancements in electronic records and data control to work under FDA, GMP and GLP environments.
Completely dries the load thanks to the super-drying system
Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, ensuring safe processing of porous solids and packaged objects. There is no need to dry the load in an external oven.
Modern design and fully automatic
State-of-the-art technology. Push-button-controlled mechanically assisted door. Instant steam production by the built-in steam generator. Air inlet and outlet fitted with a bacteriological filter. Equipped with a high-performance liquid ring vacuum pump specifically for a quicker fractionated prevacuum phase. Heating jacket to completely dry solid loads. F₀-controlled sterilizations thanks to the integrated flexible probes. Automatic filling from the water network. Water-cooled direct discharge.
| Features | TLV-50 | TLV-75 | TLV-110 | TLV-150 |
|---|---|---|---|---|
| Chamber dimensions Ø x H usable | 400 x 450 mm | 400 x 650 mm | 500 x 600 mm | 500 x 850 mm |
| Chamber volume total / usable | 58 / 56 L | 83 / 81 L | 124 / 118 L | 169 / 155 L |
| External dimensions L x D x H | 610 x 870 x 1060 mm | 610 x 876 x 1110 mm | 710 x 980 x 1160 mm | 710 x 980 x 1310 mm |
| Weight | 140 Kg | 150 Kg | 195 Kg | 210 Kg |
| Power | 3600 W | 3600 W | 9000 W | 9000 W |
| Electrical voltage* | 230 (1P+N+E) V | 230 (1P+N+E) V | 400 (3P+N+E) V | 400 (3P+N+E) V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Working temperature range | 105 – 140 ºC | 105 – 140 ºC | 105 – 140 ºC | 105 – 140 ºC |
| Maximum working pressure | 2,6 barg | 2,6 barg | 2,6 barg | 2,6 barg |
| Maximum design Temperature / Pressure | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg |
| * Ask for other voltages. | ||||
| Specifications | TLV | TLV-PD | TLV-FA |
|---|---|---|---|
| Integrated steam generator separated into the housing | ✔ | ✔ | ✔ |
| Automatic block/unblock system | ✔ | ✔ | ✔ |
| Mechanical assisted door | ✔ | ✔ | ✔ |
| Fast cooling | – | – | ✔ |
| Pre-vacuum | ✔ | ✔ | ✔ |
| Post-vacuum | – | ✔ | – |
| Air exhaust filtration | ✔ | ✔ | ✔ |
| Water ring vacuum pump | – | ✔ | – |
| Internal radial fan | – | – | ✔ |
| Steam exhaust condensation with cold water | ✔ | ✔ | ✔ |
| Autofill: automatic purified water feed for steam generation | ✔ | ✔ | ✔ |
| Temperature holding function after the end of program for liquids | ✔ | ✔ | ✔ |
| Housing and basic frame construction in stainless steel | ✔ | ✔ | ✔ |
| Lid and pressure vessel construction | 316L | 316L | 316L |
| Pressure gauge | ✔ | ✔ | ✔ |
| 4 casters (with brakes in two of them) | ✔ | ✔ | ✔ |
| Flexible PT-100 temperature sensor | O | O | ✔ |
| Second flexible PT-100 temperature sensor | O | O | O |
| Printer for batch documentation Integrated | O | O | O |
| Printer for batch documentation External | O | O | O |
| Barcode scanner with label printer | O | O | O |
| Number of sterilization programs | 50 | 50 | 50 |
| Password secured access rights for parameterization | ✔ | ✔ | ✔ |
| Automatic microprocessor control | ✔ | ✔ | ✔ |
| 7” capacitive colour touch screen | ✔ | ✔ | ✔ |
| External data transfer (network compatible) RS-232 | ✔ | ✔ | ✔ |
| USB | ✔ | ✔ | ✔ |
| ETHERNET | ✔ | ✔ | ✔ |
| WI-FI | ✔ | ✔ | ✔ |
| RAYPA CLOUD Basic (extensive documentation/network compatible) | O | O | O |
| RAYPA CLOUD Premium (extensive documentation/network compatible) | O | O | O |
| Private cloud server | O | O | O |
| Internal memory for documentation for sterilization cycles | up to 1,000,000 | up to 1,000,000 | up to 1,000,000 |
| Data backup via USB reader | ✔ | ✔ | ✔ |
| Timer for programmable start time | ✔ | ✔ | ✔ |
| Calculation of FO value in combination with flexible PT-100 | O | O | ✔ |
| FDA 21 CFR Part 11 and GMP Annex 11 compliance | O | O | O |
| Connection to LIMS*** | ✔ | ✔ | ✔ |
| ✔ Standard O Optional *** LIMS: Laboratory Information Management System | |||
| Model | TLV-50PD, TLV-75PD, TLV-110PD, TLV-150PD |
|---|
