Product Description
GMI is the trusted “scratch & dent” factory outlet partner of NuAire. This item has minor cosmetic damages (pictures available upon request), but its performance is backed by a full manufacturer’s warranty.

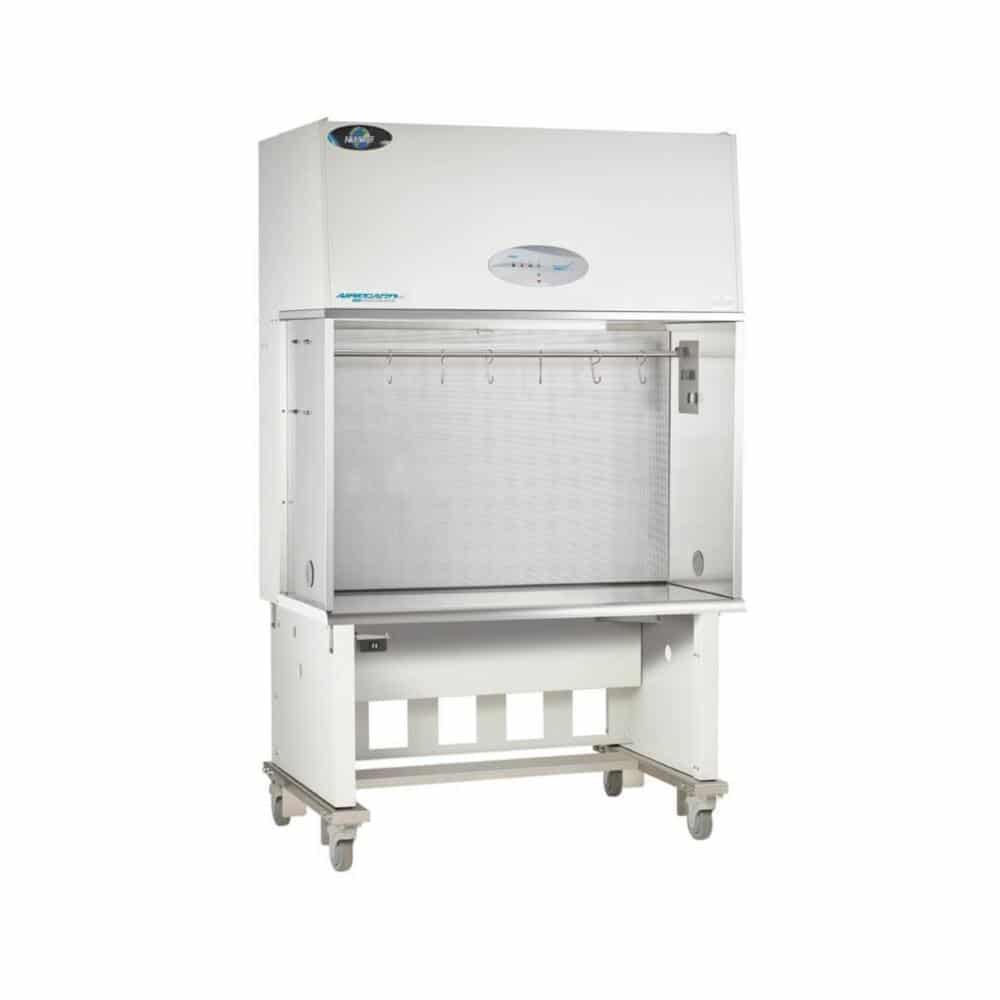

The AireGard™ NU-240 creates HEPA-filtered horizontal laminar airflow to provide product protection for sterile but non-hazardous drug compounding in pharmacies or non-hazardous work in research labs. The DC ECM motor draws air through a top pre-filter and propels it through a backwall HEPA filter to create an ISO Class 5 level of air cleanliness inside a work zone surrounded by stainless steel walls and a work surface made of stainless steel with a PVC core. One easily monitors workbench performance through the Aeromax™ control system that visualizes pressure in the internal airflow plenum. The work zone comes standard with cord-pass throughs and fluorescent lighting but can be optionally configured with polycarbonate walls, an IV bar, LED lighting, outlets, and service valves to fit your workflow needs.
Standard Features
- AeroMax Electronic Control System
- Ultra-high Efficiency DC/ECM Motor
- PressureFlow Airflow Monitor and Control
- Attenumount Vibration Control
- HEPEX Zero Leak Airflow System
- True Laminar Airflow
- Pre-Filter System
- Metal Frame Supply Separatorless HEPA Filter 99.99% efficient @ 0.3 micron
- ISO Class 5 Air
- Backwall Metal Diffuser with Quick Clean Removal
- Cool White Fluorescent Lighting
- Stainless Steel Sidewalls with Cord Pass-Through
- Stainless Steel Worksurface with PVC Core
- Ergonomically Designed Work Zone
- Power Cord
GREEN LIGHT, YELLOW LIGHT, RED LIGHT

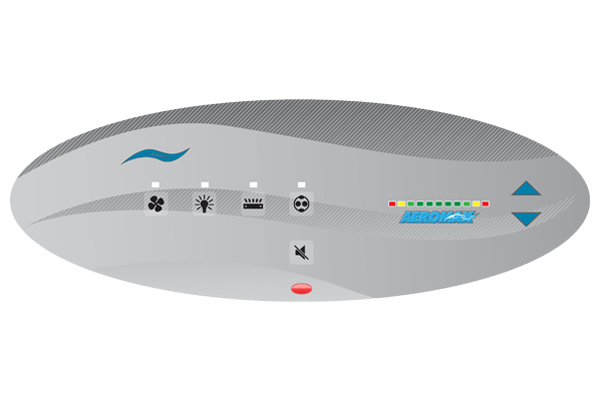

AEROMAX CONTROL SYSTEM
The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever workbench performance departs from normal parameters.
POWERFUL YET QUIET

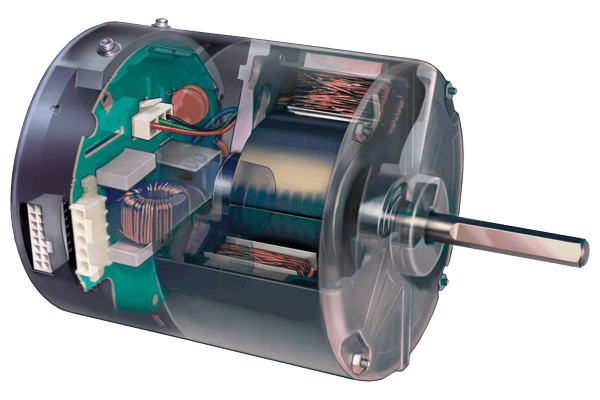

ULTRA HIGH EFFICIENCY MOTOR
The single DC ECM motor powers the airflow though the workbench while economizing energy and minimizing noise. This motor provides enough power to compensate HEPA filter loading for years to come and thereby minimize your laboratory’s lifetime cost of HEPA filter replacement.
Specifications
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Direction | Horizontal |
Airflow Velocity | 90 fpm (0.46 mps) |
Casters | N/A |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Control System | AeroMax |
Cord Pass Through | Standard on Right and Left Side Wall |
Diffuser | Metal, non-flammable |
Electrical Configuration | 115V60Hz, 230V5060Hz |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
IV Bar with 6 Hooks | Optional |
Lighting | Standard Fluorescent with Optional LED |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Motor(s) | DC ECM |
Outlet(s) | Optional under worksurface |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Plenum Type | HEPEX |
Power Cord Length Foot (Meter) | 12 (3.7) |
Pre-filter | Top of Unit |
Protection | Product |
Safety Certification | UL, UL-C |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Bench top, optional base stand |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Ultraviolet (UV) Light | N/A |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
