Rocker Switches
- Easy to use buttons for operating the fume hood’s light and blower

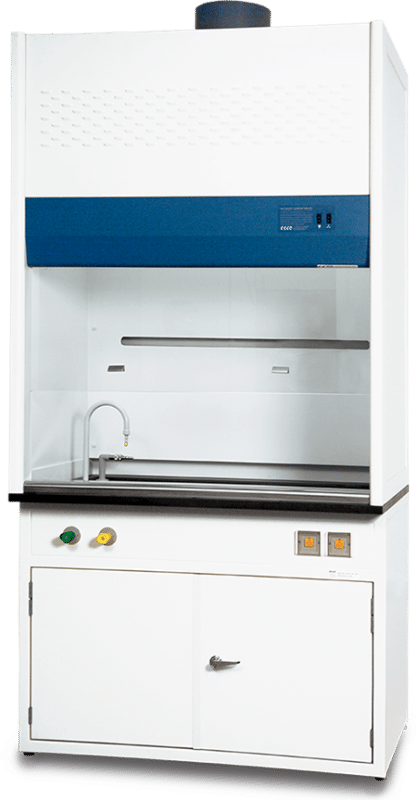

Esco Frontier® Mono Fume Hood
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The Frontier® Mono (EFH) fume hood is the most basic of all Esco ducted fume hoods with a single wall construction designed for a fully maximized internal work zone. This ducted fume hood is generally applicable for common laboratory applications such as boiling, evaporation, drying, and other applications that emit noxious fumes and vapors.
Key Benefits
- UL classified
- Clean looking aesthetics
- High performance
Features
- Industrial grade support frame built with electrogalvanized steel and oven-baked epoxy coated aluminum.
- Phenolic resin laminate baffle system ensures airflow uniformity throughout the main chamber of the hood
- Aerodynamic curved side profile improves containment
- Progressive Bypass Airflow System redistributes air intake when sash is closed
- Aerodynamic design eliminates air turbulence, minimizes noise levels and static pressure losses
- Grade 304 stainless steel airfoil sweeps the work surface to maintain superior operator protection
- Independently tested and certified by Invent-UK to meet and exceed the requirements of BS7258:200
Single Wall Construction
- Provides a maximized internal work zone
- Constructed from E.G. Steel
Aerodynamic Foil Entry
- SS 304 airfoil safely ventilates fumes generated towards the back of the hood for superior operator protection
- Helps reduce turbulence and eliminate airflow
Bypass slots
- Progressive Bypass Airflow System redistributes air intake when sash is closed, improves containment

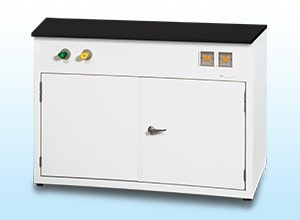

Base Cabinet
Each EBC comes standard with:
- 1 x Dished phenolic resin worktop
- 4 x Electrical socket outlets
- 1 x Swan-neck faucet
- 1 x PP Drip Cup located on left of worktop
- 1 x Gas fitting
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Technical Specifications
| General Specifications, Frontier® Mono™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø | EFH-4A-8 | EFH-5A-8 | EFH-6A-8 | |
| 110-120 VAC, 50/60 Hz, 1ø | EFH-4A-9 | EFH-5A-9 | EFH-6A-9 | ||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | ||
| External Dimensions (W x D x H) |
1200 x 873 x 1500 mm (47.2″ x 34.4″ x 59.1″) |
1500 x 873 x 1500 mm (59.1″ x 34.4″ x 59.1″) |
1800 x 873 x 1500 mm (70.9″ x 34.4″ x 59.1″) |
||
| Internal Work Area Dimensions (W x D x H) |
1120 x 682 x 1435 mm (44.1″ x 26.9″ x 56.5″) |
1420 x 682 x 1435 mm (55.9″ x 26.9″ x 56.5″) |
1720 x 682 x 1435 mm (67.7″ x 26.9″ x 56.5″) |
||
| Construction | Main Body | EG steel with aluminum and oven-baked Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner | Esco Resinate™ Phenolic Resin laminates | ||||
| Interior Baffle System | Esco Resinate™ Phenolic Resin laminates | ||||
| Airfoil | Stainless Steel grade 304 | ||||
| Worktop | No built-in worktop for the fume hood unit. The phenolic dished work top is included with the base cabinet | ||||
| Sash Specification | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | ||||
| Sloping | No sloping | ||||
| Maximum Sash Opening | 550 mm (21.7″) | ||||
