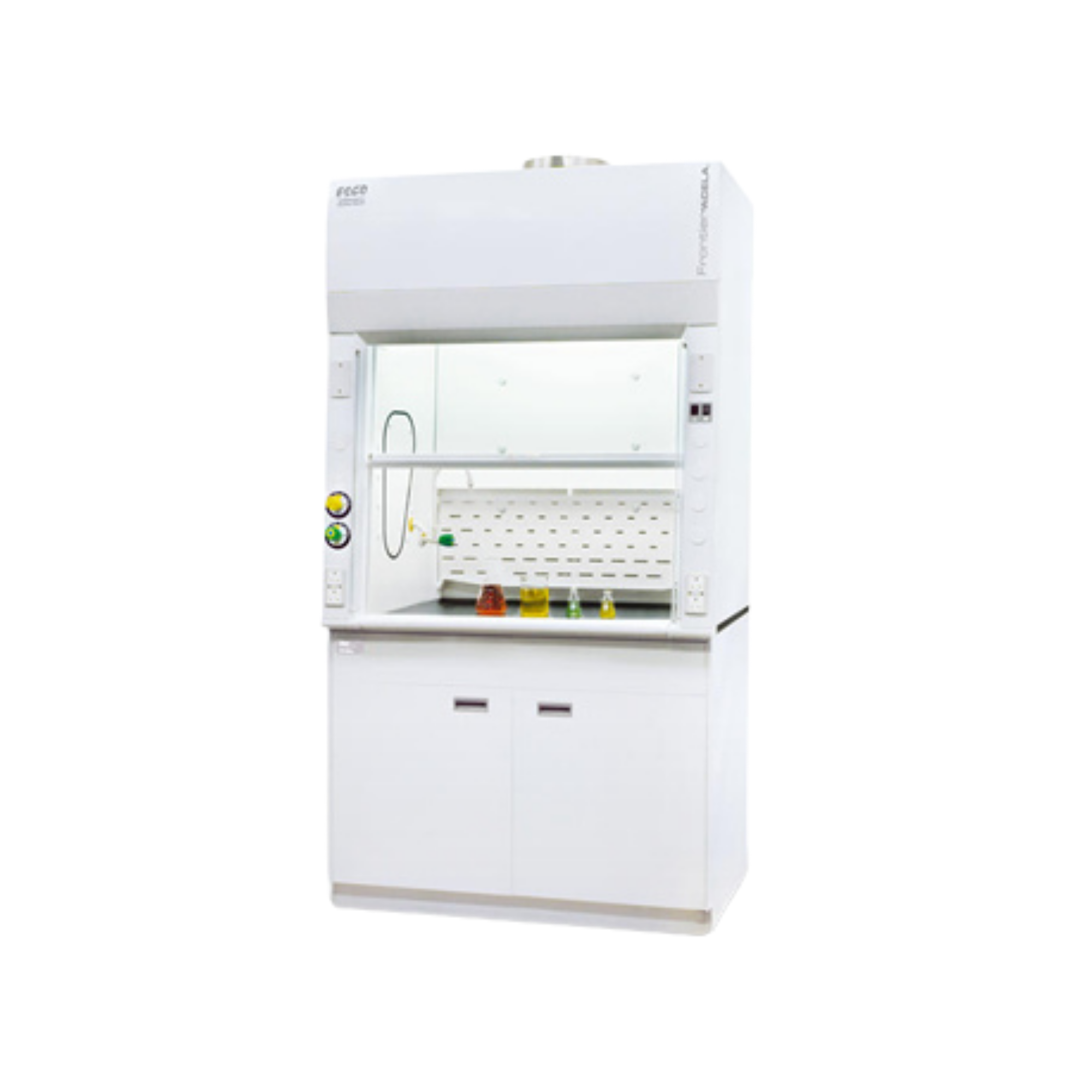

Esco Frontier® Acela™ Fume Hoods

• ASHRAE 110 certified/ EN14175 certified
• UL classified
• Excellent aesthetics
• 5 degree sloped front
• Unique perforated baffle design
• Superior containment at 0.3m/s
• High energy savings
• Available for immediate delivery
• Unique Hot Zone Baffles capture fumes quickly
• The tapered fiberglass exhaust collar reduces airflow turbulence, static pressure loss, noise level and increases face velocity uniformity
• Perfect Pitch Profile™. The gentle pitch of the hood profile enhances visibility
• Tri-wall construction and chain-and-sprocket sash system for maximum durability

• Sash stop limits sash movement beyond 457mm (18″), When raised above this height, sash will automatically and gently fall back to the safe level (Esco’s CreepDown Mechanism)
• Sash keylock available to keep sash in place at full open position for equipment loading, or at full close position to restrict access into hood
• Constant volume / high performance concept eliminates the need for complex VAV systems
• The Frontier Acela Fume Hood delivers outstanding containment (less than 0.05ppm, as manufactured) down to 60fpm face velocity at both 18″ restricted and full open sash openings, tested inhouse in accordance to the ASHRAE-110 and EN14175-3 test protocols
• Independently certified by Tintschl Engineering, Germany, to comply with the requirements of the EN14175 fume hood test standard
• All Frontier Acela Fume Hoods include 1 water and 1 gas Enhanz™ remote-controlled fixture plumbed to the top of the hood and 2 duplex outlets standard (specify outlet code when ordering)

OPERATOR SAFETY

• Unique Hot Zone Baffles capture fumes quickly.
• Tri-wall construction and chain-and-sprocket sash system for maximum durability.
• When the sash is raised above 18 inches, it will automatically and gently fall back to the appropriate level, ensuring operator safety. This is due to Esco’s unique “Creep-down Mechanism”.
• Constant volume / high performance concept eliminates the need for complex VAV systems.
• Delivers outstanding containment even down to 60fpm face velocity (in accordance to the ASHRAE-110 test protocols) offering substantial energy savings vs. conventional fume hoods (up to 40%) and maintains high security even when airflow fluctuations occur from the preset value.

OPERATOR BENEFITS

• The tapered fiberglass exhaust collar reduces airflow turbulence, static pressure loss, noise level and increases face velocity uniformity.
• Perfect Pitch Profile™. The gentle pitch of the hood profile enhances visibility and operator ergonomics.
• Sash key-lock available to keep sash in place at full open position for equipment loading, or at full close position to restrict access into hood.
• 5-degree front slope for user comfort and improved ergonomics.
