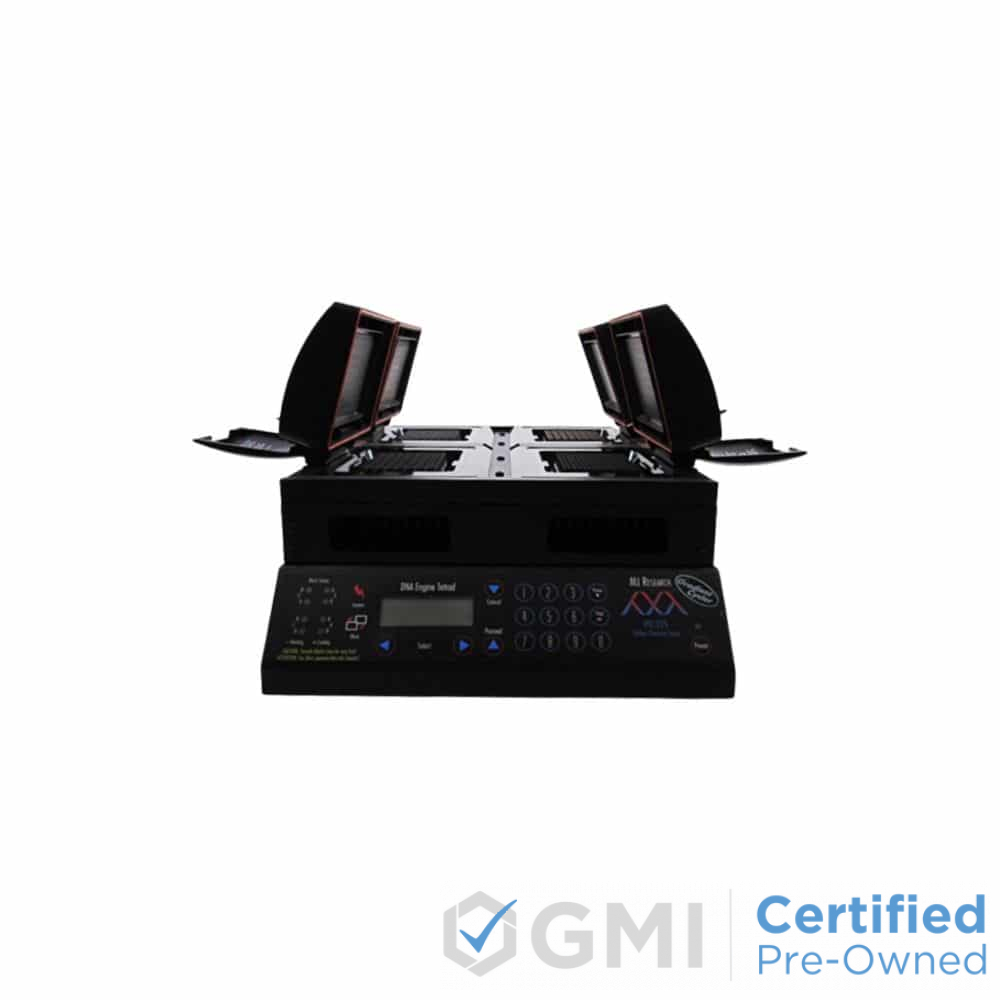

MJ Research Tetrad PTC-225 Thermal Cycler

SKU: 8252-30-1004 Category: Thermal Cyclers (PCR)

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation Have One To Sell?

Product Description

High density display
4 sample block capability
Real-time monitoring of cycling temperature
On-board point-and-click software navigation
Gradient and non-gradient controlled base options

The MJ Research PTC-225 is an innovative thermal cycling system capable of simultaneously running four individual sample blocks without compromising accuracy and performance. This reliable Tetrad system is ideally suited for labs with high throughput PCR applications. Additionally, the PTC-225 Thermal Cycler features a “hot swappable” block, as well as gradient and non-gradient controlled base options.

Notable features of the PTC-225 include a high-density display, an on-board point-and-click software navigation, and real-time monitoring of cycling temperature.

The Tetrad PTC-225 Thermo Cycler system includes the MJ Research PTC-225 thermo cycler base and four alpha blocks (96, 384, 30×30, 60×60 well).

Specifications


Thermal Range	-5 to 105°C, but no more than 30°C below ambient temperature
Thermal Accuracy	+/-0.3°C of programmed target at 90°C
Thermal Uniformity	+/-0.4°C well-to-well within 30 seconds of arrival at 90°
Ramping Speed	Up to 3C/sec
Sample Capacity	Four Alpha Block, Holds 96 x 0.2 ml tubes or one 96-well microplate/Block
Line Voltage	10A @ 200-240 VAC, 50-60Hz
Ports	One 25-pin 8-bit parallel interface printer port & RS-232 serial port
