This oven is the perfect material lock between the grey room and the cleanroom

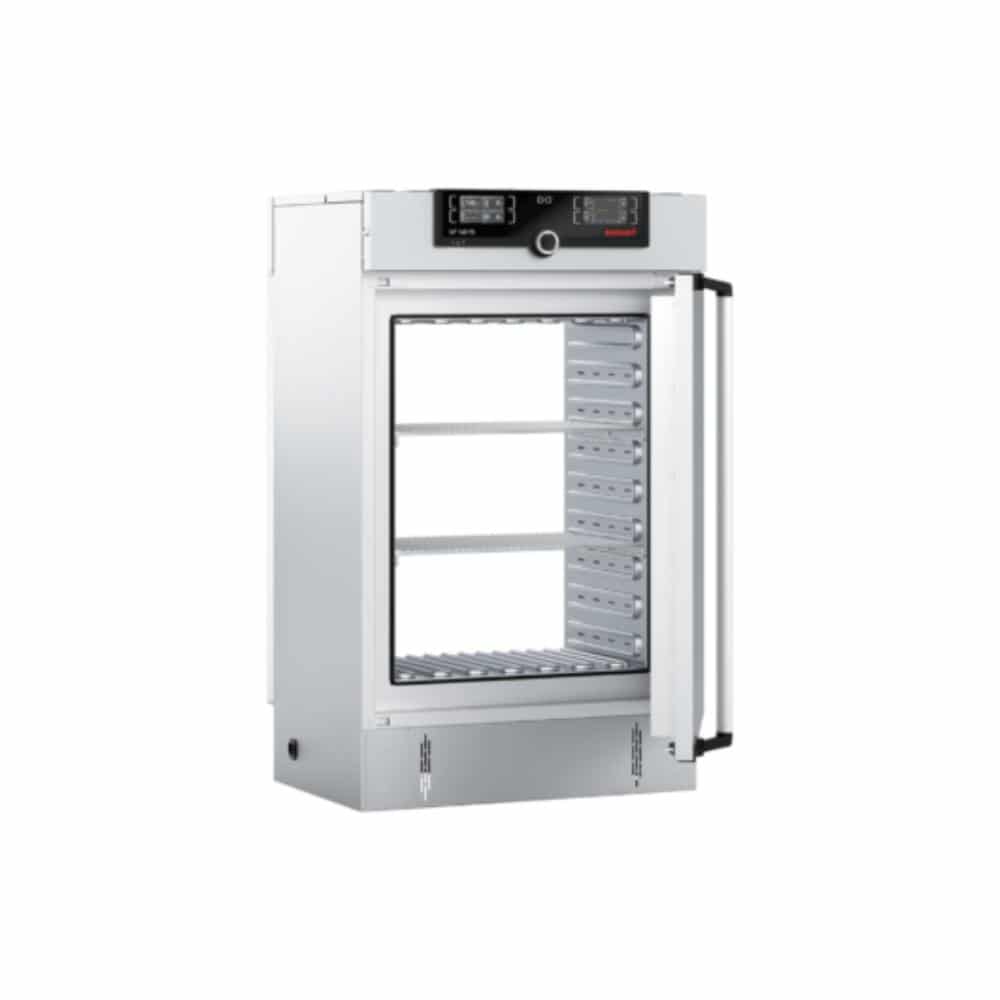

Memmert Pass-Through Ovens (UF TS)
$13,283.00 – $26,085.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Memmert pass-through ovens feature an easy-to-clean interior, fast recovery times after opening the door and homogenous temperature distribution.
Features include:
- Temperature range +250°C
- Model sizes from 161-749 liters in volume
- Forced air circulation
Stainless Steel Construction
Stainless steel construction inside and out. Memmert appliances feature welded/ rounded edges within the stainless steel chamber for a hygienic and easy-to-clean interior.
TwinDISPLAY
The more complex twin display allows users to control every aspect of equipment functionality. Even complex processes such as multiple overtemperature protection, visual and acoustic alarm as well as automated alarm messages can be programmed quickly and easily.
Technical Specifications
| Model sizes/Description | 160 | 260 | 450 | 750 | ||
|
Stainless steel interior
|
Volume approx. l | 161 | 256 | 449 | 749 | |
| Width (A) mm | 560 | 640 | 1040 | |||
| Height (B) mm | 720 | 800 | 720 | 1200 | ||
| Depth (C) mm | 400 | 500 | 600 | |||
| Max. number of grids/shelves number | 8 | 9 | 8 | 14 | ||
| Max. loading per grid/shelf kg | 20 | 30 | ||||
| Max. loading of chamber kg | 210 | 300 | ||||
| Max. loading per slide-in drip tray kg | 3 | 4 | 8 | |||
| Max. loading per bottom drip tray kg | 3 | 4 | 8 | |||
|
Textured stainless
steel exterior |
Width (D) mm | 745 | 825 | 1224 | ||
| Height (E) mm | 1233 | 1314 | 1233 | 1714 | ||
| Depth (without door handle, depth of handle 2x +56 mm) (F) mm | 582 | 682 | 782 | |||
|
Standard equipment
|
Stainless steel grids, electropolished | 2 | ||||
| Standard works calibration certificate (measuring point chamber center) | 160 | |||||
|
Temperature
|
Working temperature range °C | at least 10 above ambient temperature to +250 | ||||
| Setting temperature range °C | 20 to 250 | |||||
| Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 | |||||
|
Further data
|
Electrical load at 230 V, 50/60 Hz approx. W | 3200 | 3400 | – | ||
| Electrical load at 115 V, 50/60 Hz approx. W | 1800 | – | ||||
| Electrical load at 400 V and 3 x 230 V w/o neutral, 50/60 Hz | – | 4800 | 5000 | |||
|
Packing data
|
Net weight approx. kg | 120 | 138 | 213 | 260 | |
| Gross weight (packed in carton) approx. kg | 146 | 189 | 279 | 331 | ||
| Width approx. mm | 830 | 930 | 1330 | |||
| Height approx. mm | 1300 | 1380 | 1450 | 1920 | ||
| Depth approx. mm | 800 | 930 | 1050 | |||
| Order No. Pass-Through Ovens | UF160TS | UF260TS | UF450TS | UF750TS | ||
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
| Model | UF160TS, UF260TS, UF450TS, UF750TS |
