Product Description
Jeio Tech ON4-V Natural Convection Ovens are engineered for gentle, reliable thermal processing with uniform temperature distribution, ideal for drying heat-sensitive materials, powders, and glassware without airflow disturbance. Utilizing natural gravity convection, the ON4 series operates quietly and efficiently, making it well-suited for use in biology, chemistry, and quality control labs. The advanced model offers enhanced functionality such as programmable temperature ramping, a real-time graphical display, and RS-232/USB communication ports for data logging and external control. With PID temperature control, a durable corrosion-resistant chamber, and a user-friendly interface, the ON4 series delivers dependable performance for precise, disturbance-free heating applications.
Features

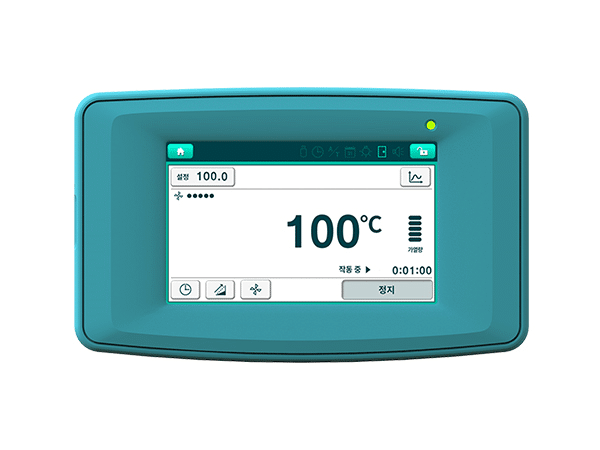

Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- 'Wait on / Wait off' timer function.
Convenient Structural Functions

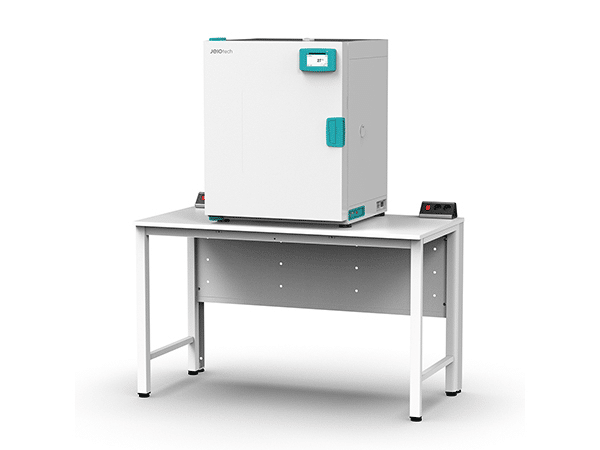

- Designed with a depth of less than 750 mm, making it easy and stable on a lab table.

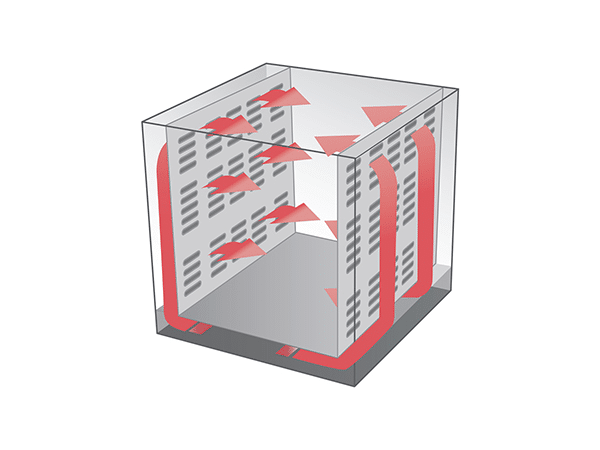

- Uniform and stable temperature distribution with multi-path airflow improves reliability of experiment data.
Supervise Equipment with Real-time Monitoring
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option).
- Monitor and control anywhere, anytime with LC GreenBox (Mobile Monitoring System, option).
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC.
- Test data are automatically stored and easily exported via USB; easy to edit data (in CSV format).
- Logs 36 recent events, including errors, opened door, etc.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option).
Reliable Temperature Control Performance
- Wide temperature range of up to 250°C.
- Temperature accuracy for wide range by 3-point calibration.
- Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(°C/min) per experiment.
- Uniform temperature distribution through airflow optimized for uniform heat transfer (within ±3.6 °C at 100°C).
Specifications
| Specification | Value |
|---|---|
| Chamber volume (L / cu ft) | 26 / 0.92 |
| Temperature | |
| Range (°C / °F) | Amb. +15 to 250 / Amb. +59 to 482 |
| Fluctuation at 100°C (±°C / °F) | 0.4 / 0.72 |
| Variation at 100°C (±°C / °F) | 2.8 / 5.04 |
| Heating time to 100°C (min.) | 25 |
| Recovery time at 100°C (min.) | 17 |
| Control panel | 5 inch TFT Color LCD |
| Communication interface | USB-B, RS-232 |
| Recently event record | 36 ea |
| Temperature ramping rate (°C/min. | °F/min) | 0 to 2.2 | 0 to 3.96 |
| Interior (W x D x H, mm / inch) | 273 x 270 x 350 / 10.75 x 10.63 x 13.78 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
| Net weight (Kg / lbs) | 33 / 72.8 |
| Quantity of shelves (standard/max.) | 2 / 4 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 |
| Number of air change per hour at 100°C | 16 |
| Electrical requirements | 120V, 60Hz, 6A |
| ※ Technical data according to DIN 12880 | |
Application
Laboratory ovens are used for high-temperature applications such as drying, curing, sterilizing, and heat-treating samples and equipment. Natural convection (gravity) ovens provide gentle, uniform heating without the use of a fan, making them ideal for drying heat-sensitive materials, powders, or lightweight samples that could be disturbed by airflow. Common applications include drying glassware, evaporating solvents, and performing low-impact baking or curing processes. Their quiet operation and energy efficiency make them well-suited for routine use in biology, chemistry, and quality control laboratories.
