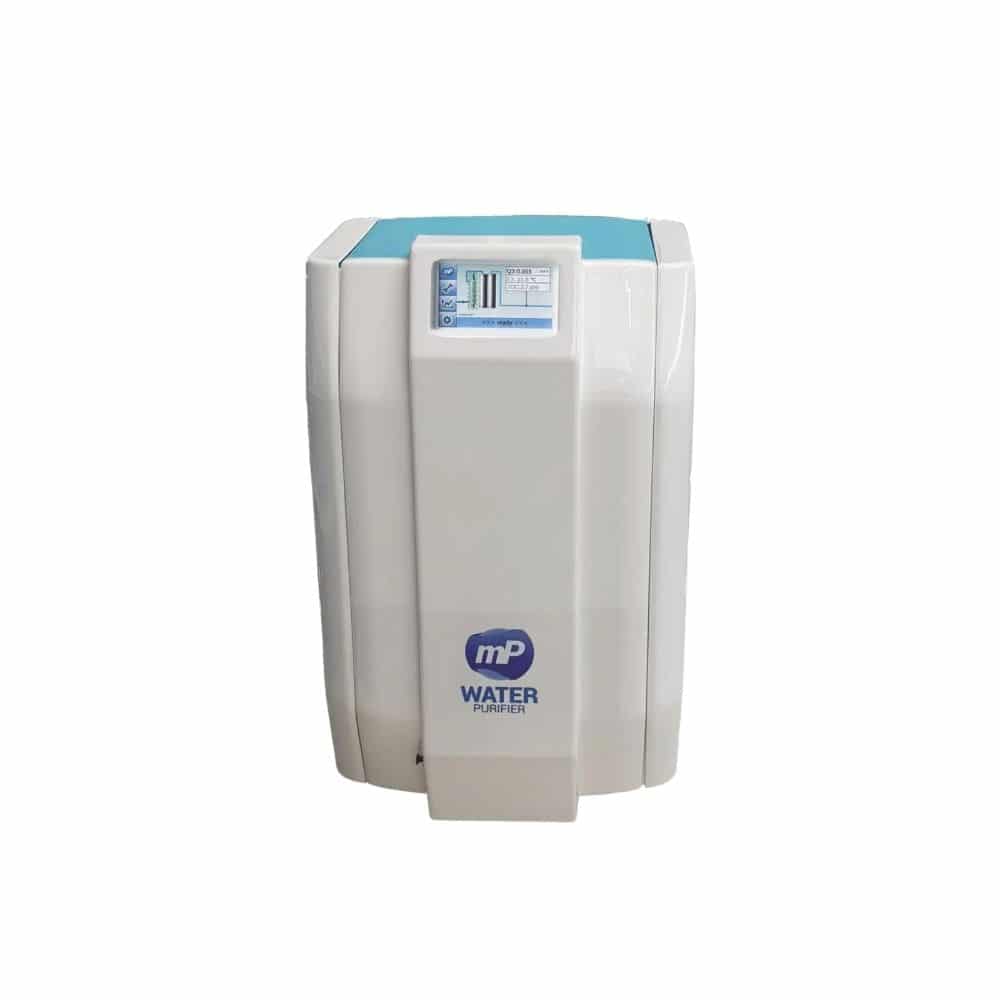

MembraPure AquaRO² & EDI²
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The series of AquaRO², AquaRO²DI and EDI² are based on a reverse osmosis (RO) unit to produce deionised water. The EDI² series further processes the osmosis water by using an EDI cell to get Type II water. All sytems provide you with reliable and compact systems at low operating costs. The advantages of both series is the flexibility in terms of configuration. A production rate of 8 to 40 L/h in three different degrees of pure water (10 µS/cm to 0.2 µS/cm) is available. Optionally the systems can be equipped with a dispenser. The customer can select a 35 L ,70 L or individual tank size.
Advantages of the new systems
• Compact housing
• Big touchscreen
• Remote service module
• Big touchscreen
• Remote service module
• Menus and wizards easy to use and mistake avoiding
• New fixed and flexible dispenser
• Easy access for cartridge exchange
• Easy access for cartridge exchange
Options
Bench Integrated Configuration (BI version)
To save valuable benchtop space the system can be ordered as BI configuration. The system will be installed underneath the work bench and only the display and dispenser are mounted on the wall.
Wall Mounted Configuration
To save valuable benchtop space the system can be ordered as wall mounted configuration. the whole system can be mounted on the wall with inclined display.
Upgrade with Dispenser
Upgrade of system with fixed and flexible dispenser for the series of AquaRO² 10 + 20 and EDI² 10 + 20.
Volumetric Dispensing
Our dispenser for the series of AquaRO² 10 + 20 and EDI² 10 + 20 allows the volumetric controlled dispensing of water with an increment of 0.1 L and a tap volume from 0.1 to 99 L. The system prevents overflow of containers and allows to dispense water without supervising.
Additional Tank
The series of AquaRO² and EDI² can be equipped with a tank of 35 L or 70 L or individual size and if requested also with an integrated UV lamp. An exception is the AquaoRO² 8 P10 with an integrated tank of 10 liters.
Softener Unit
Compact system in cabinet including control box for the pretreatment.
Technical Specifications
Technical Specifications of produced water:
- Resistivity/Conductivity:
> 0.1 MOhm x cm to > 5 MOhm x cm
< 10 µS/cm to < 0.2 µS/cm
- production rate:
8 L/h to 40 l/h
- Total Organic Carbon (TOC):
< 20 ppb to 50 ppb
Technical Specifications |
||||
|---|---|---|---|---|
| Model | AquaRO² | AquaRO²DI | AquaRO² 8 P10 | P10 DI | EDI² |
| pure water quality | < 10 µS/cm | < 2 µS/cm; Type II | < 10 µS/cm | < 2 µS/cm | < 0.2 µS/cm; Type II |
| resistivity | > 0.1 MegaOhm/cm | > 0.5 MegaOhm/cm | > 0.1 MegaOhm/cm | > 0.5 Megaohm/cm | > 5 MegaOhm/cm |
| total organic carbon (TOC) | < 50 ppb | < 40 ppb | < 40 ppb | < 20 ppb |
| production rate | 8 L/h to 40 L/h | 8 L/h to 20 L/h | 8 L/h | 10 L/h to 40 L/h |
| bacteria | < 50 cfu/mL | < 50 cfu/mL | < 50 cfu/mL | < 10 cfu/mL |
| DNAse | < 5 pg/mL* | |||
| dimensions, weight, power (except AquaRO² 40 and EDI²40) | ||||
| AquaRO²: 504 x 340 x 535 mm, 16 to 20 kg, 110 V – 230 V | ||||
| EDI²: 504 x 340 x 535 mm, >40 kg, 110 V – 230 V | ||||
Feed Water Requirements |
||
|---|---|---|
| Model | AquaRO² | EDI² |
| type of feed water | potable water / tap water | potable water / tap water |
| feed water conductivity | < 1400 µS/cm | < 1400 µS/cm |
| inlet pressure | 1.5 to 6 bar | < 5 bar |
| free chlorine | < 0.1 mg/L | < 0.02 mg/L |
| Silt Density Index (SDI) | < 3 | < 3 |
| pH | 3 to 9 | 3 to 9 |
| temperature | 5 to 25 °C | 5 to 25 °C |
| iron / manganese | n. a. / n. a. | < 0.01 mg/L / < 0.01 mg/L |
| sulfate | n. a. | < 2 mg/mL |
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
