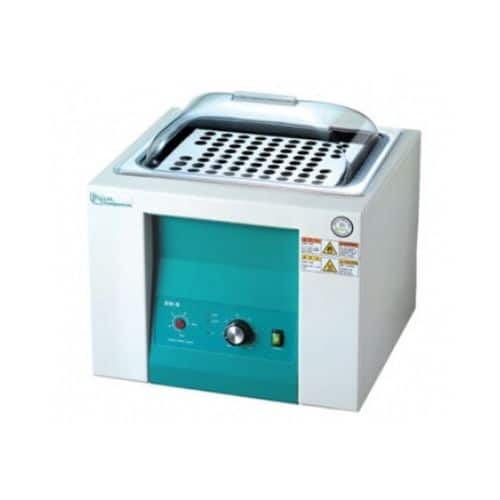

Jeio Tech Heating Baths (Economy)

Category: Water Baths Brand: Jeio Tech

Product Description

GMI is proud to offer our range of brand new water baths.

Model		BW-05B		BW-10B		BW-20B
Bath Volume (L / cu ft)		3.5 / 0.1		11.5 / 0.4		20 / 0.7
Working Temperature Range (℃ / oF)		Amb. +7 to 100 / Amb. +12.6 to 212
Temperature Stability ¹⁾ (±℃ / oF)		±0.5 / 0.9
Dimension	Bath Opening / Depth (W×L, D) (mm / inch)	240×136, 110 / 9.4×5.4, 4.5		300×240, 165 / 11.8×9.5, 6.5		498×300, 165 / 19.6×11.8, 6.5
	Overall (W×L×H) (mm / inch)	303×242×245 / 11.9×9.5×9.6		357×330×290 / 14.1×13×11.4		564×392×290 / 22.2×15.4×11.6
	Net Weight (kg / lbs)	6.5 / 14.3		10 / 22		18.5 / 40.8
Electrical Requirements (230V)		60Hz, 3A	50Hz, 3A	60Hz, 4.3A	50Hz, 4.3A	60Hz, 8.7A	560Hz, 8.7A
Cat. No.		AAH46011K	AAH46012K	AAH46021K	AAH46022K	AAH46031K	AAH46032K
Electrical Requirements (120V)		60Hz, 5.8A		60Hz, 8.3A		60Hz, 8.3A
Cat. No.		AAH46013U		AAH46023U		AAH46033U

Simple and quick control panel.
Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.
Low-profile design with sloped control panel for easier access and better safety.
Variety of accessories are available to meet application demands.

Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
Complete safety protection system with warning alarms.
– Low fluid level and dry-running, over-temperature, over-current.
Splash-proof keypad.
