JeioTech Shaking Heating Bath
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description

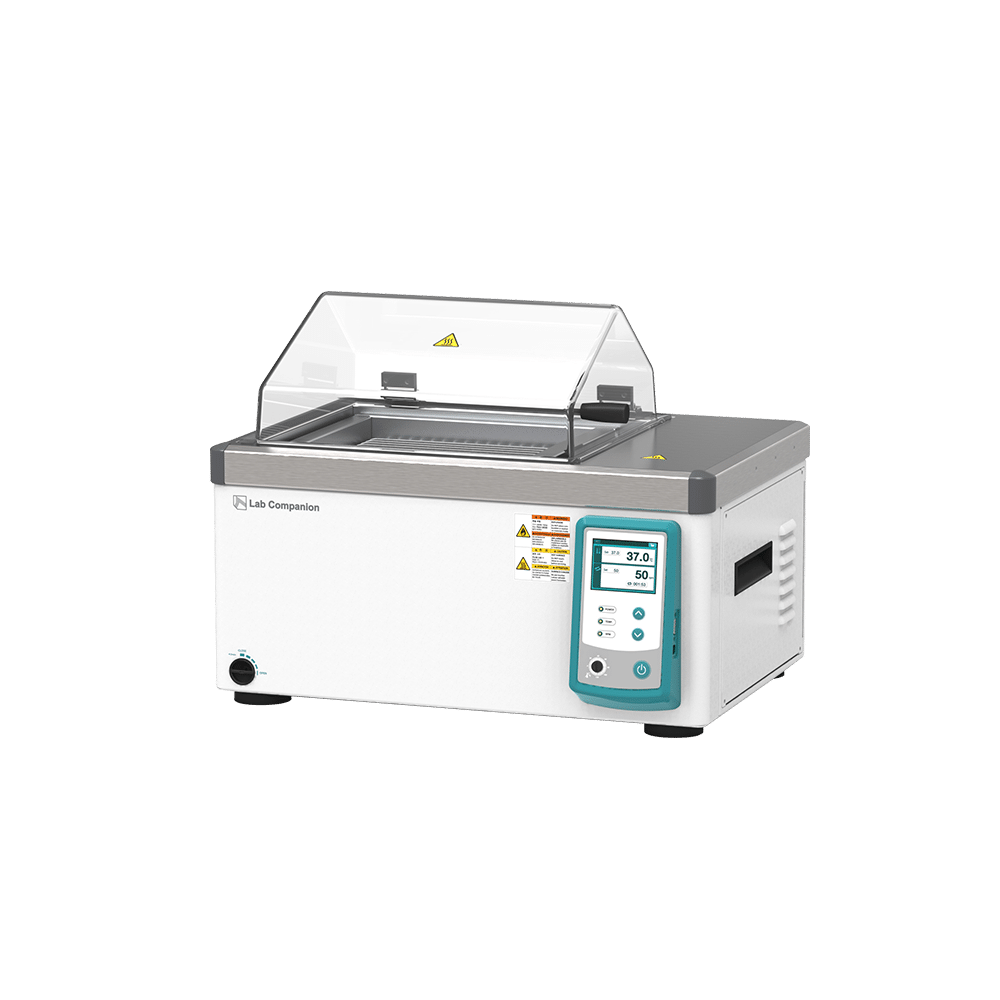

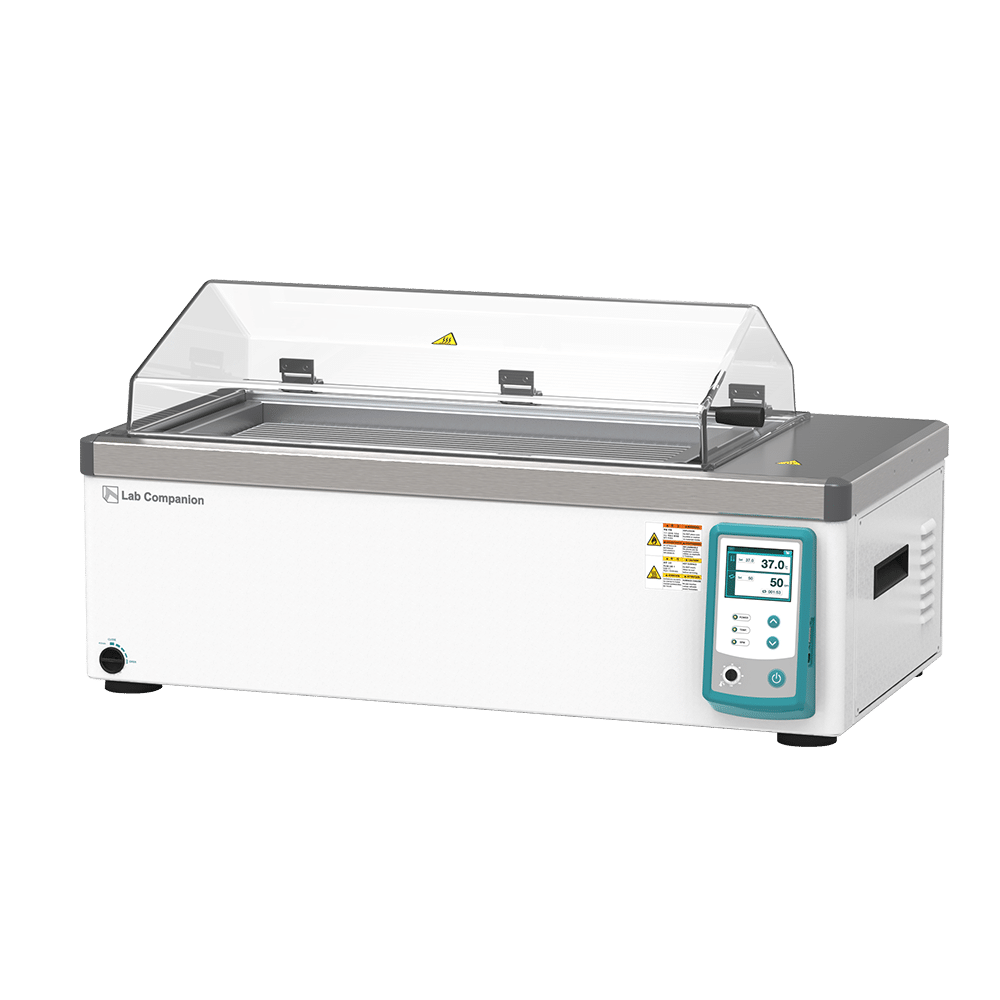

Reciprocal shaking heating bath with transparent cover
Ideal for sample incubation condition for DNA, tissue culture, heat-sensitive samples.
Performance
- Temperature range from ambient +5°C to 100°C (amb. +9℉ to 212℉).
- Precise rpm(Max 200rpm) and temperature(Max 100℃) control with accuracy.
- Excellent temperature distribution by shaking motion. (50℃ ±0.1℃)
- Better performance with 3-points temperature calibration and 1-point shaking calibration.
- Optimal PID control for the Bath.
- Bath structure for a smooth water circulation flow.
- Extended height for larger sample volumes. (maximum 2.8L of flasks)
Convenience
- Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
- Easy operation with a touch color display.
- Drain port of better accessibility located on the side.
- USB port to connect to PC for recording and monitoring.

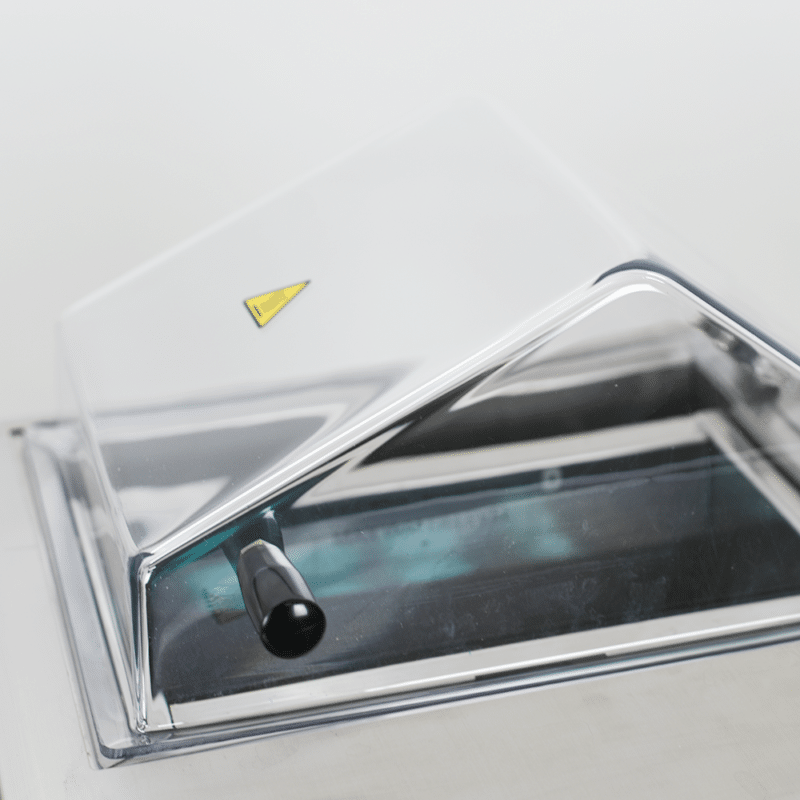

- Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
- Corrosion resistance spring wire rack (1ea) is provided. (Standard)
- Real-time temperature and rpm control via mobile monitoring system. (Option)
Safety
- Audio and visual alarms and heater shutdown in case of water shortage.
- Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
- Over-current and short circuit protection of device.
Specifications
| Model | BS2-10 | BS2-15 | BS2-20 | BS2-30 | |
|---|---|---|---|---|---|
| Bath volume (L / cu ft) | 17 / 0.6 | 26 / 0.9 | 37 / 1.3 | 55 / 1.9 | |
| Working temperature range (℃ / ℉) | Amb. +5 to 100 / Amb. +9 to 212 | ||||
| Temperature stability at 50℃ (±℃ / ℉) | 0.1 / 0.18 | ||||
| Shaking system | Motion Type | Reciprocal | |||
| Frequency (rpm) | 30 to 200 | ||||
| Stroke Length (mm / inch) | 25 / 0.98 | 25 / 0.98 | 30 / 1.18 | 30 / 1.18 | |
| Dimension | Bath Opening /Depth
(W×L, D) (mm / inch) |
143×269, 192
/ 5.6×10.6,7.6 |
263×269, 192
/ 10.4×10.6, 7.6 |
415×269, 192
/ 16.3×10.6,7.6 |
565×319,192
/ 22.2×12.6, 7.6 |
| Exterior
(W×L×H) (mm / inch) |
474×417×426
/ 18.7×16.4×16.8 |
594×417×426
/ 23.5×16.4×16.8 |
746×417×426
/ 29.4×16.4×16.8 |
882×467×426
/ 34.7×18.4×16.8 |
|
| Net weight (kg / lbs) | 23 / 51 | 27 / 60 | 31 / 68 | 38 / 84 | |
| Electrical requirements (120V, 60Hz, A) | 7.1 | 8.8 | – | – | |
| Cat. No. | AAH44103U | AAH44153U | – | – | |
| Electrical requirements (230V, 60Hz, A) | 3.7 | 4.6 | 8.9 | 8.9 | |
| Cat. No. | AAH44105K | AAH44155K | AAH44205K | AAH44305K | |
※ The lowest controllable temperature depends on variations in room and sample temperatures. Please contact technical support for consultation before purchasing.
※ Technical data according to DIN 12876.
※ Bath fluid : Water
