Product Description

KNAUER AZURA Prep Pilot LC System – High Pressure Gradient – 1,000 ml/min

• System type: Pilot
• Max. flow rate: 1000 ml/min
• Gradient: lpg
• Maximum delivery pressure [psi]: 730 psi
• Maximum delivery pressure [bar]: 50 bar
• Maximum delivery pressure [MPa]: 5 MPa
• Detector: Variable single wavelength detection UV/VIS
• Injection: automatic injection
• Fractionation: Foxy R2
• Software: ClarityChrom
• Warranty: 2 year factory warranty

Choose the Pilot Prep LC system if you want to increase your productivity even more. As for the AZURA Lab Prep LC system you can freely build up your system. Flow rates up to 1 000 ml/min and loads up to several grams are possible. Optional peak and solvent recycling can be set up to increase separation power and reduce separation costs significantly.

• Pilot Prep HPLC system with binary high pressure gradient
• Sample pump
• Injection valve
• UV/VIS detector with one variable wavelength
• 12 Port fractionation valve
• Intuitive PurityChrom® software

KNAUER AZURA Prep Pilot LC System – High Pressure Gradient – 1,000 ml/min

Preparative HPLC System with 1,000 ml/min max. flow rate

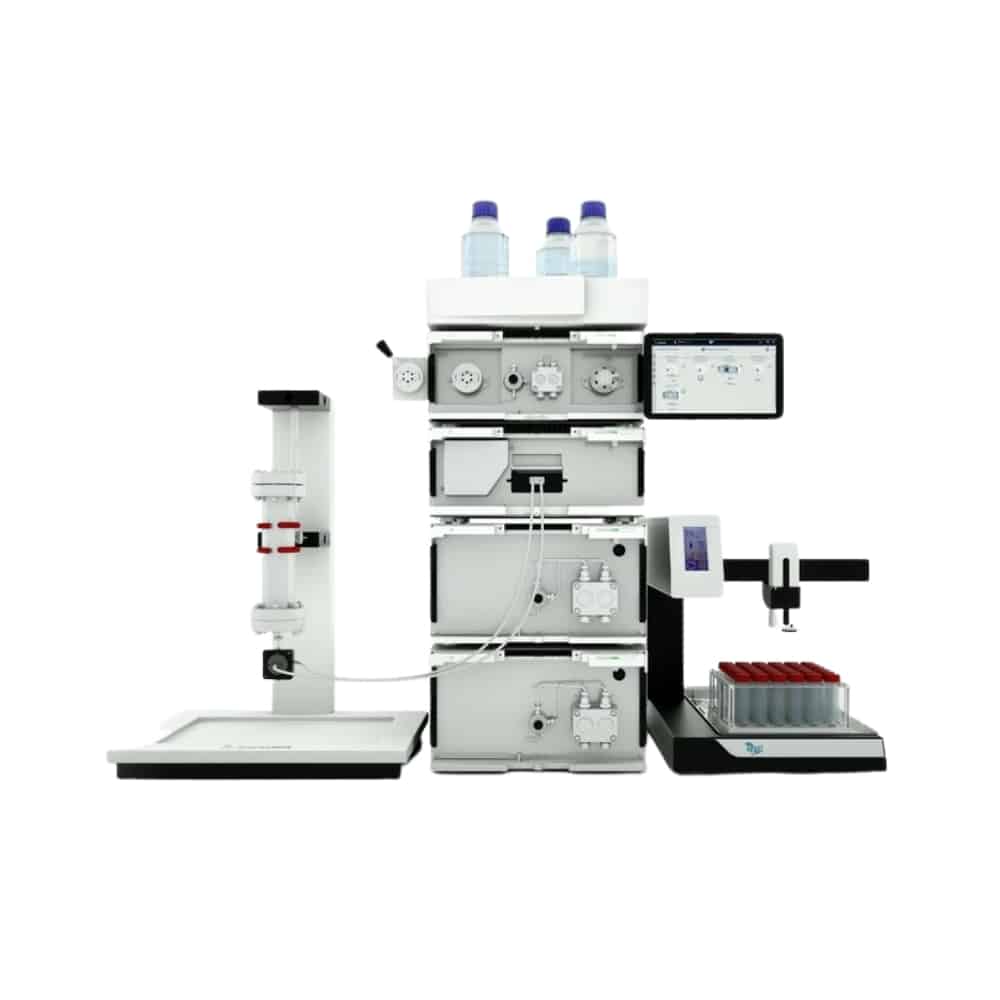

The AZURA Pilot Prep LC 1000 HPG system is a complete binary high pressure gradient (HPG) HPLC system for the purification of samples in the laboratory scale. It is designed and optimized for the purification of gram samples. This system proposal consists of two preparative HPLC pumps, a UV/VIS detector and a freely customizable combination module. The AZURA P 2.1L pump covers a wide flow rate range and pressure capabilities. In the current setup, it supports max. pressures up to 75 bar at flow rates up to 350 ml/min (50 bar from 600 – 1000 ml/min). The integrated automatic recognition of the pump head with RFID technology allows fast adaptions of the pump for various applications. The HPG setup enables the precise formation of binary gradients. Besides, ternary and quaternary gradients are accessible by integration of additional preparative pumps. The AZURA UVD 2.1L represents a UV/VIS detector with a variable single wavelength for the detection of fast eluting peaks.

The system is completed by an AZURA assistant ASM 2.1L for preparative HPLC. The assistant module can be customized to individual requirements. For example, large sample volumes can be applied automatically via the integrated injection valve and feed pump. The AZURA Preparative HPLC system comes with an eluent tray for safe storage of eluent bottles and an integrated leak management system with sensors. Columns (20 mm and 30 mm ID) can be attached with an optional AZURA mounting bracket at both sides of each AZURA element. A leak sensor and the capillary guidance as well as the optional Mobile Controlwith touch screen facilitate the safe and user friendly operation. Modern design with completely demountable fronts turn the system into a visual highlight.

Download KNAUER PRep LC Brochure

Specifications

System type	Lab
Max. flow rate	1000 ml/min
Gradient	hpg
Maximum delivery pressure [psi]	730 psi
Maximum delivery pressure [bar]	50 bar
Maximum delivery pressure [MPa]	5 MPa
Detector	Variable single wavelength detection UV/VIS
Injection	automatic injection
Fractionation	Foxy R2
Software	ClarityChrom

Download System Proposal
