JeioTech Lab Companion Natural Convection Oven (Standard)
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- ‘Wait on / Wait off’ timer function.
3.5-inch touch display

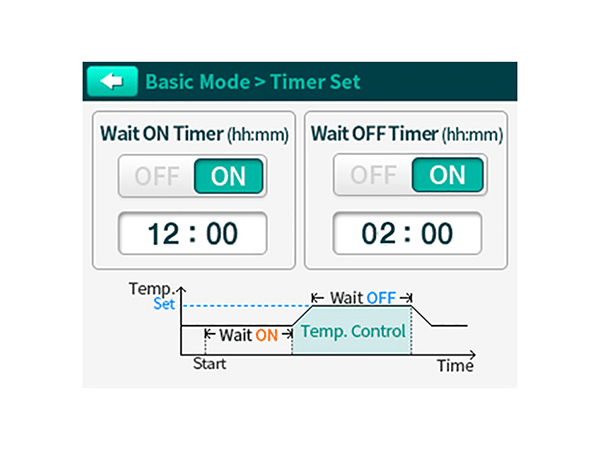

Wait on & Wait off timer
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±3.6 ℃ at 100℃)

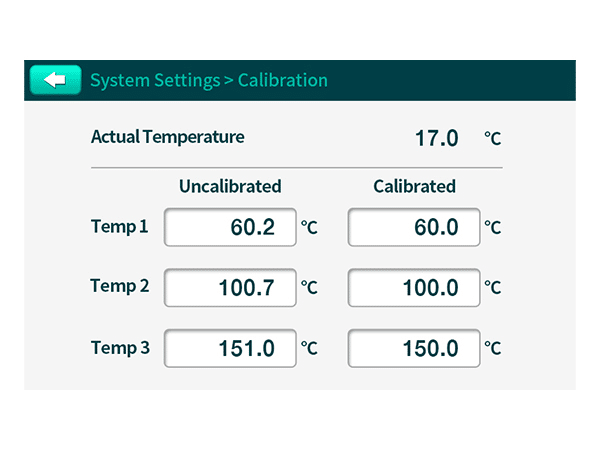

Accurate temperature control with 3-point calibration

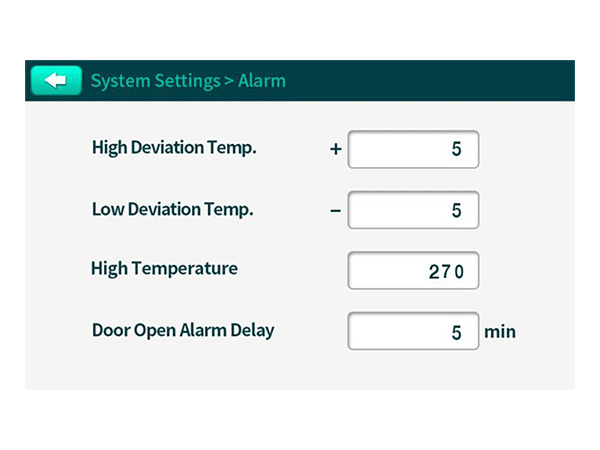

Settings for temperature deviation
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)

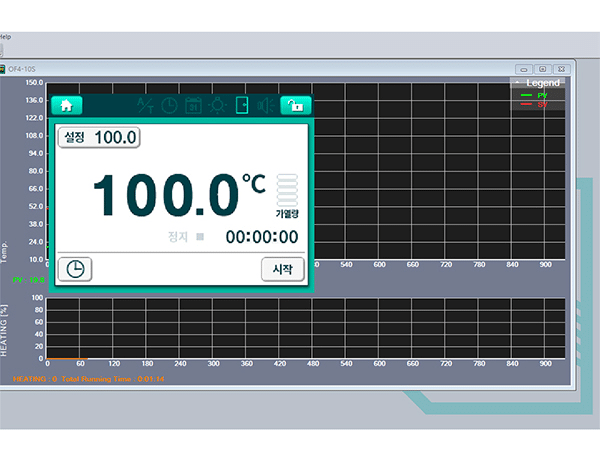

Manipulation via PC (option)

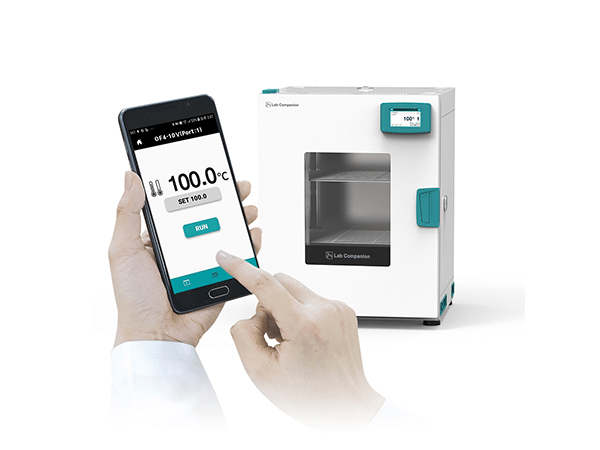

Real-time monitoring via mobile devices (LC GreenBox: option)
Ensuring User Safety
- Effectively removes fumes from the inside of the chamber via the top vent hole. (ON4-03)
- Safe surface even when operating at max temperatures. (less than 70℃ at 250℃)
- Implemented with the top-rated overheating prevention system. (Patent 10-0397583)
- Over Temperature Limiter.
- Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.

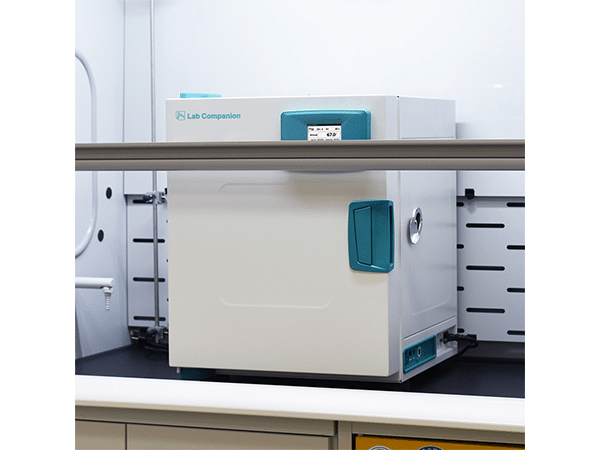

Removes fume from the inside of the chamber

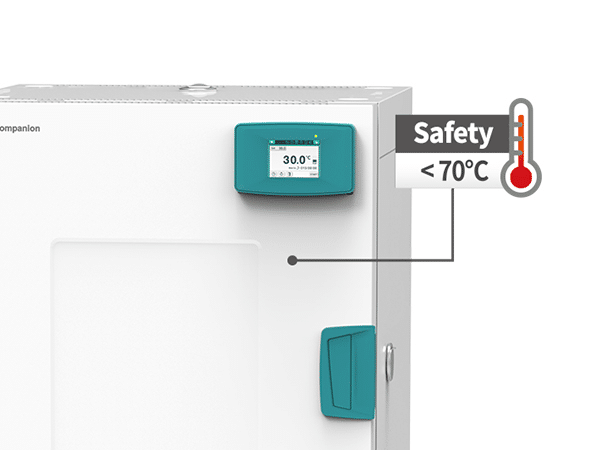

Safe surface even at maximum temperature
Convenient Structural Functions
- Logs the last 12 events, including run times, stops, and errors.
- Double stackable with stacking set (option) maximizes space utilization.
- Hands-free™ door allows both hands free while holding samples.

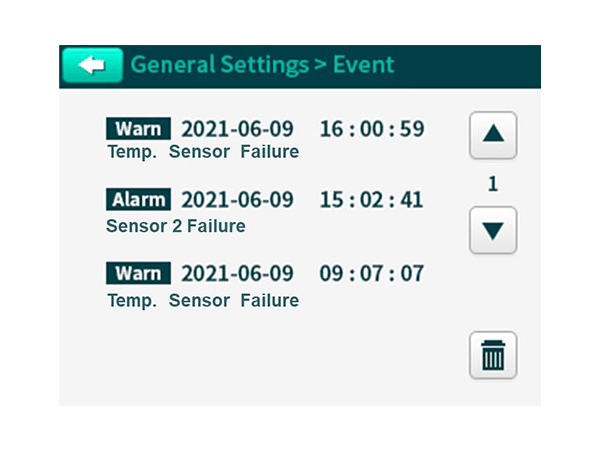

Logs the recent 12 events

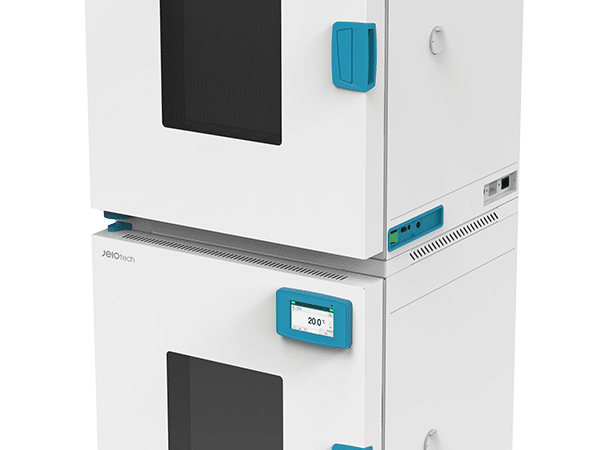

Increased space utilization by double stacking (stacking set : option)
| Model | Solid Door (without window) | ON4-03S | ON4-05S | ON4-10S | ON4-15S |
|---|---|---|---|---|---|
| Window door | ON4-03SW | ON4-05SW | ON4-10SW | ON4-15SW | |
| Chamber volume (L / cu ft) | 26 / 0.92 | 58 / 2.05 | 110 / 3.88 | 147 / 5.19 | |
| Temperature | Range (℃ / ℉) | Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
| Fluctuation at 100℃ (±℃ / ℉) | 0.4 / 0.72 | 0.5 / 0.90 | 0.5 / 0.90 | 0.5 / 0.90 | |
| Variation at 100℃ (±℃ / ℉) | 2.8 / 5.04 | 2.6 / 4.68 | 3.6 / 6.48 | 3.5 / 6.30 | |
| Heating time to 100℃ (min.) 1) | 25 | 39 | 22 | 21 | |
| Recovery time at 100℃ (min.) | 17 | 19 | 10 | 9 | |
| Control panel | 3.5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 (option) | ||||
| Function | Recently event record | 12 ea | |||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 273 x 270 x 350 / 10.75 x 10.63 x 13.78 |
340 x 390 x 422 / 13.4 x 15.35 x 16.61 |
441 x 420 x 597 / 17.36 x 16.54 x 23.5 |
500 x 446 x 659 / 19.69 x 17.56 x 25.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 33 / 72.8 | 53 / 116.8 | 63 / 138.9 | 73 / 160.9 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Number of air change per hour at 100℃ | 16 | ||||
| Electrical requirements (230V, 50 / 60Hz, A) | 3.2 | 3.5 | 5.7 | 7.4 | |
| Cat. No. |
Solid Door (without window) | AAH15045K | AAH15065K | AAH15075K | AAH15085K |
| Window door | AAH15145K | AAH15165K | AAH15175K | AAH15185K | |
| Electrical requirements (120V, 60Hz, A) | 6 | 6.7 | 10.9 | 14.2 | |
| Cat. No. |
Solid Door (without window) | AAH15046U | AAH15066U | AAH15076U | AAH15086U |
| Window door | AAH15146U | AAH15166U | AAH15176U | AAH15186U | |
¹⁾ Heating time is defined as the time taken to reach 98% of the set temperature.
※ Technical data according to DIN 12880
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
