Product Description

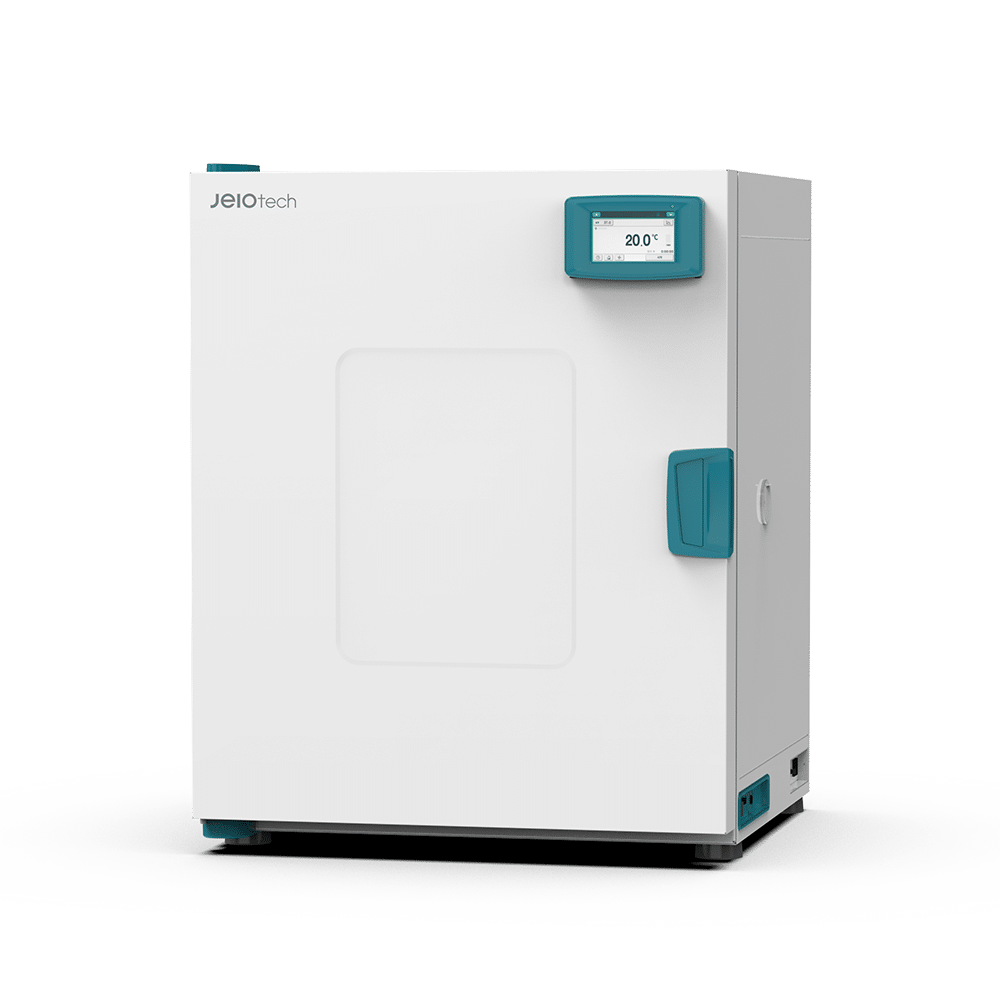

Jeio Tech IB4-V Advanced Incubators deliver reliable and uniform temperature control for a variety of biological and clinical applications. Equipped with a forced convection system and precise PID control, the IB4 series ensures consistent internal conditions ideal for microbial culture, sample incubation, and stability testing. The advanced model offers enhanced functionality, including fan speed control, temperature ramp-up programming, a real-time graphical display, and RS-232/USB communication ports for data logging and remote monitoring. Designed with a durable interior, adjustable shelving, and built-in safety features, the IB4 series is a versatile and dependable solution for research, pharmaceutical, and diagnostic laboratories.
Features
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- 'Wait on / Wait off' timer function.
Unique Structural Functions

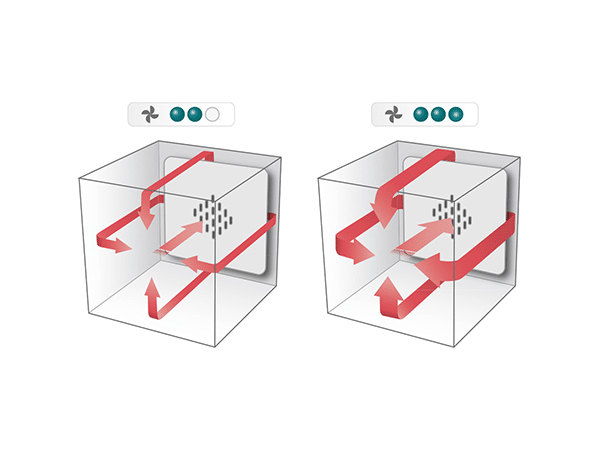

- Opti-flow™, the fan speed control function based on sample and testing conditions.
- stackable with stacking set (option) maximizes space utilization.
Supervise Equipment with Real-time Monitoring
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC.
- Test data are automatically stored and easily exported via USB; easy to edit data. (in CSV format)
- Logs 36 recent events, including errors, opened door, etc.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
Reliable Temperature Control Performance
- Temperature accuracy for wide range by 3-point calibration
- Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(°C/min) per experiment.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±0.41 °C at 37°C)
Specifications
| Specification | Value |
|---|---|
| Chamber volume (L / cu ft) | 25 / 0.88 |
| Temperature | |
| Range (°C / °F) | Amb. +5 to 80 / Amb. +9 to 176 |
| Fluctuation at 37°C (±°C / °F) | 0.10 / 0.18 |
| Variation at 37°C (±°C / °F) | 0.23 / 0.41 |
| Heating time to 37°C (min) | 5 |
| Recovery time at 37°C (min) | 5 |
| Control panel | 5 inch TFT Color LCD |
| Communication interface | USB-B, RS-232 |
| Recently event record | 36 ea |
| Temperature ramping rate (°C/min. | °F/min) | 0 to 8.0 | 0 to 14.4 |
| Interior (W x D x H, mm / inch) | 300 x 210 x 400 / 11.81 x 8.27 x 15.75 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
| Net weight (Kg / lbs) | 32 / 70.55 |
| Quantity of shelves (standard/max.) | 2 / 4 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 |
| Electrical requirements | 120V, 60Hz, 5.8A |
| ※ Technical data according to DIN 12880 | |
Application
Incubators are used to maintain a stable temperature environment for the cultivation, storage, and testing of biological samples. Common applications include cell and microbial culture, enzyme reactions, sample incubation, and stability testing. They are widely used in microbiology, biotechnology, pharmaceutical, and clinical laboratories for growing bacteria, yeast, and other organisms under controlled conditions, as well as for warming reagents or samples prior to analysis.
