Product Description
Jeio Tech ISF Shaking Incubators are robust, top-loading units designed to provide reliable temperature control and efficient orbital shaking for a wide range of biological and microbiological applications. Ideal for bacterial and yeast cultivation, cell culture in suspension, and protein expression, the ISF series combines precise PID temperature control with a durable shaking mechanism to ensure consistent and uniform sample growth. Its top-loading design allows easy access and accommodates large flasks and high-volume containers, making it suitable for high-capacity workflows. Featuring a spacious chamber, adjustable shaking speed, and forced-air circulation, the ISF Shaking Incubators offer dependable performance for research, pharmaceutical, and biotechnology laboratories requiring robust and user-friendly incubation with agitation.
Features
Features 1
- Structural Functional Features
Features 2
- Large-capacity incubated shaker model.
- Up to 80°C, 500rpm enables setting of various experimental conditions.
- It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254)
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Easy to move/fix the product.
- Stable shaking of high-load samples.
- (patent registered: 10-1678160)
- Use Convenience Features
Features 3

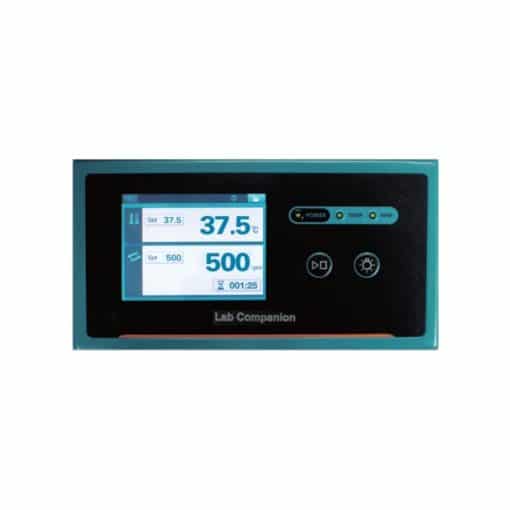

- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
- (when purchased LC GreenBox)
- Countdown timer (999 hours 59 minutes) of shaking operation.
- Spill drain port for internal cleanliness and easy maintenance.
- Outstanding Safety
Features 4
- Electronic over temperature protection system.
- (A-OT, advanced over temperature limiter)
- Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
- Conventional over-temperature protection system.
- (B-OT, backup over temperature limiter)
- A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
- Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
- Smart Self-diagnosis
Features 5
- Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
Specifications
| Specification | Value |
|---|---|
| Temperature | |
| Range (°C / °F) | Amb. +5 to 80 / Amb. +9 to 176 |
| Fluctuation at 37°C (±°C / °F) | in flask 0.1 / 0.18 |
| Variation at 37°C (±°C / °F) | in flask 0.5 / 0.90 |
| Refrigerator (Hp) | – |
| Shaking system | |
| Motion type Orbital | |
| Speed range (rpm) | 30 to 300 |
| Max. speed per permissible load (rpm) | 300 (max. 20 kg / 44.1 Ibs) |
| 200 (max. 35 kg / 77.2 Ibs) | |
| Amplitude size (mm / inch, dia.) | 50.8 / 2 |
| Speed stability2) | (rpm, %) ±1 |
| Timer (count-down) | 999 hr 59 min. |
| Dimension | |
| Chamber volume (L / cu ft) | 270 / 9.5 |
| Platform (W x D, mm / inch) | 755 x 520 / 29.7 x 20.5 |
| Interior (W x D x H, mm / inch) | 894 x 634 x 480 / 35.2 x 25 x 18.9 |
| Exterior (W x D x H, mm / inch) | 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8 |
| Net weight (Kg / lbs) | 277 / 610.7 |
| Electrical requirements (120V, A) | 60Hz, 7.3 |
Application
Shaking Incubator are used to provide simultaneous temperature control and agitation for the growth of microorganisms, cell cultures, and other biological samples. Common applications include bacterial and yeast cultivation, cell culture in suspension, protein expression, and enzyme or fermentation studies. By combining controlled incubation with orbital shaking, Shaking Incubators ensure optimal mixing, oxygen transfer, and uniform growth conditions, making them essential in microbiology, biotechnology, pharmaceutical, and life science research.
