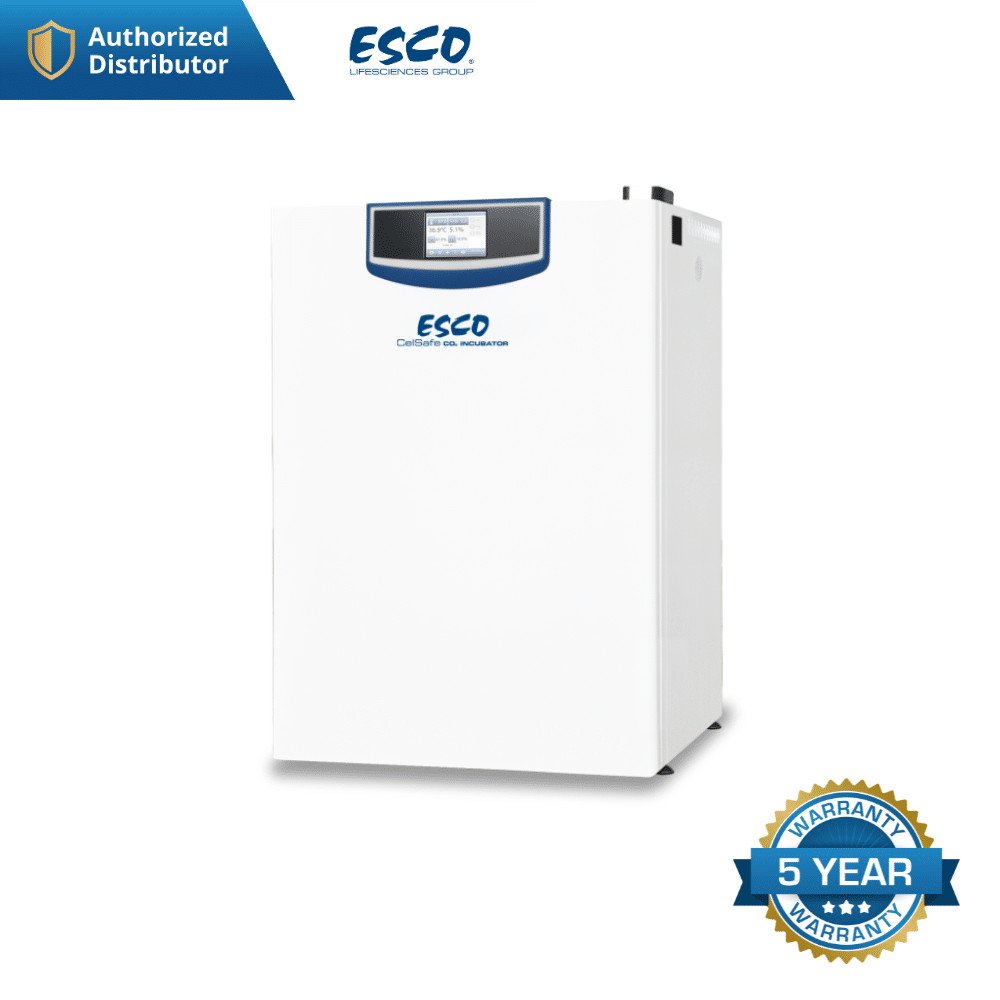

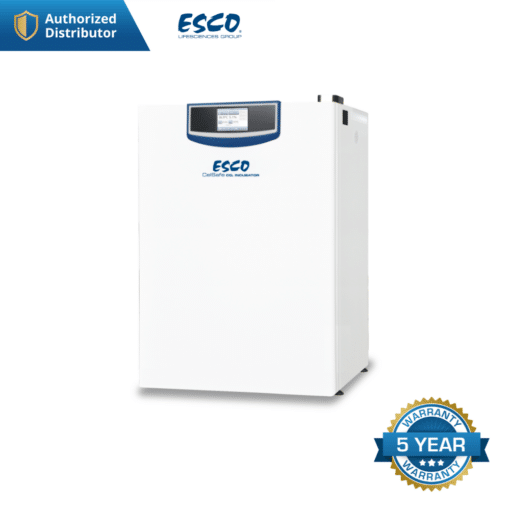

Esco’s CelSafe® CO₂ incubator

Product Description

High Heat Sterilization Cycle

• Fully automatic 200°C sterilization cycle with a simple touch on the screen.
• Effectiveness of high heat sterilization cycle is validated thru in-house laboratory test.
• All components and accessories are designed to meet 200°C temperature requirement.
• Complies with different international guideline requirements for dry heat sterilization such as U.S. and E.U. Pharmacopeias.
• Everything is STANDARD. Avoid running cost on other external accessories and consumables just to perform decontamination / sterilization cycle.
• The entire sterilization cycle period is 8 hours.

Latest Infrared CO2 Sensor Technology

• CARBOCAP® technology for heat durability and long term stability.
• CO2 probe remains inside the incubator chamber during sterilization cycle. This saves time and reduce the risk of cross contamination.
• Water vapor, dust, other chemicals, change in temperature, humidity, other gases and pressure do not affect the performance of the IR sensor.
• Internal pressure sensor improves accuracy and stability.
• With full temperature and pressure compensation.
• Sensor head is heated to prevent condensation.

Optimized Clean Chamber Design

• New ribbed design chamber allows installation of shelves without screws or pilasters.
• Minimize risk of contamination.
• Easy maintenance.
• Quick and easy to clean.
• More chamber space.

Complete Security System

• Multiple over-temperature protection system guarantee maximum sample, user and environment protection.
• All electrical components are UL recognized.
• Electrical circuit protection is in accordance with UL requirements.
• PIN code prevents unauthorized access on screen menu and functions.
• Magnetic Door Lock System
• Manually locks during normal operation to protect samples.
• Automatically locks during high heat sterilization cycle to protect users.
• Inlet Door Latch function turns off pump, gas supply, and heating functions when the door is opened.

CelTouch Screen Control System

• Big, clear, and easy-to-read parameter display
• Easy to follow on-screen icon menus
• Actual Data Graph, Data Logging functions, Event Logs and Alarm Functions are easily seen on the screen
• Easy download of data log files using USB Write menu
• Can be performed with gloved fingers
• Multiple language selections: English, German, Spanish, French, Italian

Active Humidification System

• In order to provide optimal environmental conditions for cell growth that requires specific relative humidity, the CelSafe® CO2 incubator with optional active humidity control allows user to actively control humidity from up to 95%. Natural humidification method is from 85% to 90%.
• Water reservoir is located at the back of the chamber. No more water pan.
• Heats up and maintain water reservoir based on RH control.
• Water inlet valve is triggered by water level sensor.
