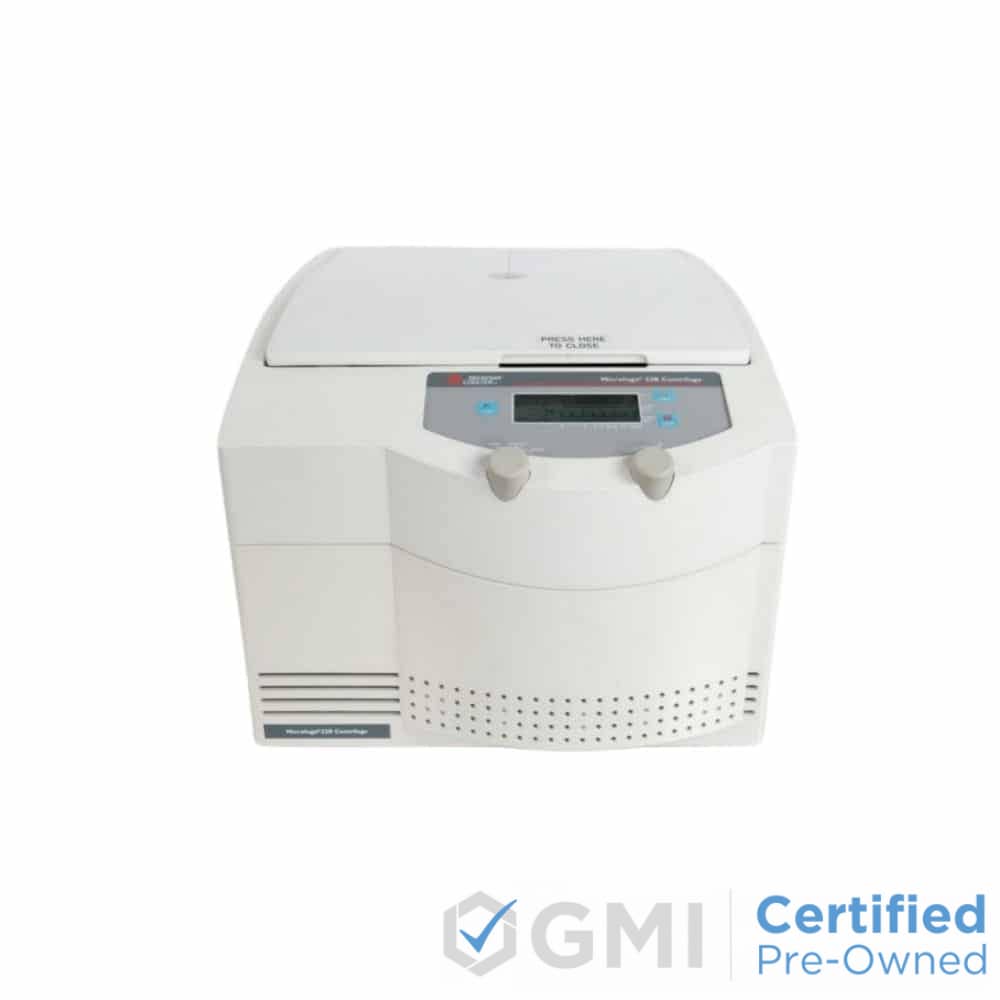

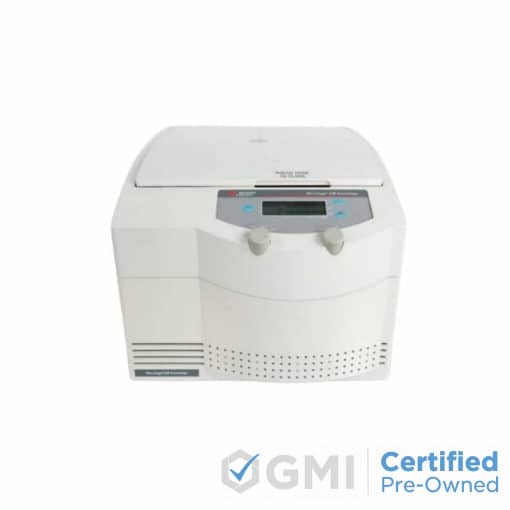

Beckman Coulter Microfuge 22R Refrigerated Microcentrifuge
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?Product Description
- Fast and Cool – High g -Force for Fast and Optimal Pelleting
- Maintenance-free rotor spins up to 14,000 rpm (21,920 x g)
- Ideal for pelleting of DNA, RNA and Proteins; Cell Virus Isolation
- Maintains 4º C at maximum speed to protect precious samples
- Stand-by cooling
- Easy-to-use control knobs and easy-to-read display
- Comes complete with a 24-place aerosol-tight, autoclavable fixed-angle rotor
- Quiet operation — < 58 dB Interchangeable Rotors for Application Flexibility
- All rotors come standard with aerosol-tight lids minimizing contamination from broken or leaking tubes
- All rotors are autoclavable at 121°C
Technical Specifications
| Ventilation Clearances Required: | 7.6 cm (3.0 in) Sides and Rear |
| Humidity Restrictions: | < 80% (noncondensing) |
| Ambient Temperature Range: | 4 to 35°C ambient |
| Speed Range: | 500 to 14,000 rpm |
| Set Time: | to 30 min, continuous run (8), or pulse (short run) |
| Set Temperature: | -10 to +40°C in 2°C increments |
| Noise Level 1 Meter in Front of Centrifuge: | 58 dBA |
| Maximum Heat Dissipation into Room under Steady-State Conditions: | 0.63 kW (2,150 Btu/hr) |
| Approximate Deceleration Time: | 19 seconds from max speed |
| Approximate Acceleration Time: | 18 seconds to max speed |
| Weight | 96 lbs |
| Dimensions | 23 x 15 x 12 |
| Power | 120V, 7amp |
Technical Specifications
| Model | Beckman Allegra 6R | Beckman Allegra 6 |
Beckman Allegra 6KR
|
| Refrigeration | Yes, CFC-Free | No | Yes |
| Maximum Speed (rpm) | 6,100 (Fixed-angle) 3,750 (Swinging-bucket) |
6,100 (Fixed-angle) 3,750 (Swinging-bucket) |
4,730 rpm |
| Maximum g-Force (x g) | 5,710 (Fixed-angle) 3,210 (Swinging-bucket) |
5,710 (Fixed-angle) 3,210 (Swinging-bucket) |
4,550 |
| Maximum Capacity (mL) | 4 x 750 | 4 x 750 | |
| Run Time | Timed (0-30 min), Hold |
Timed (0-30 min), Hold |
30 min timer, hold
|
| Drive | Direct, Brush Type | Direct, Brush Type |
Direct drive, Brushes Type
|
| Noise at Max Speed | 65 dBa | 65 dBa | < 60 dBA |
| Operating Temperature (ºC) | -5 to +25 | Ambient | - |
| Set Temperature Range (ºC) | -10 to +40 | N/A | -5° C to 25° C |
| Dimensions (cm, H x W x D), Lid Closed |
39.4 x 76 x 66 | 40.6 x 54.6 x 66 | - |
| Dimensions (in, H x W x D), Lid Closed |
15.5 x 30 x 26 | 16 x 21.5 x 26 | 67.3 x 54.6 x 66 |
| Weight without Rotor | 75.8 kg (167 lbs) | 51.7 kg (114 lbs) |
90.3 kg (200 lbs)
|
