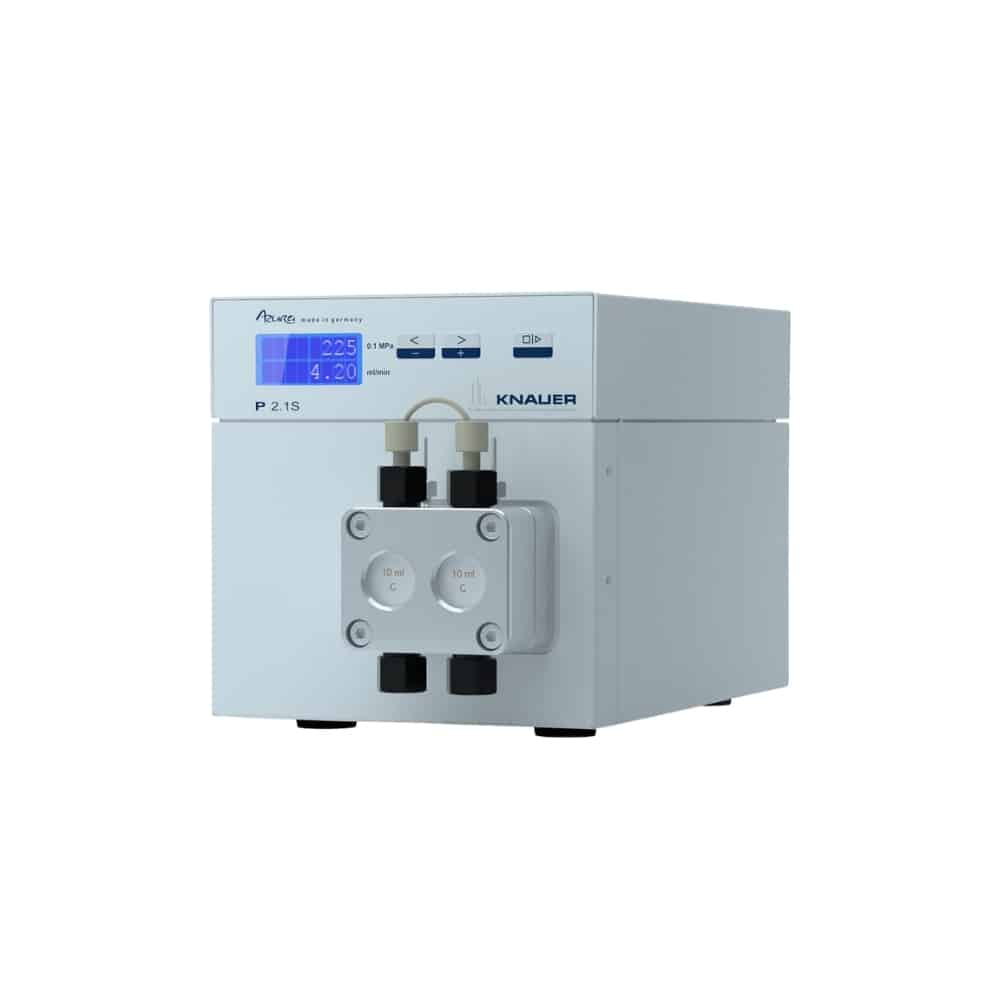

AZURA P 2.1S – Compact pump without pressure sensor & 50 ml/min Hastelloy C pump head – APG90FC
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
- Max. flow rate 50 ml/min
- Flow rate range 0.01−50 ml/min
- Flow rate increment 0.01
- Maximum delivery pressure [psi] 2180 psi
- Maximum delivery pressure [MPa] 15 MPa
- Maximum delivery pressure [bar] 150 bar
- Pump head materials Hastelloy® C-276
- Maximum viscosity 100 cp
- Liquid temperature range 4−60 °C (39.2−140 °F)
- Gradient Isocratic
- 2-Year Warranty Included
With its small footprint, the compact dual piston pump AZURA P2.1S can be used for a wide range of laboratory tasks. A pressure rating of up to 400 bar and chemical resistance to a wide range of eluents make it the perfect choice for LC and dosing applications. Pump heads with maximum flow rates of 10 and 50 ml/min are available.
Moreover, its exchangeable pump head allows adaptation of the pump for delivery of aggressive media and bioinert applications. The pump head can be heated or cooled with optional accessories.
General information
| Max. flow rate | 50 ml/min |
|---|---|
| Flow rate range | 0.01−50 ml/min |
| Flow rate increment | 0.01 |
| Maximum delivery pressure [psi] | 2180 psi |
|---|---|
| Maximum delivery pressure [MPa] | 15 MPa |
| Maximum delivery pressure [bar] | 150 bar |
| Pump head materials | Hastelloy® C-276 |
| Maximum viscosity | 100 cp |
| Liquid temperature range | 4−60 °C (39.2−140 °F) |
| Gradient | Isocratic |
| Leak management | no |
| Wetted materials | FFKM, GFP (graphite fiber reinforced PTFE), sapphire, ruby, Zirconium oxide, Hastelloy® C, KEL-F® (PCTFE) |
| Pump features | Piston seal wash, Standalone control and programming, Wetted parts fully exchangeable by user |
Detailed information
| Best working conditions | 1.0−40.0 ml/min |
|---|---|
| Continuous working conditions | 3−25 ml/min |
| Flow rate accuracy | ± 5 % |
| Flow rate accuracy conditions | measured at 5-50% of flow range using ethanol/water 10:90 |
| Flow rate precision | < 0.5% RSD |
| Flow rate precision conditions | measured at 1 / 5 ml/min using ethanol/water 10:90 |
| Pump type | Ultra-compact high pressure pump |
| Pulsation compensation | no |
| Active piston seal wash | no |
| Piston seal washing | yes |
| System protection | Imin and Imax adjustable |
| Pump Outlet thread | Female UNF 10-32 (coned) |
| Pump head inlet (standard) | 1/4″-28 UNF (flat bottom) |
| Pump head outlet (standard) | 10−32 UNF (coned) |
Communication
| Interfaces | display |
|---|---|
| Control | RS-232; analog; button on device |
| Analog inputs | 0−10V |
General
| Power supply | 100−240 V; 50−60 Hz |
|---|---|
| Dimensions | 121 x 129 x 220 mm |
| Weight | 2.3 kg |
| Leak sensor | no |
| Ambient conditions | temperature range: 10–40 °C; 50–104 °F air humidity: below 90 % humidity (non condensing) |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
