(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 50 mL

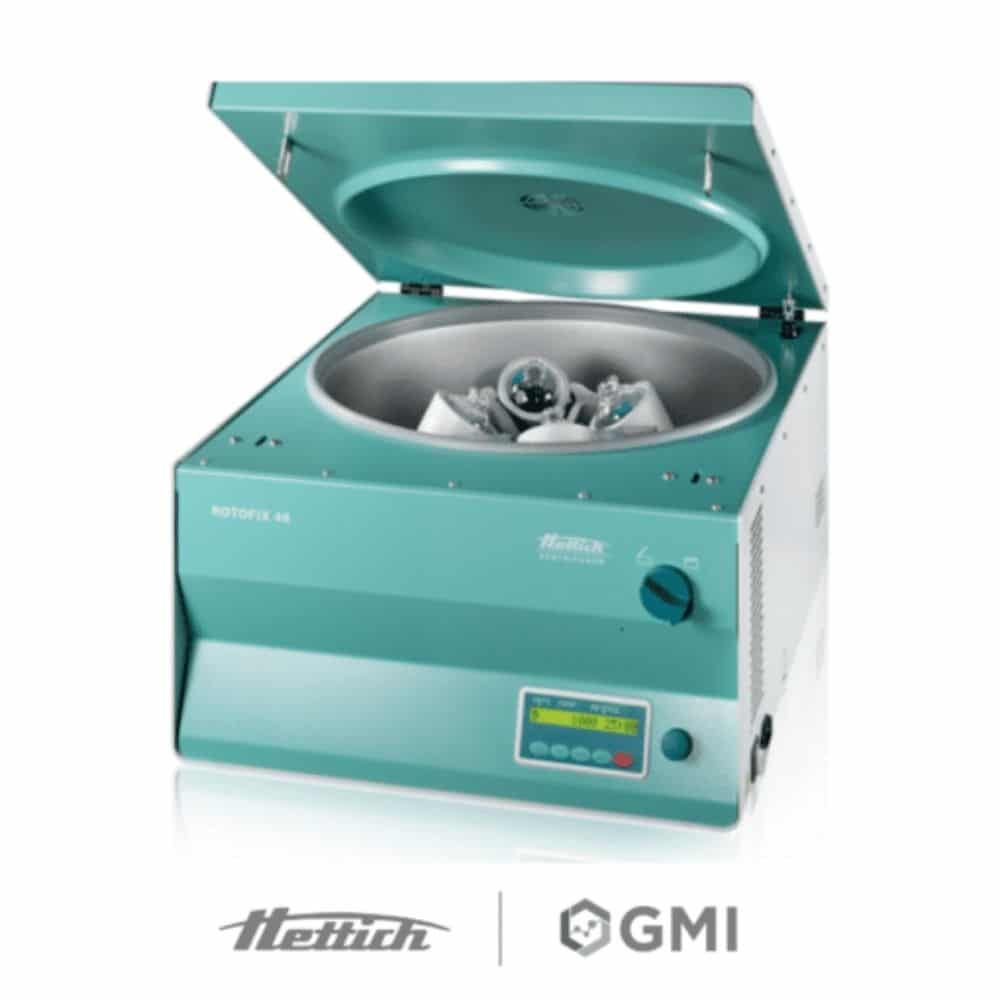

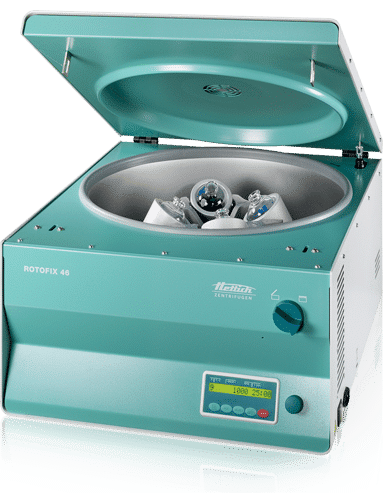

Hettich Rotofix 46 | 46H (Heated) Benchtop Centrifuge
Price range: $6,630.00 through $11,810.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Max. Capacity
4 x 290 ml | 4 x 100 ml
Max. RPM/RCF
4,000/3,095 | 2,000/984
Temperature Control
Ambient | +10 °C to +90 °C (46 H)
INDUSTRIAL | ENVIRONMENTAL
Five Year Warranty
Quiet Operation
Functional Design
Enhanced Safety
Technical Specifications
| Model | ROTOFIX 46 | ROTOFIX 46 H |
| Max. Capacity | 4 x 290 ml | 4 x 100 ml |
| Max. RPM/RCF | 4,000/3,095 | 2,000/984 |
| Temp. Control | Ambient | +10 °C to +90 °C |
| Dims. (HxWxD) mm | 345 x 538 x 647 |
345 x 538 x 647
|
| Dims. (HxWxD) in | 14 x 21 x 25 | 14 x 21 x 25 |
| Weight (kg) | 60 | 60 |
| Weight (lbs) | 132 | 132 |
| Power Supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Specialty | Exchangeable |
Packages
ROTOFIX 46 | 46H Application Packages
INDUSTRIAL | ENVIRONMENTAL
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE – 50
4170-10-0176 | 4170-10-0182
The ROTOFIX 46 ASTM Package 50 comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 50 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 50 | 45 x 130 | ≤ 2,000 | ≤ 984 |
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE – 100A
4170-10-0173 | 4170-10-0228
The ROTOFIX 46 ASTM Package 100A comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 58 x 161 | ≤ 2,000 | ≤ 984 |
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE – 100B
4170-10-0174 | 4170-10-0180
The ROTOFIX 46 ASTM Package 100B comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 44 x 168 | ≤ 2,000 | ≤ 961 |
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE – 100C
4170-10-0227 | 4170-10-0181
The ROTOFIX 46 ASTM Package 100C comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 37 x 200 | ≤ 2,000 | ≤ 961 |
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE – 100D
4170-10-0229 | 4170-10-0230
The ROTOFIX 46 ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 45 x 165 | ≤ 2,000 | ≤ 961 |
ROTOFIX 46 / ROTOFIX 46 H
CHROME BATH PACKAGE
4170-10-0178 | 4170-10-0184
The ROTOFIX 46 Chrome Bath Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 30 | 24 x 151 | ≤ 2,000 | ≤ 917 |
ROTOFIX 46 / ROTOFIX 46 H
SCHLENK PACKAGE
4170-10-0186 | 4170-10-0185
The ROTOFIX 46 Schlenk Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Adapters
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 25 | 24 x 146.5 | ≤ 2,000 | ≤ 783 |
| 6 | 50 | 38 x 146.5 | ≤ 2,000 | ≤ 805 |
ROTOFIX 46 / ROTOFIX 46 H
BABCOCK PACKAGE
4170-10-0177 | 4170-10-0183
The ROTOFIX 46 Babcock Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets, adapters and inserts. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Inserts
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | — | 165 (height) | ≤ 934 | ≤ 215 |
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
