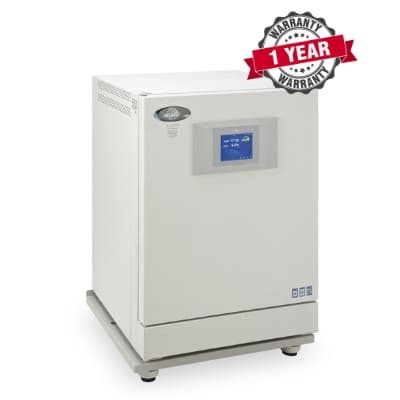

In-VitroCell ES NU-5700 5.65 cu. ft. (160L) Direct Heat CO2 Incubator
Model NU-5700 is a CO2 Incubator uses direct heating elements that surround the growth chamber to maintain set point temperature. Model NU-5700 comes standard with a dual wave infrared (IR) sensor to control CO2 gas levels creating optimal growth conditions at or near body temperature.
Quality and reliability have been carefully designed and built into the NuAire ES NU-5700, offering the ideal in-vitro environment where optimized tissue cell growth is of the utmost importance. Incredibly reliable and advanced computer technology provides the ability to precisely manage the CO2 gas control system and temperature to achieve the precise requirements for sensitive cell cultures.
Constant Contamination Control
Closed Loop HEPA Filtration
Using the rigorous standards of an ISO Class 5 Clean Room’s environment, the In-VitroCell™ CO2 incubators have been engineered to keep contamination to a minimum. All gas and air are passed through 99.99% HEPA filters before entering the growth chamber, ensuring a sterile environment. To help prevent cell desiccation, chamber air cycles through one air change at 30-minute intervals. An extremely sensitive sensor bay constantly monitors the chamber environment, making necessary adjustments to maintain consistency.
Coved Interior Corners
Contaminants are quickly eliminated from the interior growth chamber, thanks to the rounded corners and smooth surface.
NuTouch (Touchscreen) Electronic Control System (ECS)
Four different languages (English, French, Spanish and German) and a 5×7 inch (127×178 mm), standard on each In-VitroCell incubator allow users to easily view and control the system with the touch of a finger. Quickly access system parameters such as set points and monitor temperature history and carbon dioxide graphs right on the screen (USB download capable). Readily update the chamber environment with preset service settings. Continuously monitor system status on the color screen while the incubator is in standby mode, making chamber adjustments or sampling air.
Sensitivity and Accuracy of Gas Control
A highly selective single source dual wave infrared (IR) sensor allows for incredibly sensitive and accurate CO2 control (within ±0.1%). Located in the sensor bay, this microprocessor-based IR sensor’s wavelengths are specifically absorbed by CO2, making it impervious to input from other elements such as water vapor, allowing for a highly stable output and minimizing the need for frequent calibrations.
Optimum uniformity is achieved through the use of R5 insulation-wrapped foil heating elements surrounding a 5.7 cubic foot growth chamber. Specially designed dual temperature sensor probes continuously monitor and send information to the NuTouch ECS, making any needed adjustments. Temperature uniformity is maintained throughout the chamber with accuracy to within ±0.3°C.
Quick heat recovery at 0.12°C per minute allows a rapid return to set point temperature.
Through the use of a stainless steel pan filled with distilled water (must not be purer than 1 mega-ohm) and placed on the chamber bottom, a relative humidity of up to 90% can be achieved and maintained.
|Exterior Dimensions (W x D x H)||25.5 x 27.5 x 36.188 in|
648 x 699 x 894 mm
|Foot Print (W x D)||22.625 x 20.825in|
575 x 530 mm
|Interior Dimensions (W x D x H)||20.25 x 20.678 x 24 in|
514 x 525 x 610 mm
|Shelf Dimensions (W x D)||18 x 18.75 in|
457 x 476 mm
|Shelves Supplied (Standard)||Quantity 4|
|Maximum Shelf Capacity||16|
|Maximum Weight Capacity||25 lbs (11.34 kg) per shelf|
125 lbs (56.7 kg) per incubator
|Water Pan Dimensions (W x D x H)||10 x 1.5 x 12 in|
254 x 38 x 305 mm
|Water Pan Capacity||2 Liters (Maximum)|
1.5 Liters (Recommened Fill)
|Net Weight||225 lbs|
|Control Range:||5°C to 55°C (37°C default) (5°C above ambient to 30°C maximum ambient)|
|Set-Point Range:||5°C to 55°C (37.0 Default)|
|Uniformity:||±0.3°C @ 37°C|
|Recovery:||0.12°C/min. on Average|
|Door and Perimeter Heater Control Logic:||Proportional base duty cycle based on Temperature set point and -20 to +20% manually adjustable to adapt to ambient conditions.|
|Temperature Sensor Type:||Precision Integrated Circuit|
