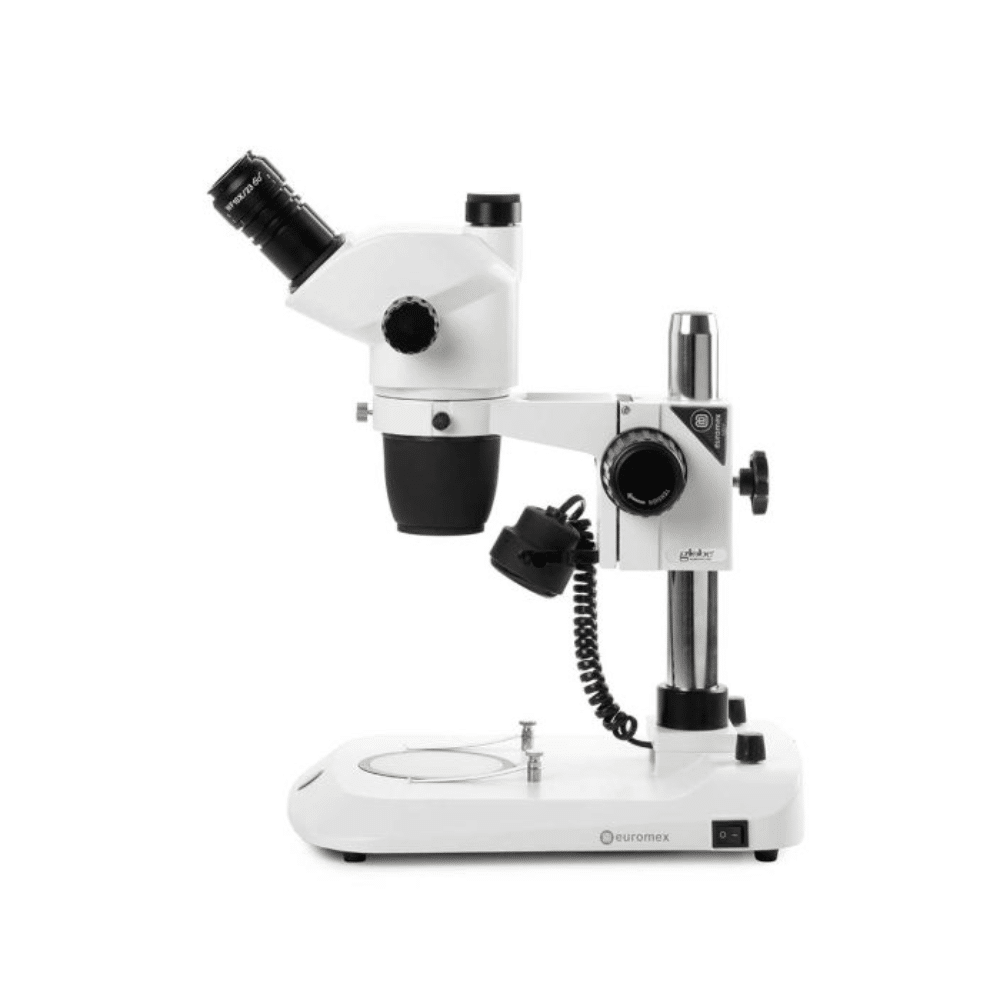

NexiusZoom Series Stereo Microscopes

Product Description

• Binocular and trinocular heads with HWF 10x/22mm or HWF 10x/23mm eyepieces (EVO) for comfortable and immersive viewing experiences.
• Double 3W LED illumination, ensuring optimal illumination for your specimens.
• Large working distance, allowing ample space for sample manipulation and preparation.
• Zoom ratio of 1:8.4, offering a remarkable magnification range from 6.5x to 55x. Capture the finest details and explore the microscopic world with precision.
• Ergonomic stands designed to provide optimal comfort during extended observation sessions.
• Configurations available with magnification capabilities up to 220x, catering to a wide range of applications.
• CE certified, guaranteeing compliance with rigorous international standards for safety and quality.
• Backed by a 10-year warranty, providing peace of mind and long-term support for your investment.

EYEPIECES

• The NexiusZoom EVO series are supplied with a pair of HWF10x/23mm eyepieces

HEAD

• Trinocular heads with 45° inclined tubes. Both eyepieces with ±5 diopter adjustments
• Interpupillary distance adjustable between 54mm and 75mm. The trinocular head is supplied with a fixed light path beamsplitter (50:50).
• The NexiusZoom EVO models are equipped with click-stops

OBJECTIVES

• The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD 110mm

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

MAGNIFICATIONS

Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo:

STANDS

• Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)
• Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)

All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

 ILLUMINATION

• The 3W transmitted and incident LED illuminators with internal power supply 100-240VAC operation. Both illuminators can be used simultaneously, and the light intensities can be adjusted separately

APL (Antimicrobial Protection Layer)

• Developed with a protective microbe-resistant coating, the NexiusZoom microscope series utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment

PACKAGE CONTENT

• Supplied with power cords, dust cover, a spare fuse, user manual. All packed in a polystyrene box
