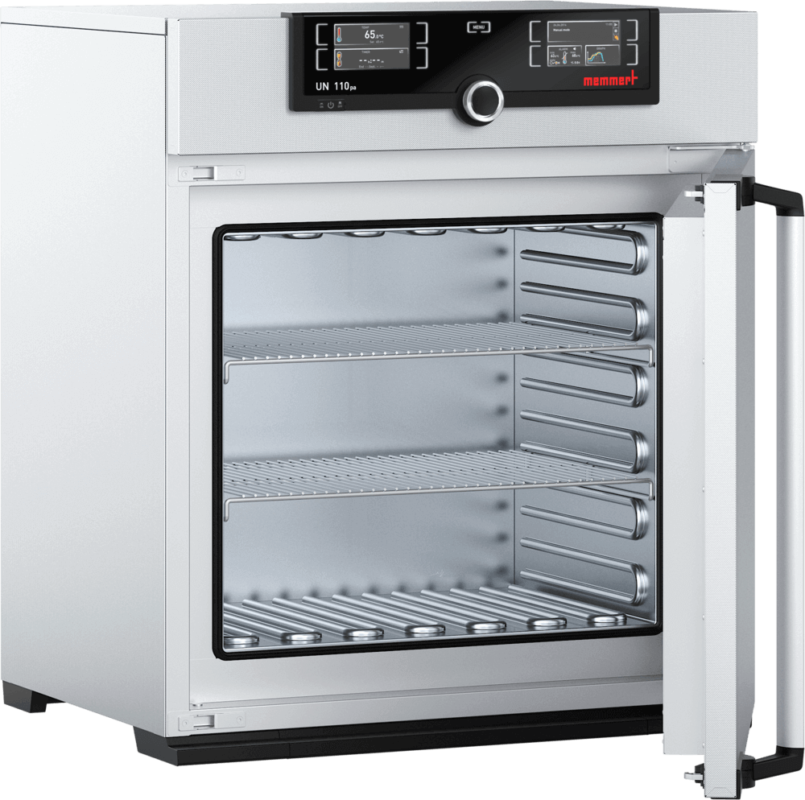

Memmert Paraffin Ovens (UNPA)

Price range: $4,438.00 through $6,978.00

Model

Clear

SKU: N/A Categories: Paraffin Ovens, Ovens Brand: Memmert

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation

Description
Additional information

Product Description

Designed for high-precision temperature control of embedding medium like paraffin wax. The range of functions and thermal safety of the paraffin oven are designed specifically for reliable sample preparation in histology, forensics or microbiology.

5 model sizes (32 to 161 liters volume)
Temperature range +30 °C to +80 °C
Model variant: TwinDISPLAY
High degree of thermal safety through multiple overtemperature protection
No feed or exhaust air, therefore an almost gas-tight chamber

Designed for safety, high-precision temperature control of embedding medium like paraffin or wax.

Stainless Steel Construction

Stainless steel construction inside and out. Memmert appliances feature welded/ rounded edges within the stainless steel chamber for a hygienic and easy-to-clean interior.

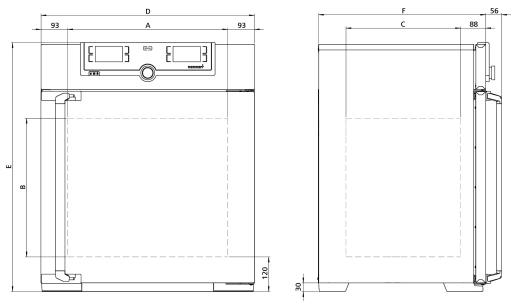

Technical Specifications

Model sizes/Description		30	55	75	110	160
Stainless steel interior	Volume approx. l	32	53	74	108	161
	Width (A) mm	400			560
	Height (B) mm	320	400	560	480	720
	Depth (C) mm	250	330		400
	Max. number of grids/shelves number	3	4	6	5	8
	Max. loading per grid/shelf kg	20
	Max. loading of chamber kg	60	80	120	175	210
	Max. loading per slide-in drip tray kg	1.5			3
	Max. loading per bottom drip tray kg	1.5			3
Textured stainless steel exterior	Width (D) mm	585			745
	Height (E) mm	704	784	944	864	1104
	Depth (without door handle, depth of handle +56 mm) (F) mm	434	514		584
Standard equipment	Stainless steel grids, electropolished	1		2
Standard equipment	Standard works calibration certificate (measuring point chamber center)	80
Temperature	Working temperature range °C	at least 5 above ambient temperature to +80
	Setting temperature range °C	20 to 80
	Setting accuracy °C	0.1
Further data	Electrical load at 230 V, 50/60 Hz approx. W	1600	2000	2500	2800	3200
Further data	Electrical load at 115 V, 50/60 Hz approx. W	1600	1700	1800
Packing data	Net weight approx. kg	45	55	66	75	96
	Gross weight (packed in carton) approx. kg	61	74	85	100	122
	Width approx. mm	660	730		830
	Height approx. mm	890	950	1130	1050	1300
	Depth approx. mm	650	670		800

SCHEDULE A free CONSULTATION

The more complex twin display allows users to control every aspect of equipment functionality. Even complex processes such as multiple overtemperature protection, visual and acoustic alarm as well as automated alarm messages can be programmed quickly and easily.
