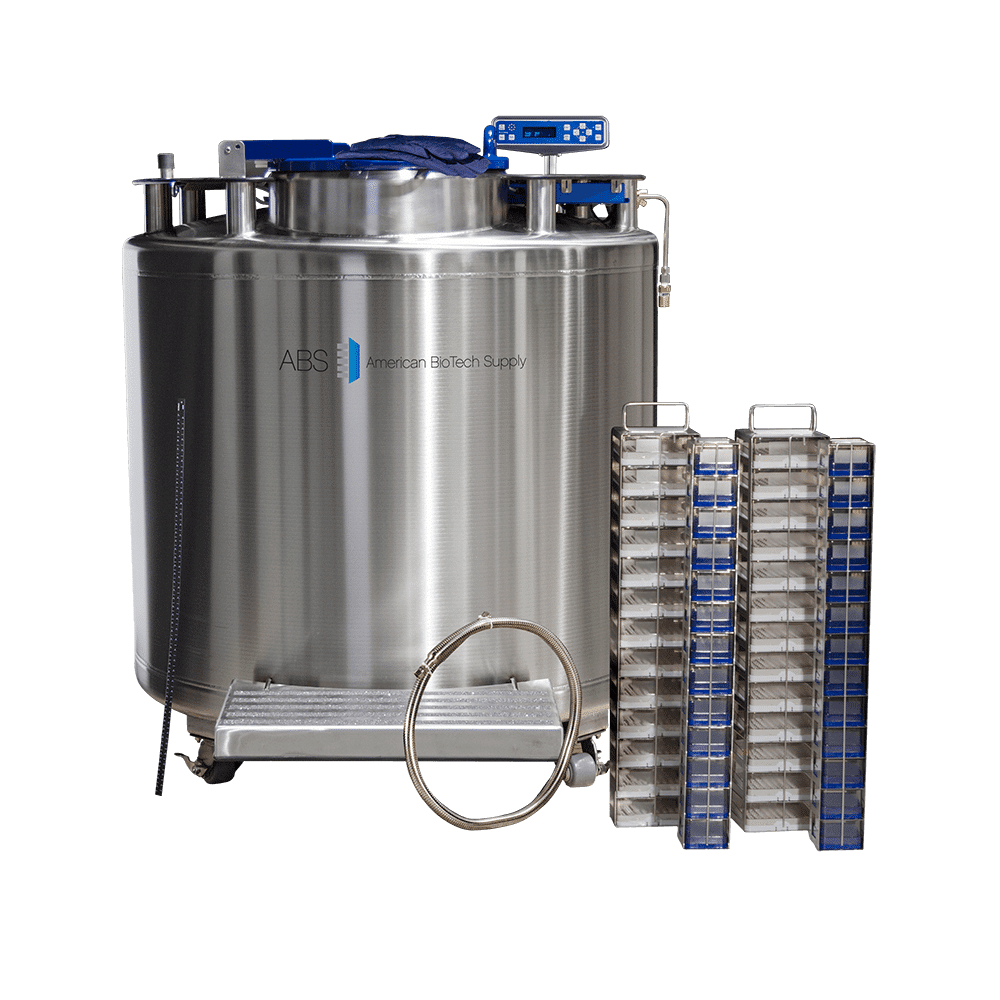

KryoVault System, 79,300 Vials Polycarbonate Package System
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The ABS KryoVault is engineered to provide cryogenic temperatures throughout the tank well below the critical -135°C range. With only a few inches of liquid, vapor temperatures approaching the actual -196°C temperature of LN₂ can be maintained at the highest shelf. The unique restricted neck opening design, with double-hinged lid, brings liquid consumption to one of the lowest rates in the industry.
Every KryoVault System comes standard with: 6ft. stainless-steel armor-plated transfer hose, 1/3 parts and labor warranty, casters, folding step, inventory carousel, keyed lid lock, LN2 measuring rod, flat stainless-steel work surface and the Sentry Plus LN₂ Controller.
KryoVault package systems include: KryoVault Tank, Sentry Plus LN₂ Controller, stainless steel rack inventory system, transfer hose, CryoGloves, LN₂ measuring rod, and either fiberboard boxes (25 cell, 81 cell, 100 cell, or custom) or polycarbonate boxes (25 cell, 81 cell, or 100 cell).
Details
- SENTRY PLUS LN₂ CONTROLLER
- CONTROLLER SURGE PROTECTION
- STAINLESS STEEL OUTER & INNER TANK WRAPPED WITH SUPER INSULATE
- UL-LISTED TRANSFORMER
- STAINLESS STEEL ARMOR-PLATED TRANSFER HOSE
- HINGED LID WITH LOCKING PROVISION & PROTECTIVE BOOT
- FLAT STAINLESS STEEL WORK SURFACE
- INNER ALUMINUM INVENTORY CAROUSEL FOR CONVENIENT SAMPLE ACCESS
- KEYED LID LOCK
- FOLDABLE SKID FREE STEP
- LOW PROFILE LOCKABLE CASTERS
- LIQUID LEVEL MEASURING RULER
- (58) 13-2 TOWER RACKS (13 BOXES PER RACK)
- (12) 13-2 MINI TOWER RACKS (13 MINI BOXES PER RACK)
- (754) 81/100 CELL POLYCARBONATE BOXES
- (156) 25 CELL MINI POLYCARBONATE BOXES
- ONE PAIR OF CRYOGLOVES
- STAINLESS-STEEL ARMOR-PLATED TRANSFER HOSE
- ONE-YEAR WARRANTY ON ALL PARTS AND LABOR
- THREE-YEAR VACUUM WARRANTY
Specifications
- TOTAL VIAL CAPACITY (2 ML VIAL) – 79,300
- TOTAL BAG CAPACITY (250 ML BAG) – 1920
- LN2 CAPACITY (VAPOR PHASE) – 137
- LN2 CAPACITY (LITERS) – 1269
- STATIC EVAPORATION RATE* (LITERS/DAY) – 15
- INPUT VOLTAGE – 120 V
- INPUT CURRENT (MAX) – 1.75 AMP
- INPUT CURRENT (CONTINUOUS) – 0.5 AMP
- FREQUENCY – 50/60 HZ
- OVERALL HEIGHT** (MM) – 1346.2
- USABLE HEIGHT (MM) – 762
- EXTERIOR DIAMETER (MM) – 1511
- INTERNAL DIAMETER (MM) – 1397
- NECK DIAMETER (MM) – 622
*STATIC EVAPORATION RATE AND STATIC HOLDING TIME ARE NOMINAL. ACTUAL RATE MAY BE AFFECTED BY THE NATURE OF THE CONTENTS, ATMOSPHERIC CONDITIONS, CONTAINER HISTORY AND MANUFACTURING TOLERANCES.
**OVERALL HEIGHT DOES NOT INCLUDE CONTROLLER MODULE
Controller
- TEMPERATURE DISPLAY IN USER ADJUSTABLE SCALE: °C, °F, °K, °R
- BATTERY BACK UP, CAPABLE OF MAINTAINING OPERATION DURING POWER LOSS, UP TO 5 DAYS
- ENHANCED LEVEL ACCURACY WITH 8 DIRECT READ SENSORS
- LARGE FORMAT LCD DISPLAY
- COMPREHENSIVE ALARM PACKAGE (AUDIBLE, VISUAL AND REMOTE)
- LEVEL, HIGH AND LOW
- TEMPERATURE, HIGH AND LOW
- LID OPEN
- POWER FAILURE
- VALVE STUCK OPEN
- SENSOR FAILURE
- ALARM RINGBACK
- REDUNDANT LEVEL SENSOR SYSTEM
- OPERATION STATUS INDICATOR
- COMPREHENSIVE EVENT AND ALARM LOGGING (UP TO 500,000 EVENTS 15 MINUTE INTERVALS)
- ALL ALARM TYPES
- LID OPENINGS AND CLOSINGS
- POWER ON/OFF
- SETTING CHANGES
- SENSOR CHANGES
- ALARM MUTE
- PASS CODE CHANGE
- REMOTE MONITORING SYSTEM AVAILABLE
