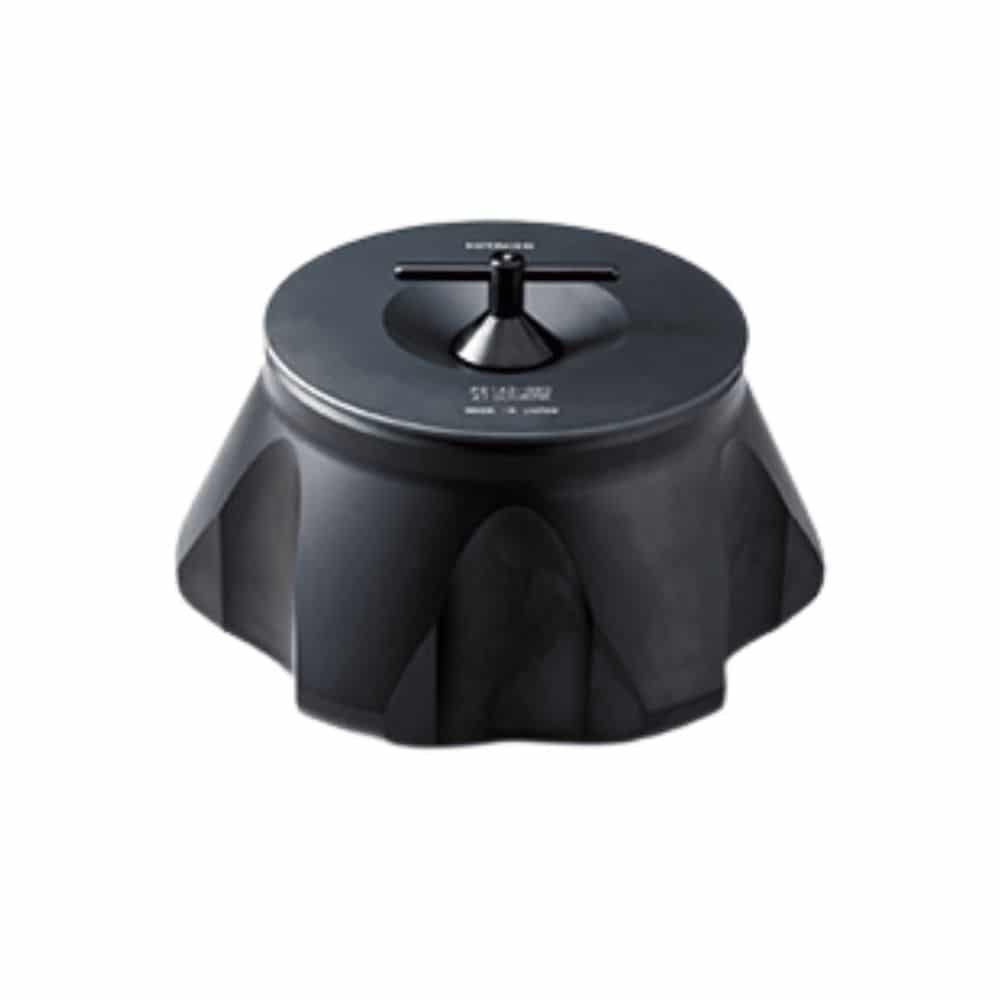

Himac P70AT(RP70AT) Fixed Angle Rotor　

Request Quote

Max. speed 70,000 rpm
Max. R.C.F. 505,000 × g
Rotor nominal capacity 40 mL × 8 = 320 mL
k factor 44
Weight 10.2 kg
SKU: 5266-10-0003 Category: Brand:
Not sure which configuration is right for your application?  Schedule a free consultation with our technical consultants today!
Schedule a consultation

Product Description

Himac P70AT(RP70AT) Fixed Angle Rotor Specifications:

Max. speed 70,000 rpm
Max. R.C.F. 505,000 × g
Rotor nominal capacity 40 mL × 8 = 320 mL
k factor 44
Weight 10.2 kg

Summary of Tubes

Tubes & Bottles & Microplates Adapter & Bucket Cap Maximum
Speed
(rpm)		 Maximum
R.C.F.
(xg)
Nominal
Vol.
(mL)		 Part No.

Name

 Size
(cm)		 Material Net Vol.
(mL)		 Part No.

Name

 Size
(cm)		 Material Number
of tubes		 Part No.

Name
40 345321A
(50pcs/set)

40PA Seal Tube

 φ2.6×9.4 PP 39 — — — — 485649
(1pcs/set)

E Space Cap

 70,000 505,000
329607A
(50pcs/set)

40PA Tube

 φ2.6×9.0 PP 32.5 — — — — S410532A
(1pcs/set)

S-40AL Cap

 70,000 505,000
35.7 — — — — 339673A
(1pcs/set)

E-TI2 Cap

 70,000 505,000
— — — — S305231A
(1pcs/set)

E3-AL Cap

 50,000 257,000
S411843A
(2pcs/set)

40TI Tube

 φ2.6×9.0 TI 35.7 — — — — 339673A
(1pcs/set)

E-TI2 Cap

 50,000 257,000
23.8 — — — — — 45,000 209,000
— — — — S412572A
(2pcs/set)

E-SS Lid (B)

 45,000 209,000
325471A
(50pcs/set)

40PE Tube

 φ2.6×8.9 PE 31.8 — — — — S410532A
(1pcs/set)

S-40AL Cap

 50,000 257,000
35.7 — — — — 339673A
(1pcs/set)

E-TI2 Cap

 40,000 165,000
— — — — S305231A
(1pcs/set)

E3-AL Cap

 40,000 165,000
— — — — S308090A
(1pcs/set)

E4-AL Cap

 40,000 165,000
S303279A
(50pcs/set)

40PET Tube

 φ2.6×9.0 PET 37 — — — — S305231A
(1pcs/set)

E3-AL Cap

 40,000 165,000
S412571A
(2pcs/set)

40SS Tube(B)

 φ2.6×9.0 SS 23.8 — — — — — 32,000 105,000
— — — — S412572A
(2pcs/set)

E-SS Lid (B)

 32,000 105,000
33 338457A
(10pcs/set)

33PC Thick-walled Tube

 φ2.6×8.9 PC 19.9 — — — — — 40,000 165,000
338458A
(10pcs/set)

33PA Thick-walled Tube

 φ2.6×8.8 PP 19.9 — — — — — 25,000 64,400
30 S308132A
(6pcs/set)

30PC Bottle (C3)

 φ2.9×10.6 PC 26 — — — — — 50,000 257,000
S310626A
(6pcs/set)

30PA Bottle (C)

 φ2.6×9.7 PP 26.3 — — — — — 45,000 209,000
330345A
(10pcs/set)

30PA Bottle

 φ2.6×9.7 PP 26 — — — — — 33,000 112,000
S308133A
(6pcs/set)

30PC Bottle (B3)

 φ2.6×9.7 PC 26 — — — — — 30,000 92,700
12 329606A
(50pcs/set)

12PA Tube

 φ1.6×7.6 PP 10.5 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 441399A
(1pcs/set)

C-AL Cap

 40,000 154,000
325751A
(50pcs/set)

12PC Tube

 φ1.6×7.6 PC 10.5 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 441399A
(1pcs/set)

C-AL Cap

 40,000 154,000
325470A
(50pcs/set)

12PE Tube

 φ1.6×7.5 PE 10.5 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 441399A
(1pcs/set)

C-AL Cap

 40,000 154,000
S303275A
(50pcs/set)

12PET Tube

 φ1.6×7.6 PET 11.4 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 S407404A
(1pcs/set)

C4-AL Cap

 40,000 154,000
326010A
(2pcs/set)

12SS Tube

 φ1.6×7.6 SS 8.1 — — — — — 40,000 154,000
10.5 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 441399A
(1pcs/set)

C-AL Cap

 34,000 111,000
336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 413312A
(1pcs/set)

C-SS Cap

 30,000 86,500
10 338455A
(10pcs/set)

10PC Thick-walled Tube

 φ1.6×7.7 PC 6.3 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 — 40,000 154,000
325952A
(10pcs/set)

10PC Bottle

 φ1.6×8.1 PC 8 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 — 40,000 154,000
S303922A
(6pcs/set)

10PC Bottle (B)

 φ1.6×8.2 PC 8.4 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 — 40,000 154,000
334105A
(10pcs/set)

10PA Bottle

 φ1.6×8.1 PP 8 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 — 35,000 118,000
338456A
(10pcs/set)

10PA Thick-walled Tube

 φ1.6×7.6 PP 6.5 336691A
(8pcs/set)

12A40 Adaptor

 2.6×8.5 POM-GF 1 — 30,000 86,500
6.5 329445A
(50pcs/set)

6.5PA Tube

 φ1.3×6.4 PP 5.8 336690A
(8pcs/set)

6.5A40 Adaptor

 2.6×8.5 POM 1 414429A
(1pcs/set)

B-AL Cap

 40,000 144,000
326415A
(50pcs/set)

6.5PC Tube

 φ1.3×6.4 PC 5.8 336690A
(8pcs/set)

6.5A40 Adaptor

 2.6×8.5 POM 1 414429A
(1pcs/set)

B-AL Cap

 40,000 144,000
S303274A
(50pcs/set)

6.5PET Tube

 φ1.3×6.4 PET 6.2 336690A
(8pcs/set)

6.5A40 Adaptor

 2.6×8.5 POM 1 474507A
(1pcs/set)

B2-AL Cap

 40,000 144,000
5 332245A
(50pcs/set)

5PA Tube

 φ1.3×5.2 PP 5 336689A
(8pcs/set)

5A40 Adaptor

 2.6×6.0 POM-GF 1 414429A
(1pcs/set)

B-AL Cap

 40,000 153,000
4.7 S303141A
(50pcs/set)

4.7PC Thick-walled Tube

 φ1.3×6.4 PC 3.3 336690A
(8pcs/set)

6.5A40 Adaptor

 2.6×8.5 POM 1 — 40,000 144,000
4 329561A
(50pcs/set)

4PA Tube

 φ1.1×6.0 PP 4 336688A
(8pcs/set)

4A40 Adaptor

 — POM 1 336711A
(10pcs/set)

A3-AL Cap

 40,000 151,000
3 S301599A
(50pcs/set)

3PC Tube

 φ1.3×5.1 PC 2.5 336689A
(8pcs/set)

5A40 Adaptor

 2.6×6.0 POM-GF 1 — 40,000 153,000



Standard accessories

478420 Rotor Packing 1AG115 2
433310 Handle Packing 1AV34 2
216715 Rotor Stand 1
84810601 Lubricate for Screw 1
483719 Silicone Grease (Vacuum Grease) 1
S205074 Tool Box (C) 1
999494 Logbook of Rotor *1 1
